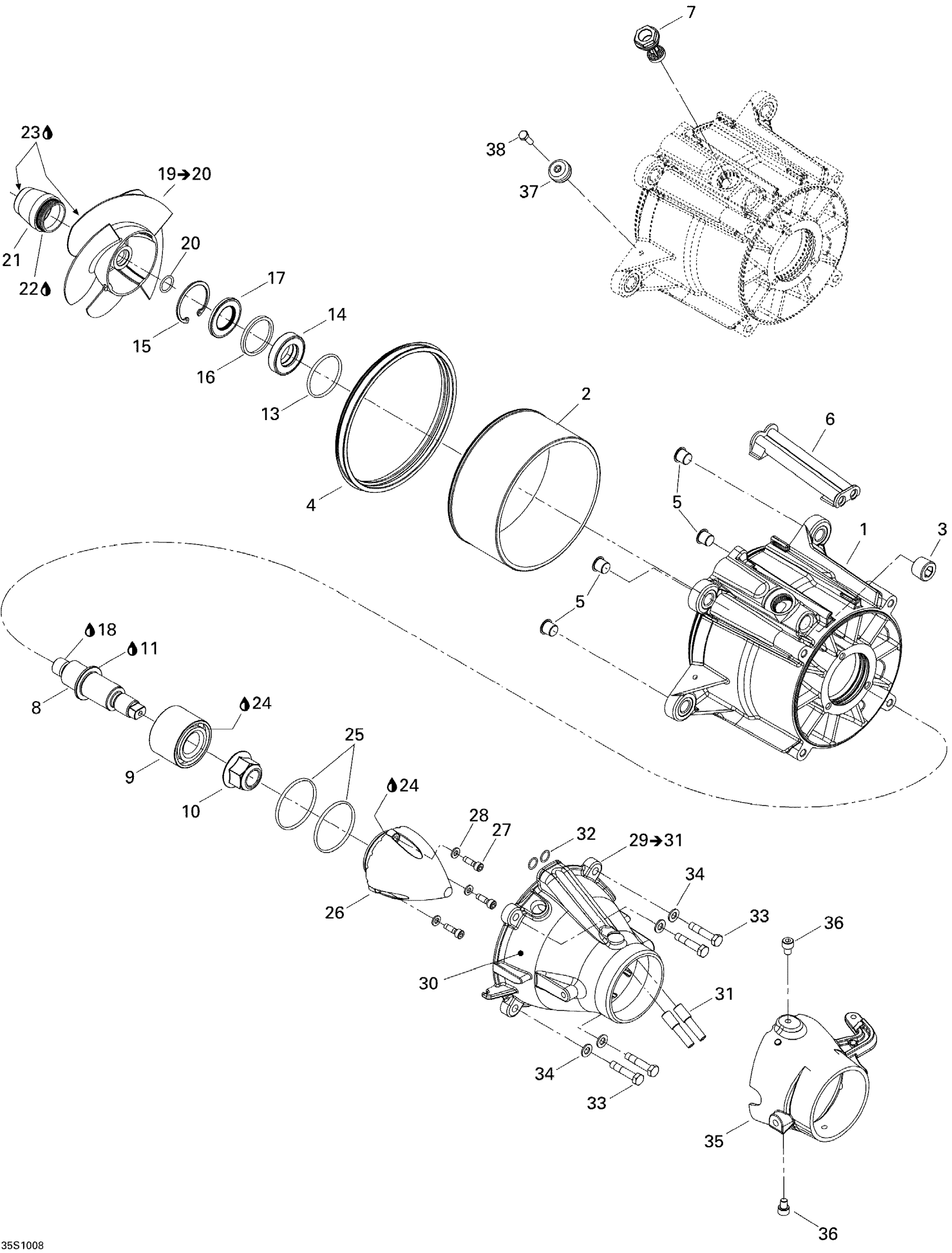

Sea-doo RXP-X 255 and 255 RS, 2010 Pump Diagram

#

Description
Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

2

Wear Ring

267000372

$84.99

3

Black, Plastic Plug

267000469

$7.59

4

Neoprene Seal

293200087

$12.63

5

Bushing

267000093

$9.59

6

Water Outlet

271000785

$3.80

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Impeller Shaft

267000388

$116.49

9

Angled Bearing This part replaces 267000030.

267000900

$80.99

10

Elastic Flange Nut M20

250100104

$12.66

11

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

13

O-Ring

293300090

$7.20

14

Seal

271002071

$33.99

15

Circlip

293370038

$8.79

16

Spacer

271001393

$8.59

17

Oil Seal

293200089

$19.99

18

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

19

Impeller Assy | Includes 19a to 19c, Port Side This part replaces 267000444.

267000994

$497.99

19

Impeller Ass'y This part replaces 267000442.

267000970

$497.99

20

O-Ring

293300114

$15.89

21

Guard

271002228

$12.99

22

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

23

Synthetic Grease, 400 G

293550010

Unavailable

24

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

25

O-Ring

293300086

$3.59

26

Impeller Cover

267000428

$18.49

27

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

28

Stainless Flat Washer M6

234061600

$0.33

29

Not Available As Spare Part - Friction Washer

Unavailable

30

VENTURI - Call your local BRP dealership | RXP

267000360

Unavailable

31

Siphon Tube

271001133

$10.99

32

O-Ring

293300013

$8.18

33

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

34

Stainless, Flat Washer 8 mm

234081600

$0.55

35

STEERING NOZZLE, BLACK - Call your local BRP dealership | RXP

267000550

Unavailable

36

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

37

Anode Zinc

271001813

$18.99

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47
