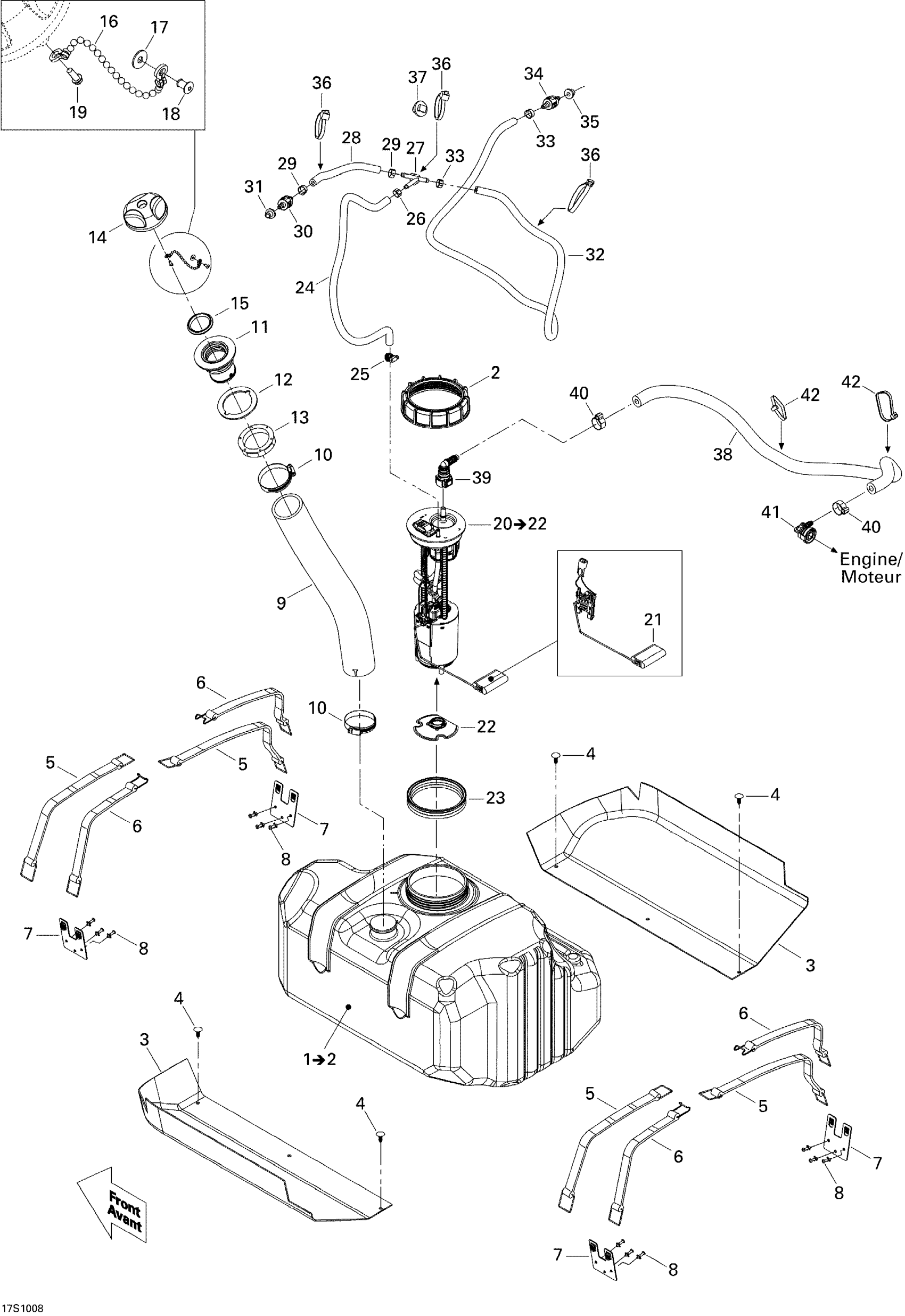

Sea-doo RXP-X 255 and 255 RS, 2010 02- Fuel System Diagram
#
Description
Price
1
FUEL TANK - Call your local BRP dealership | Includes 1 to 2
275500795
Unavailable
2
Special Nut M130
250100062
$21.99
3
RUBBER PAD - Call your local BRP dealership
293830094
Unavailable
4
Black, Dart
293730011
$0.99
5
Fuel Tank Strap
293850093
$21.99
6
Fuel Tank Strap
293850094
$22.49
7
STRAP CLIP - Call your local BRP dealership
293850066
Unavailable
8
Pop Rivet 3/16"
293150043
$2.09
9
FUEL FILLER NECK HOSE - Call your local BRP dealership
275500785
Unavailable
10
Norma Clamp
293650081
$12.18
11
Filler Neck, Fuel
275500231
$14.75
12
Gasket
293250029
$14.82
13
Filler Neck Nut, Fuel
211100012
$14.22
14
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
15
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
16
Fuel Cap Chain
275500974
$19.99
17
Flat Washer M3, Stainless
234032600
$0.55
18
Pop Rivet 1/8"
390407900
$1.49
19
Screw K40 X 10
241140060
$1.48
20
Fuel Pump Ass'y | Includes 18 to 20
275500779
$425.99
21
Sensor Lever
275500780
$224.99
22
Fuel Filter
270600113
$33.99
23
Gasket
293250173
$18.49
24
Was 275500549 Hose 1/4"
219704357
$194.99
25
Norma Clamp
293650084
$4.12
26
Oetiker Gear Clamp
293650025
$3.09
27
Y-Fitting
293710059
$9.69
28
HOSE 1/4 - Call your local BRP dealership
204300184
Unavailable
29
Oetiker Gear Clamp
293650025
$3.09
30
Check Valve
275500770
$57.99
31
Grommet
293720029
$1.59
32
Was 275500549 Hose 1/4"
219704357
$194.99
33
Oetiker Gear Clamp
293650025
$3.09
34
Check Valve
275500774
$57.99
35
Grommet
293720029
$1.59
36
Tie-Rap 180 mm
414115200
$0.11
37
Mount Dart
293730040
$1.04
38
HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership
219704395
Unavailable
39
Quick Attach 90°
275500700
$16.49
40
Oetiker Clamp
293650140
$2.69
41
Elbow Fitting 90°
293710105
$14.22
42
Tie-Rap 180 mm
414115200
$0.11
