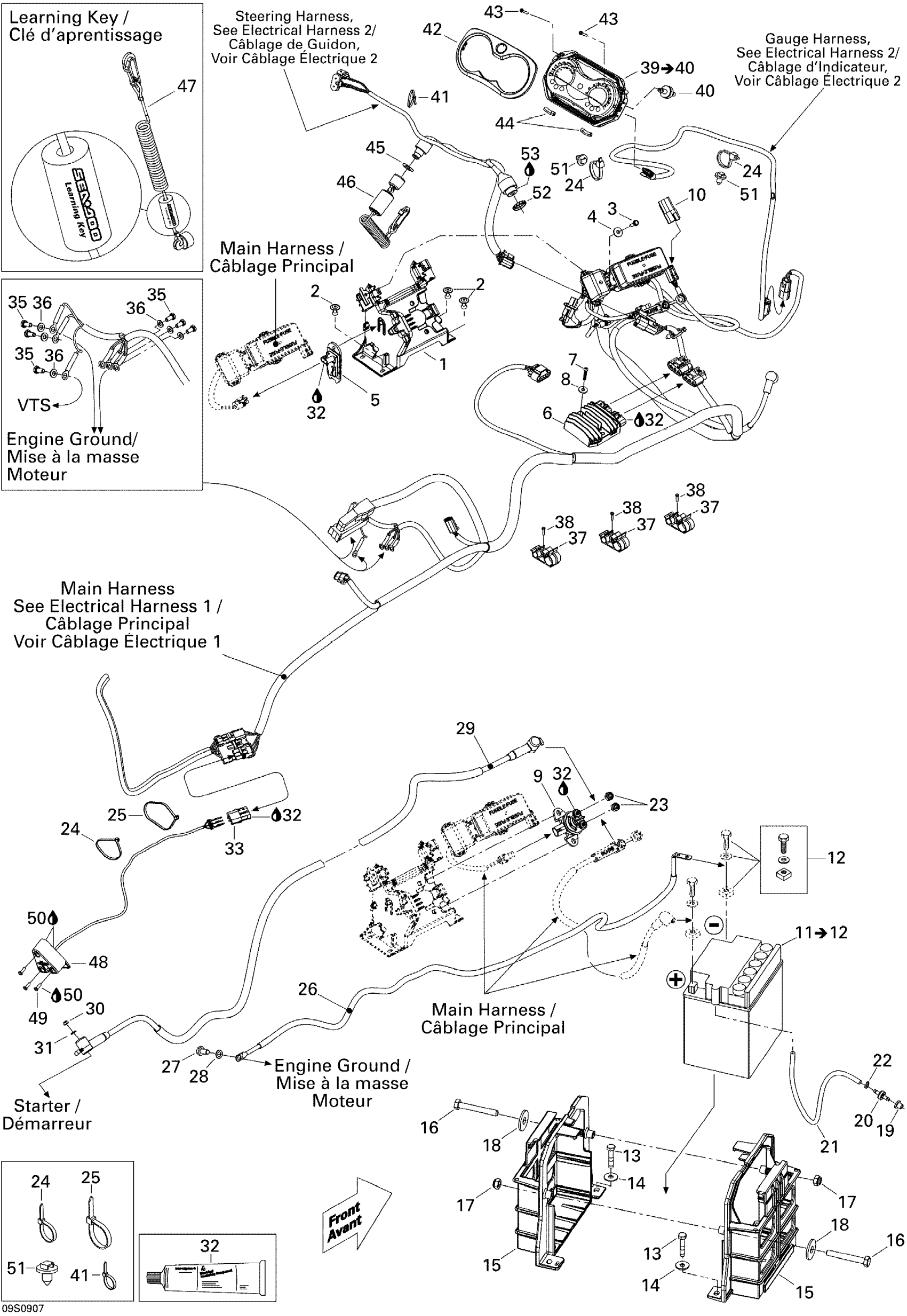

Sea-doo RXP-X 255 and 255 RS, 2009 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

$4.29

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Flat Washer M6, Stainless

234062600

$0.77

5

Interrupter T.O.P.S.

278001992

$74.49

6

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

7

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Starter Relay

278003012

$42.49

10

Diagnostic Connector

278002704

$19.49

11

Battery, 30 Amperes

278001882

$184.01

12

Battery Bolt Kit

250000282

$7.29

13

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

14

Flat Washer 8 mm, Stainless

234082600

$2.43

15

Battery Support

278003306

$20.99

16

Hex. Screw M6 X 45

207164560

$1.89

17

Elastic Stop Nut M6, Brass

232561200

$4.23

18

Flat Washer M6, Stainless

234062600

$0.77

19

Grommet

293720029

$1.59

20

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

21

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

Elastic Stop Nut M6, Brass

232561200

$4.23

24

Tie-Rap 180 mm

414115200

$0.11

25

Tie Wrap 368 mm

293750008

$1.04

26

GROUND CABLE ASS'Y - Call your local BRP dealership

278002177

Unavailable

27

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

28

Flat Washer 10 mm, Stainless

234000600

$1.46

29

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

30

Elastic Stop Nut M6, Brass

232561200

$4.23

31

Stainless Flat Washer M6

234061600

$0.33

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

35

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

36

Stainless Flat Washer M6

234061600

$0.33

37

RETAINER - Call your local BRP dealership

275500553

Unavailable

38

Hex. Flange Screw K40 X 16

241141660

$1.48

39

Digital Multifunction Gauge | SERV

278002270

$1.00

40

Check Valve

275500398

$10.99

41

Tie Wrap 142 mm

293750002

$1.25

42

Gauge Bezel, Chrome

278002144

$38.99

43

Hex. Flange Screw K40 X 25

241142560

$2.64

44

TRIM - Call your local BRP dealership

293830113

Unavailable

45

Safety Nut (DESS Switch)

278002963

$3.28

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

47

SAFETY LANYARD, LEARNING KEY - Call your local BRP dealership

278002406

$53.99

48

Speed Sensor

278001993

$169.99

49

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

$36.99

51

Mount Dart

293730040

$1.04

52

Plastic Nut

278002291

$9.32

53

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
