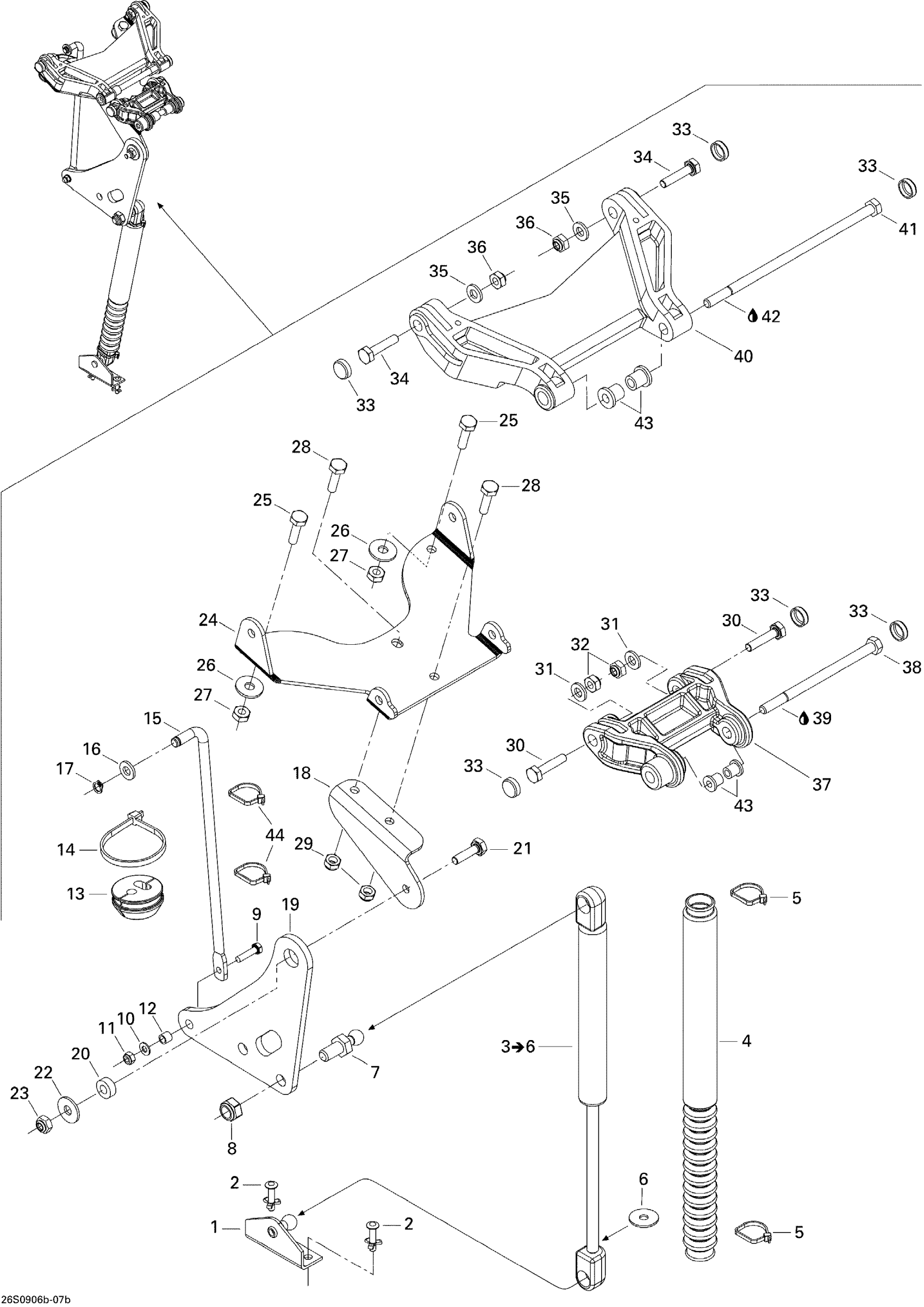

Sea-doo RXP-X 255 and 255 RS, 2009 09- Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3

Gas Shock Ass'y | Includes 3 to 6

269501167

$79.99

4

BELLOW - Call your local BRP dealership

269501168

Unavailable

5

Tie Wrap 94 mm | 4X4

293750001

$1.03

6

Flat Washer, Aluminum

250200033

Unavailable

7

Ball Head Stud

250300016

$14.81

8

Hex. Elastic Nut M8 Brass

232581200

$2.22

9

Hex. Screw M4 X 16 | Europe

207141660

$1.47

10

Flat Washer 4 mm, Stainless

234041600

$1.15

11

Elastic Stop Nut M4

232541600

$1.15

12

SPACER - Call your local BRP dealership

269501130

Unavailable

13

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

14

Tie-Rap 180 mm

414115200

$0.11

15

ROD - Call your local BRP dealership

269500842

Unavailable

16

Stainless Flat Washer M6

234061600

$0.33

17

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

18

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

19

LEVER - Call your local BRP dealership

269501576

Unavailable

20

SPACER - Call your local BRP dealership

269501172

Unavailable

21

Hex. Forming Screw M6 X 20

207162060

$1.29

22

Flat Washer M6, Stainless

234062600

$0.77

23

Elastic Stop Nut M6, Brass

232561200

$4.23

24

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

25

Hex. Screw M6 X 25

207162560

$1.47

26

Flat Washer M6, Stainless

234062600

$0.77

27

Elastic Stop Nut M6, Brass

232561200

$4.23

28

Hex. Screw M6 X 25

207162560

$1.47

29

Elastic Stop Nut M6, Brass

232561200

$4.23

30

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

31

Stainless Flat Washer M6

234061600

$0.33

32

Elastic Stop Nut M6, Brass

232561200

$4.23

33

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

34

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

35

Stainless Flat Washer M6

234061600

$0.33

36

Elastic Stop Nut M6, Brass

232561200

$4.23

37

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

38

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

REAR ARM - Call your local BRP dealership

269501483

Unavailable

41

Hex. Screw M6 X 100

230060060

$7.41

42

Loctite 243, 10 ml

293800060

$21.49

43

Sleeve

269500706

$4.65

44

Tie-Rap 180 mm

414115200

$0.11
