09- Body, Rear View

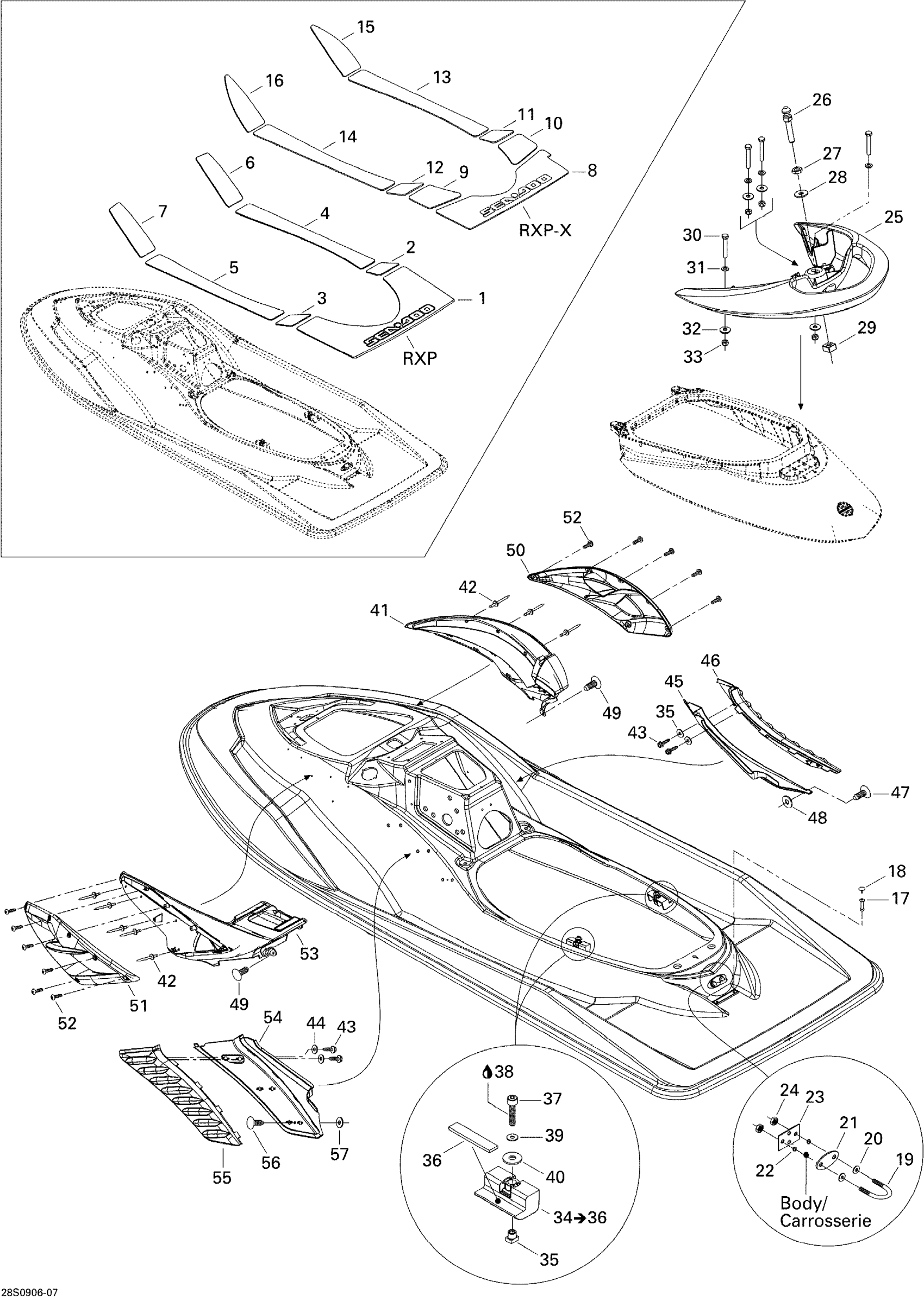

Sea-doo RXP-X 255 and 255 RS, 2009 09- Body, Rear View Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Platforme Carpet
291002534
Unavailable
9
RH Platforme Carpet
291002598
Unavailable
10
LH Platforme Carpet
291002599
Unavailable
11
RH Rear Carpet
291002535
Unavailable
12
LH Rear Carpet
291002536
Unavailable
13
RH Center Carpet
291002537
Unavailable
14
LH CENTER CARPET - Call your local BRP dealership
291002538
Unavailable
15
RH FRONT CARPET - Call your local BRP dealership
291002539
Unavailable
16
LH FRONT CARPET - Call your local BRP dealership
291002540
Unavailable
17
Rivet 1/8"
293150016
$0.40
18
Black, Snap Cap
293000014
$1.09
19
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
20
Flat Washer M8.5 x 18
293050001
$3.07
21
Black, Finition Plate
291001386
$10.99
22
O-Ring
293300123
$1.03
23
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
24
Hex. Elastic Nut M8 Brass
232581200
$2.22
25
GRAB HANDLE - Call your local BRP dealership
269001491
Unavailable
26
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
27
Hex. Jam Nut M10
232100600
$2.22
28
Flat Washer 10 mm, Stainless
234002600
$2.22
29
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
30
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
31
Stainless, Flat Washer 8 mm
234081600
$0.55
32
Flat Washer 8 mm, Stainless
234082600
$2.43
33
Hex. Elastic Nut M8 Brass
232581200
$2.22
34
Link Bridge Ass'y
291001931
$26.99
35
Square Nut M8
211100033
$17.99
36
Pad
291001932
$10.99
37
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
Flat Washer 8 mm, Stainless
250200175
$3.06
40
Rubber Washer
293830037
$2.68
41
RH MOULDING - Call your local BRP dealership
291002568
Unavailable
42
Pop Rivet 3/16"
293150123
$4.29
43
Hex. Screw 10-14 X 7/8”
211000023
$3.59
44
Flat Washer, Stainless/Neoprene
211200055
$0.73
45
RH Moulding
291002570
Unavailable
46
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
47
Black, Dart
293730006
$0.99
48
Rubber Washer 5 mm
250200024
$2.19
49
Black, Dart
293730006
$0.99
50
RH GRILL - Call your local BRP dealership
273000218
Unavailable
51
LH GRILL - Call your local BRP dealership
273000219
Unavailable
52
Allen Plastite Screw #12
250000099
$2.19
53
LH MOULDING - Call your local BRP dealership
291002573
Unavailable
54
LH MOULDING - Call your local BRP dealership
291002572
Unavailable
55
LH KNEE PAD, SILVER - Call your local BRP dealership
269001292
Unavailable
56
Black, Dart
293730006
$0.99
57
Rubber Washer 5 mm
250200024
$2.19
