09- Body, Front View

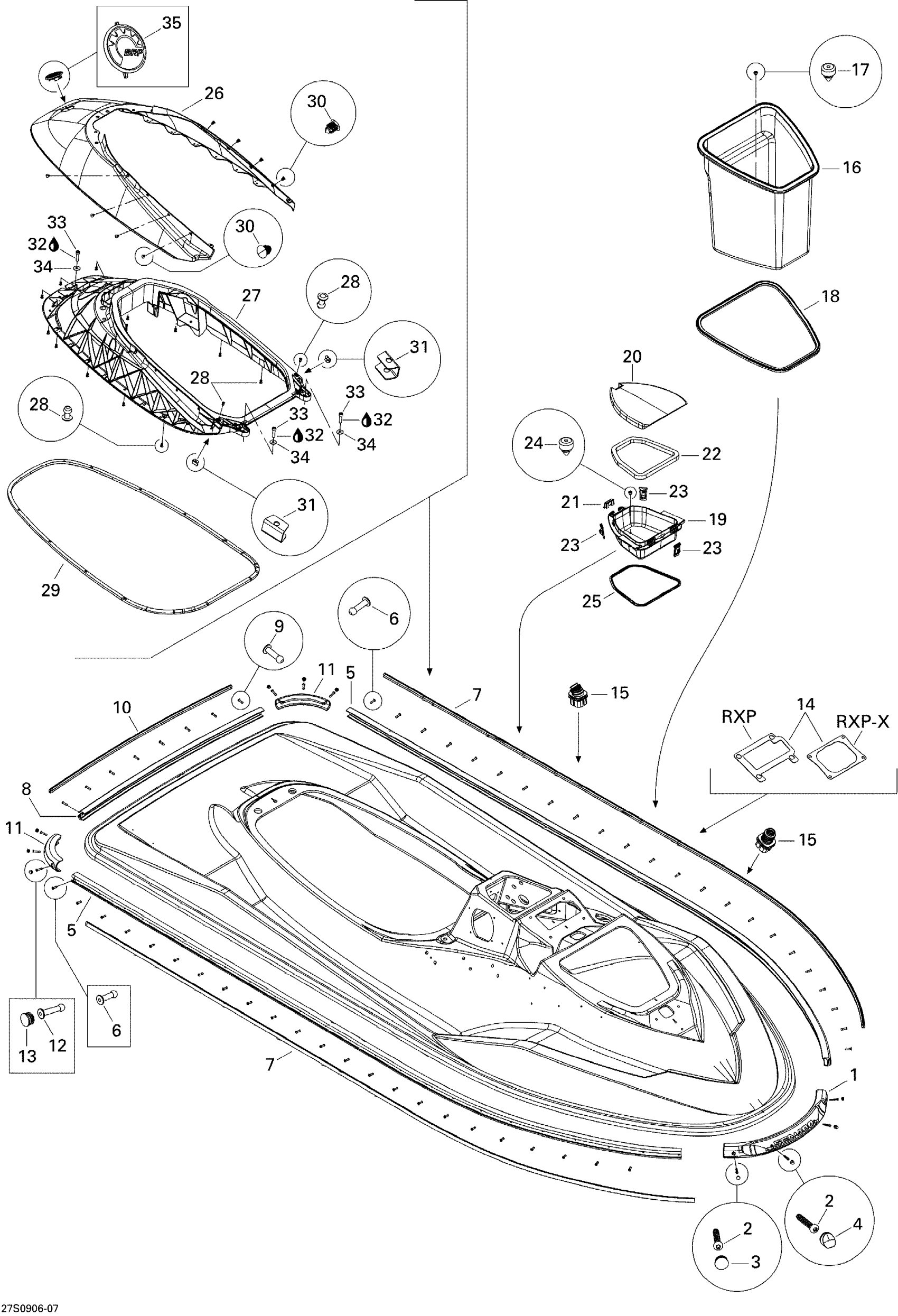

Sea-doo RXP-X 255 and 255 RS, 2009 09- Body, Front View Diagram
#
Description
Price
1
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
2
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
3
Bumper Plug, Black
291001519
$5.49
4
Bumper Plug, Black
291001040
$7.39
5
Black, Side Bumper
204050270
$179.99
6
Pop Rivet 3/16"
293150005
$0.52
7
SIDE BUMPER TRIM - Call your local BRP dealership
204050271
Unavailable
8
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
9
Pop Rivet 3/16"
293150005
$0.52
10
Side Bumper Trim
291002077
Unavailable
11
Bumper Corner
291002244
$48.99
12
Pop Rivet 3/16"
293150013
$1.37
13
Bumper Plug, Black
291000339
$2.99
14
GASKET - Call your local BRP dealership
293250187
Unavailable
15
GROMMET - Call your local BRP dealership
293720042
Unavailable
16
STORAGE TRAY - Call your local BRP dealership
269500691
Unavailable
17
Rubber Bumper
293830005
$8.09
18
Seal Tray 1000Mm Long
219704368
$13.99
19
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
20
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
21
LATCH - Call your local BRP dealership
269500719
Unavailable
22
GASKET - Call your local BRP dealership
293250100
Unavailable
23
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
24
Rubber Bumper
293830005
$8.09
25
Was 293250099 Gasket
219704377
$7.20
26
UPPER ENGINE COVER - Call your local BRP dealership
291002618
Unavailable
27
LOWER ENGINE COVER - Call your local BRP dealership
291002542
Unavailable
28
Pop Rivet 3/16"
293150088
$0.99
29
Seal Tray 1000Mm Long
219704368
$13.99
30
Black, Dart
293730016
$9.97
31
INSERT - Call your local BRP dealership
293450259
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
34
Flat Washer 8 mm, Stainless
234082600
$2.43
35
BUMPER PLUG - Call your local BRP dealership
291002226
Unavailable
