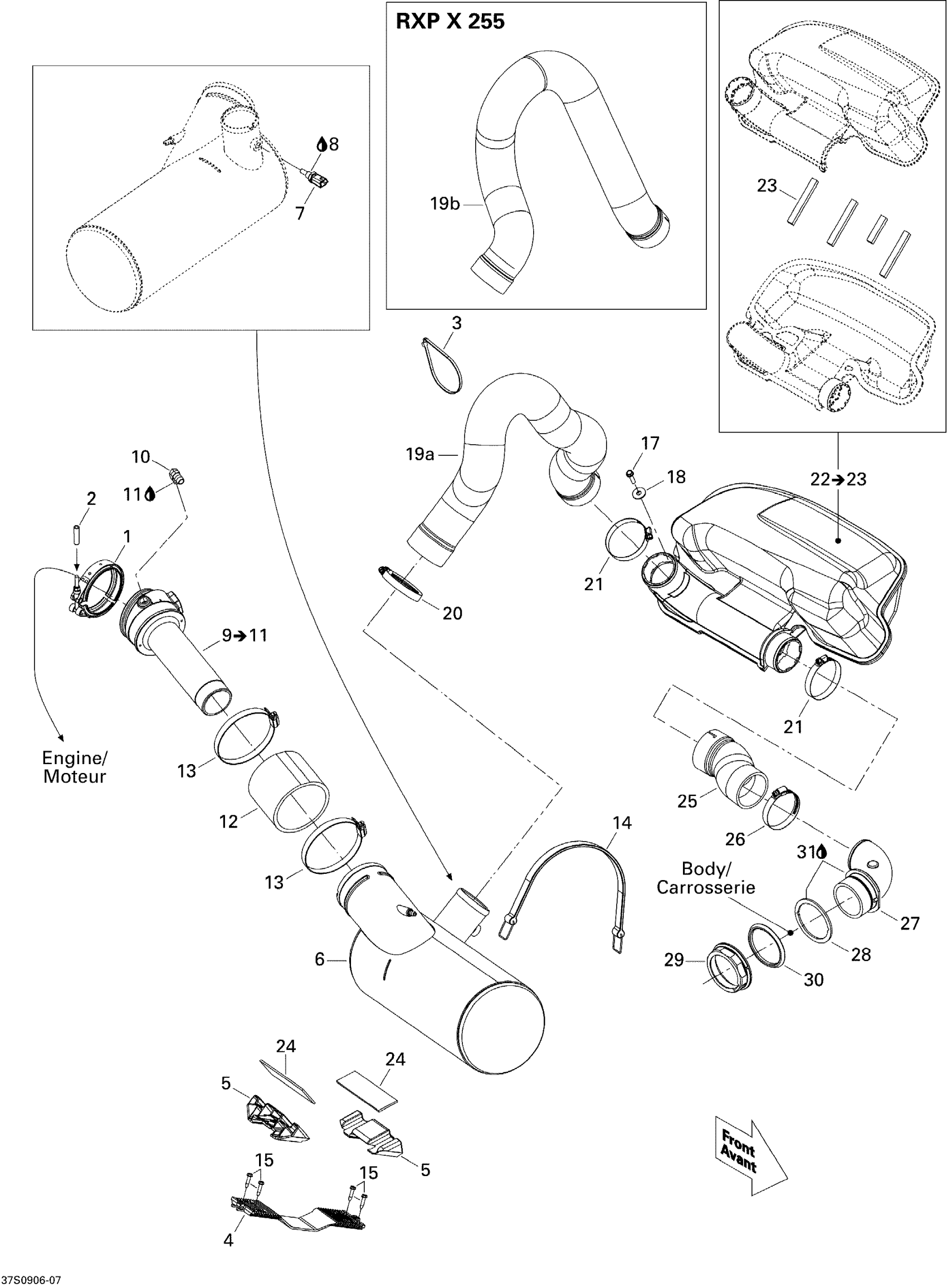

Sea-doo RXP-X 255 and 255 RS, 2009 01- Exhaust System Diagram

#

Description
Price

1

Exhaust Clamp

274001417

$58.99

2

Polyurethane Hose 10000Mm Long

219704410

$56.99

3

Tie Rap, 533 mm

293750047

$2.09

4

Exhaust Muffler Support This part replaces 274001357.

274001479

$18.54

5

Stopper

274001721

$19.09

6

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

Unavailable

7

Temperature Sensor

278002895

$39.99

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Was 293800013 Loctite 56765

219704454

$65.99

12

Hose | Without Catalyst

274001348

$24.49

13

Gear Clamp This part replaces 293650281.

293650202

$15.88

14

Fuel Tank Strap

293850093

$21.99

15

Pop Rivet 3/16"

293150043

$2.09

17

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

18

Flat Washer 8 mm, Stainless

234082600

$2.43

19a

Not Available As Spare Parts

XXX

Unavailable

19b

Front Formed Exhaust Pipe This part replaces 274001426.

274001707

$92.99

20

Tridon Clamp

293650179

$11.49

21

Tridon Clamp

293650179

$11.49

22

Resonator

274001366

$169.49

23

Neoprene Seal (1PAC=3M)

219704364

$27.49

24

Rubber Pad

293830126

$13.76

25

Rear Exhaust Hose This part replaces 274001427.

274001710

$47.49

26

Tridon Clamp

293650179

$11.49

27

Exhaust Hose, Outlet

274001389

$29.49

28

GASKET - Call your local BRP dealership

293250203

Unavailable

29

Nut 72 mm

274000224

$16.34

30

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

$36.99
