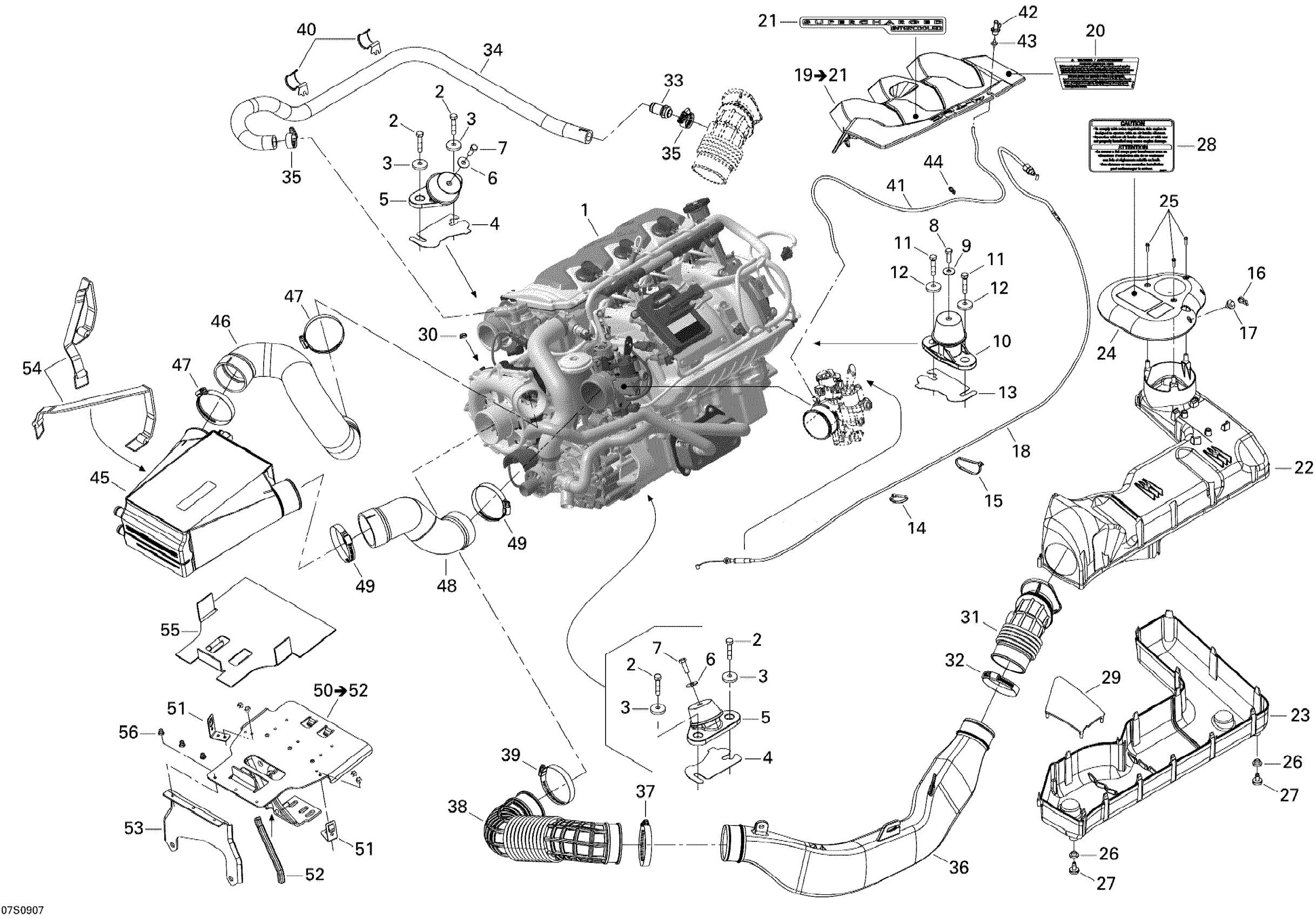

Sea-doo RXP-X 255 and 255 RS, 2009 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.33

4

Shim 1.3 mm

270000762

$10.37

5

Engine Support Ass'y

270001081

$96.99

6

Flat Washer 8 mm, Stainless

234082600

$2.27

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

9

Flat Washer 8 mm, Stainless

234082600

$2.27

10

Engine Support Ass'y

270001096

$88.78

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.33

13

Shim 1.3 mm

270000762

$10.37

14

Tie-Rap 180 mm

414115200

$0.10

15

Tie-Rap 180 mm

414115200

$0.10

16

Tie Wrap 142 mm

293750002

$1.01

17

Mount Dart

293730040

$0.99

18

THROTTLE CABLE - Call your local BRP dealership

277001588

Unavailable

19

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

20

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

21

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

22

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

23

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

24

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

25

Hex. Flange Screw K40 X 16

241141660

$1.43

26

GROMMET - Call your local BRP dealership

293720064

Unavailable

27

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

28

Caution Decal, Air Silencer

219902673

Unavailable

29

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

30

Tie Wrap 142 mm

293750002

$1.01

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

32

Tridon Clamp

293650179

$10.12

33

Breather Valve

273000234

$12.21

34

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

35

Tridon Gear Clamp

293650051

$4.15

36

HOSE INTAKE - Call your local BRP dealership

270000771

Unavailable

37

Tridon Clamp

293650179

$10.12

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$10.12

40

Retainer

275500664

$12.52

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$0.93

44

Tie Wrap 142 mm

293750002

$1.01

45

Intercooler

276000179

Unavailable

45

Intercooler This part replaces 276000332.

276000415

$435.79

45

INTERCOOLER UPDATE MOUNTING KIT - Call your local BRP dealership | Ref Service Bulletin 2016-9

295501163

Unavailable

46

Inlet Hose This part replaces 273000284.

273000402

$76.84

47

Tridon Clamp

293650179

$10.12

48

Outlet Hose | Starboard This part replaces 273000285.

273000403

$47.73

49

Tridon Clamp

293650179

$10.12

50

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

51

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

52

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

53

REAR COOLER SUPPORT - Call your local BRP dealership

270000760

Unavailable

54

Fuel Tank Strap

293850093

$19.37

55

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

56

Pop Rivet 3/16"

293150039

$1.31
