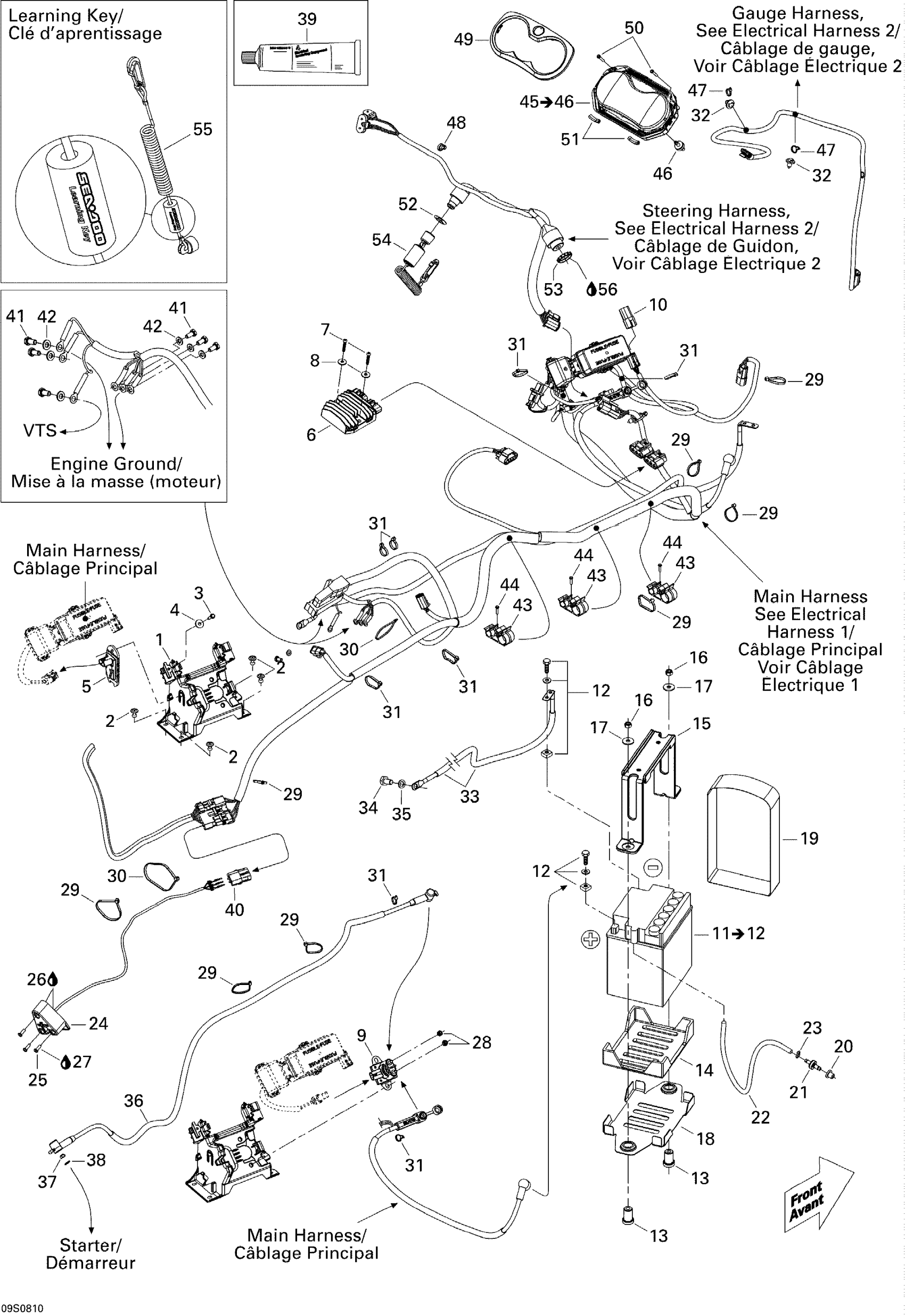

Sea-doo RXP X 255, 2008 10- Electrical System Diagram
#
1
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
2
Pop Rivet 3/16"
293150123
$4.29
3
Hex. Screw 10-14 X 7/8”
211000023
$3.59
4
Flat Washer M6, Stainless
234062600
$0.77
5
Interrupter T.O.P.S.
278001992
$74.49
6
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
7
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
8
Flat Washer M6, Stainless
234062600
$0.77
9
Starter Relay
278003012
$42.49
10
Diagnostic Connector
278002704
$19.49
11
Battery, 30 Amperes
278001882
$184.01
12
Battery Bolt Kit
250000282
$7.29
13
BUSHING - Call your local BRP dealership
278001939
Unavailable
14
LOWER BATTERY PAD - Call your local BRP dealership
278001582
Unavailable
15
BATTERY SUPPORT - Call your local BRP dealership
278001677
Unavailable
16
Hex. Elastic Nut M8 Brass
232581200
$2.22
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
BATTERY SUPPORT - Call your local BRP dealership
278001966
Unavailable
19
BATTERY STRAP 337 MM - Call your local BRP dealership
278001764
Unavailable
20
Grommet
293720029
$1.59
21
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
22
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
Speed Sensor
278001993
$169.99
25
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
26
Silicone Sealant 51388, 300 ml
296000309
$36.99
27
Silicone Sealant 51388, 300 ml
296000309
$36.99
28
Elastic Stop Nut M6, Brass
232561200
$4.23
29
Tie-Rap 180 mm
414115200
$0.11
30
Tie Wrap 368 mm
293750008
$1.04
31
Tie-Rap 180 mm
414115200
$0.11
32
Mount Dart
293730040
$1.04
33
GROUND CABLE ASS'Y - Call your local BRP dealership
278002177
Unavailable
34
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
35
Flat Washer 10 mm, Stainless
234000600
$1.46
36
STARTER CABLE - Call your local BRP dealership
278002267
Unavailable
37
Elastic Stop Nut M6, Brass
232561200
$4.23
38
Stainless Flat Washer M6
234061600
$0.33
39
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
40
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
41
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
42
Stainless Flat Washer M6
234061600
$0.33
43
RETAINER - Call your local BRP dealership
275500553
Unavailable
44
Hex. Flange Screw K40 X 16
241141660
$1.48
45
Digital Multifunction Gauge | SERV
278002270
$1.00
46
Check Valve
275500398
$10.99
47
Tie-Rap 180 mm
414115200
$0.11
48
Tie Wrap 142 mm
293750002
$1.25
49
Gauge Bezel, Chrome
278002144
$38.99
50
Hex. Flange Screw K40 X 25
241142560
$2.64
51
TRIM - Call your local BRP dealership
293830113
Unavailable
52
Safety Nut (DESS Switch)
278002963
$3.28
53
Plastic Nut
278002291
$9.32
54
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
55
Safety Lanyard, Learning Key
278002203
$56.99
56
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
