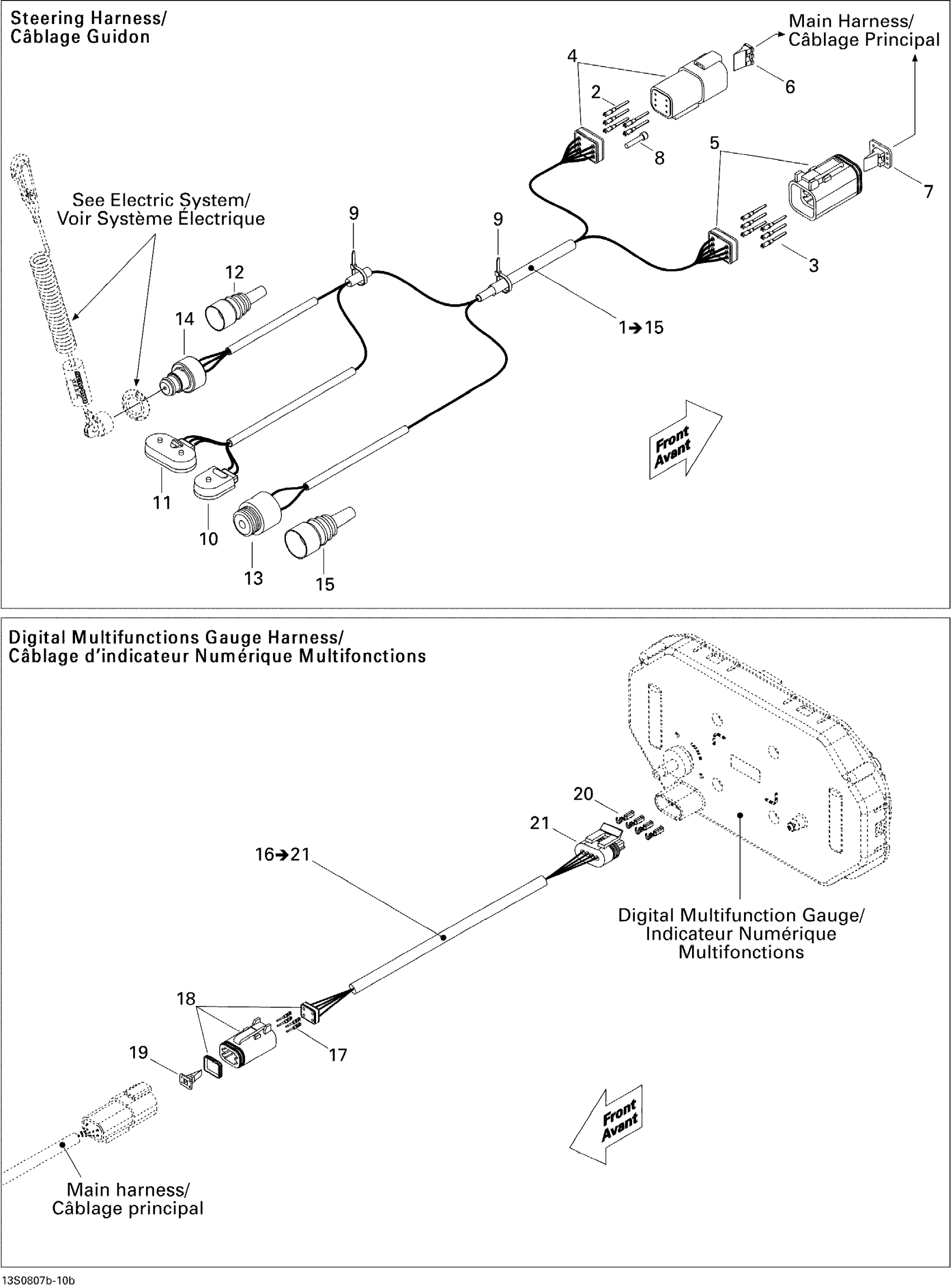

Sea-doo RXP X 255, 2008 Electrical Harness 2 Diagram

#

Description
Price

1

Steering Harness | Includes 1 to 15

278002384

$469.99

2

Male Terminal

278000631

$4.39

3

Female Terminal

278000632

$2.09

4

Male Terminal Housing, 6 Circuits

710001539

$19.99

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

6

Female Lock, 6 Circuits

278000735

$3.19

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

Sealing Cap

293000052

$3.19

9

Tie Wrap 142 mm

293750002

$1.25

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

VTS SWITCH - Call your local BRP dealership | SERV

278002156

Unavailable

12

BOOT - Call your local BRP dealership

278002263

Unavailable

13

Buzzer | SERV

278002290

$36.99

14

Safety Switch

278002351

$114.99

15

BOOT - Call your local BRP dealership | SERV

278002296

Unavailable

16

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

$49.99

17

Female Terminal

278000632

$2.09

18

Male Connector, 4 Circuits | CE

278000739

$19.49

19

Male Lock, 4 Circuits | CE

278000738

$3.09

20

Female Terminal

278001114

$3.19

21

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable
