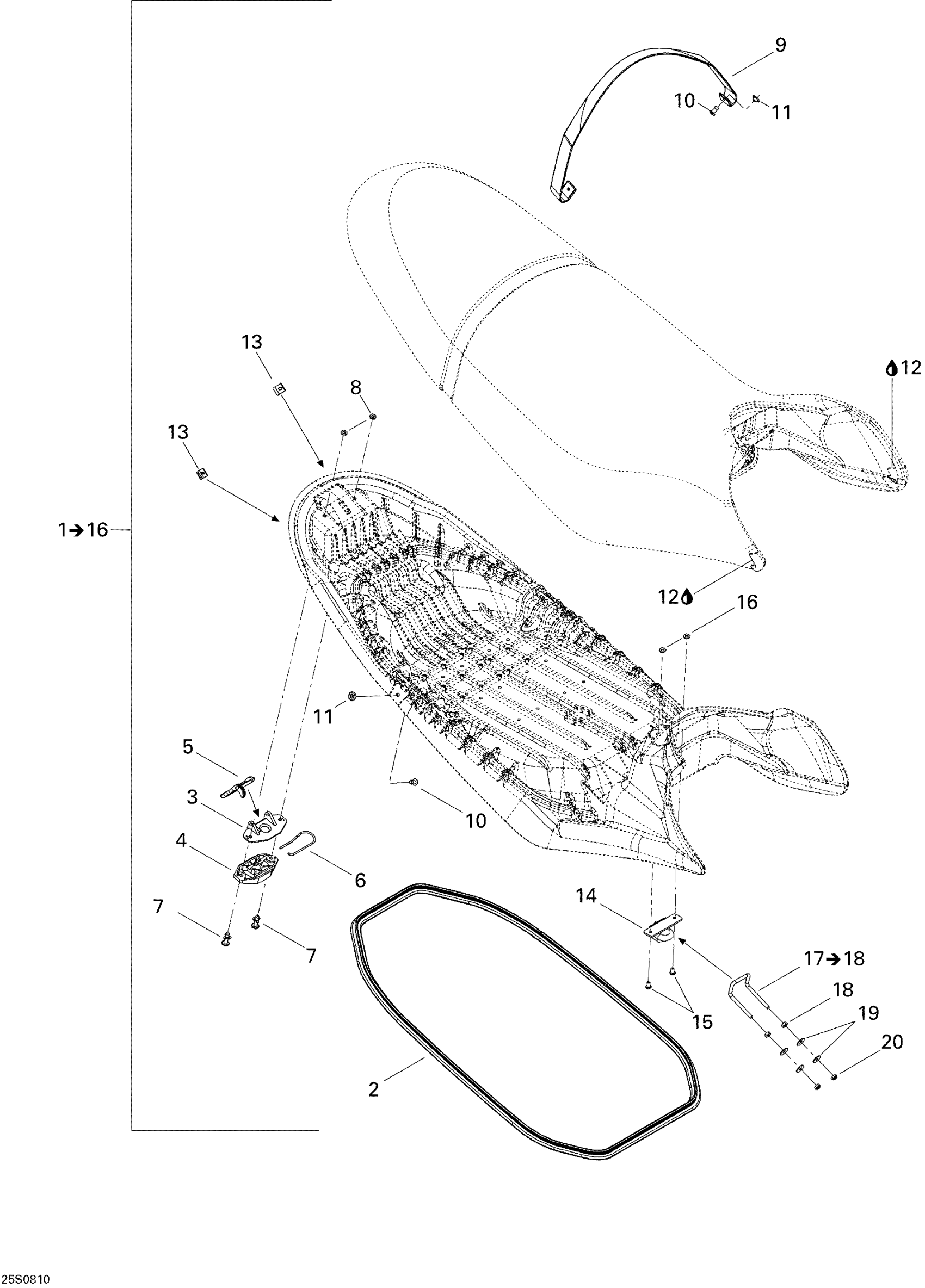

Sea-doo RXP X 255, 2008 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 13

269001473

Unavailable

2

Was 293200062 Seal

219704366

$61.72

3

Latch Ass'y

269700109

$20.12

4

Latch Ass'y

269700109

$20.12

5

Latch Ass'y

269700109

$20.12

6

Latch Spring

269700017

$7.27

7

Rivet 1/4"

293150151

$6.46

8

Stainless Flat Washer M6

234061600

$0.25

9

Seat Strap

269001499

Unavailable

10

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

11

Grommet

293720067

$9.19

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

13

QUARTER-TURN NUT - Call your local BRP dealership

250100032

Unavailable

14

SEAT HOOK - Call your local BRP dealership

291002012

Unavailable

15

Rivet 1/4"

293150151

$6.46

16

Stainless Flat Washer M6

234061600

$0.25

17

U-CLAMP ROD - Call your local BRP dealership | Includes 14 to 15

291001937

Unavailable

18

Hex. Nut M6

232061600

$0.91

19

Flat Washer M6, Stainless

234062600

$0.64

20

Elastic Stop Nut M6, Brass

232561200

$3.51
