09- Front Storage Compartment 1

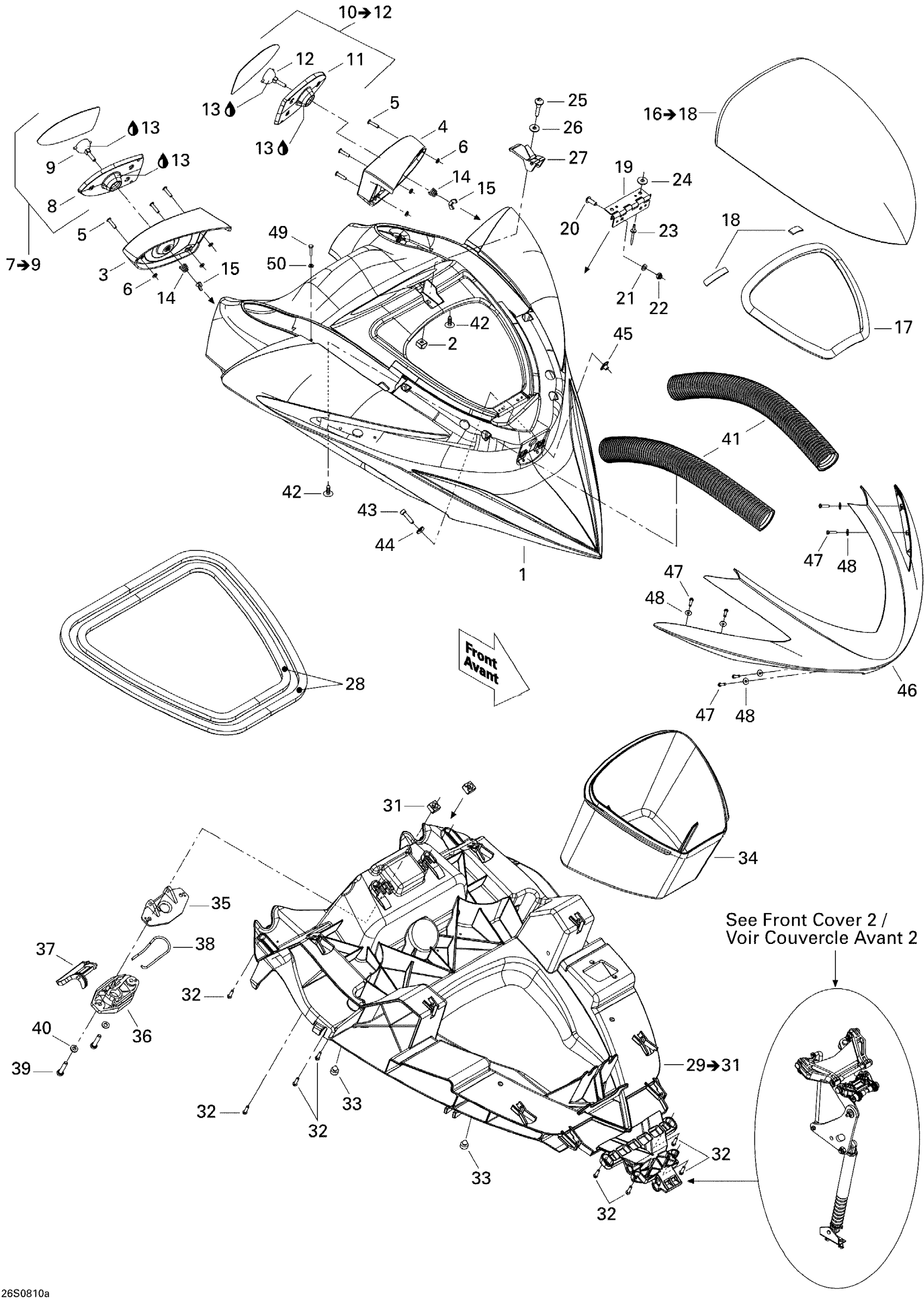

Sea-doo RXP X 255, 2008 09- Front Storage Compartment 1 Diagram
#
1
UPPER STORAGE COVER - Call your local BRP dealership
269501678
Unavailable
2
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
3
RH MIRROR HOUSING - Call your local BRP dealership
269501679
Unavailable
4
LH MIRROR HOUSING - Call your local BRP dealership
269501680
Unavailable
5
Pop Rivet 3/16"
293150005
$0.52
6
Flat Washer, Emhart
213200016
$0.72
7
RH Mirror
269501328
Unavailable
8
Frame Mirror
269500697
Unavailable
9
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
10
LH MIRROR - Call your local BRP dealership | Includes 10 to 12
269501634
Unavailable
11
Frame Mirror
269500697
Unavailable
12
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
13
Synthetic Grease, 400 G
293550010
Unavailable
14
Mirror Spring
269500453
$10.49
15
WING NUT M6 - Call your local BRP dealership
232661600
Unavailable
16
ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 16 to 18
269501681
Unavailable
17
Gasket, Neoprene 2000Mm Long
219704476
$15.36
18
Seal Tray 1000Mm Long
219704368
$13.99
19
HINGE - Call your local BRP dealership
269500338
Unavailable
20
Socket Head Screw M5 X 16
205451660
$1.15
21
Flat Washer M5, Stainless
234051600
$0.77
22
Elastic Stop Nut 5 mm
232551200
$1.47
23
Pop Rivet 3/16"
204000081
$1.49
24
Flat Washer 5 mm, Stainless
234052600
$0.77
25
ANCHORING STUD - Call your local BRP dealership
291001242
Unavailable
26
Flat Washer M6, Stainless
234062600
$0.77
27
Latch
269501487
$16.99
28
Was 293200017 Neoprene Seal
219704365
$149.99
29
LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30
269501379
Unavailable
31
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
32
Hex. Flange Screw K40 X 13
241141360
$0.67
33
Rubber Bumper
293830005
$8.09
34
STORAGE BOX - Call your local BRP dealership
269501133
Unavailable
35
Latch Ass'y
269700109
$24.99
36
Latch Ass'y
269700109
$24.99
37
Latch Ass'y
269700109
$24.99
38
Latch Spring
269700017
$9.19
39
Hex. Screw M6 X 30
207063060
$1.89
40
Stainless Flat Washer M6
234061600
$0.33
41
VENTILALTION HOSE (BLACK) - Call your local BRP dealership
291002489
Unavailable
42
Black, Dart
293730011
$0.99
43
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
44
Flat Washer M6, Stainless
234062600
$0.77
45
Nut Welded, M6
293100003
$9.12
46
Front Grille
269501238
$154.99
47
Hex. Flange Screw K40 X 16
241141660
$1.48
48
Flat Washer 4 mm, Stainless
234042600
$1.15
49
Plastite Hex. Screw M6.8 X 35
243163560
$4.44
50
Flat Washer M6, Stainless
234062600
$0.77
