- RXP X 255, 2008
09- Body, Rear View

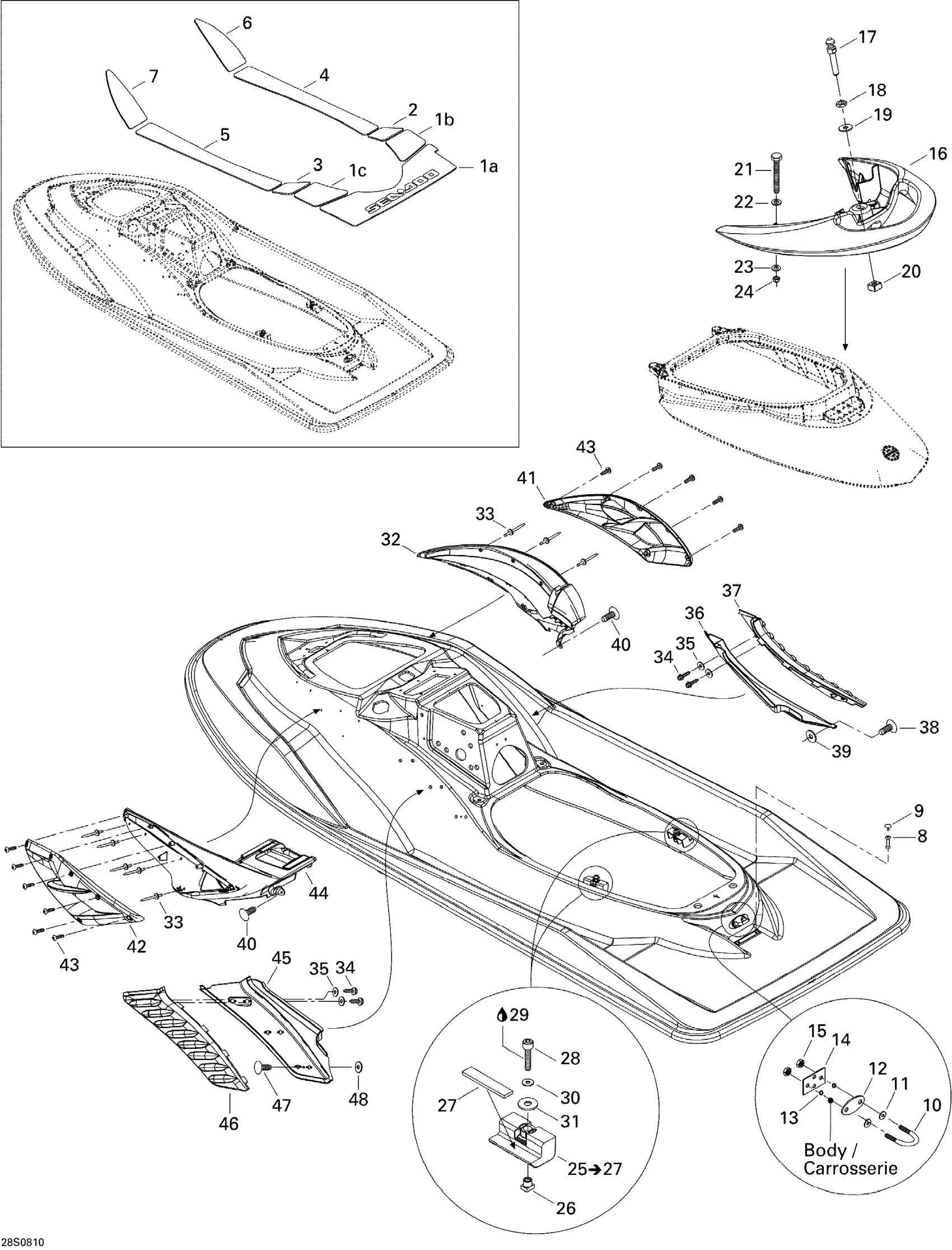

Sea-doo RXP X 255, 2008 09- Body, Rear View Diagram
#
1a
Platforme Carpet
291002534
Unavailable
1b
RH Platforme Carpet
291002598
Unavailable
1c
LH Platforme Carpet
291002599
Unavailable
2
RH Rear Carpet
291002535
Unavailable
3
LH Rear Carpet
291002536
Unavailable
4
RH Center Carpet
291002537
Unavailable
5
LH CENTER CARPET - Call your local BRP dealership
291002538
Unavailable
6
RH FRONT CARPET - Call your local BRP dealership
291002539
Unavailable
7
LH FRONT CARPET - Call your local BRP dealership
291002540
Unavailable
8
Rivet 1/8"
293150016
$0.40
9
Black, Snap Cap
293000014
$1.09
10
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
11
Flat Washer M8.5 x 18
293050001
$3.07
12
Black, Finition Plate
291001386
$10.99
13
O-Ring
293300123
$1.03
14
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
15
Hex. Elastic Nut M8 Brass
232581200
$2.22
16
GRAB HANDLE - Call your local BRP dealership
269001491
Unavailable
17
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
18
Hex. Jam Nut M10
232100600
$2.22
19
Flat Washer 10 mm, Stainless
234002600
$2.22
20
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
21
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
Flat Washer 8 mm, Stainless
234082600
$2.43
24
Hex. Elastic Nut M8 Brass
232581200
$2.22
25
Link Bridge Ass'y
291001931
$26.99
26
Square Nut M8
211100033
$17.99
27
Pad
291001932
$10.99
28
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
29
Loctite 243, 10 ml
293800060
$21.49
30
Flat Washer 8 mm, Stainless
250200175
$3.06
31
Rubber Washer
293830037
$2.68
32
RH MOULDING - Call your local BRP dealership
291002568
Unavailable
33
Pop Rivet 3/16"
293150123
$4.29
34
Hex. Screw 10-14 X 7/8”
211000023
$3.59
35
Flat Washer, Stainless/Neoprene
211200055
$0.73
36
RH Moulding
291002570
Unavailable
37
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
38
Black, Dart
293730006
$0.99
39
Rubber Washer 5 mm
250200024
$2.19
40
Black, Dart
293730006
$0.99
41
RH GRILL - Call your local BRP dealership
273000218
Unavailable
42
LH GRILL - Call your local BRP dealership
273000219
Unavailable
43
Allen Plastite Screw #12
250000099
$2.19
44
LH MOULDING - Call your local BRP dealership
291002573
Unavailable
45
LH MOULDING - Call your local BRP dealership
291002572
Unavailable
46
LH KNEE PAD - Call your local BRP dealership
269001295
Unavailable
47
Black, Dart
293730006
$0.99
48
Rubber Washer 5 mm
250200024
$2.19
