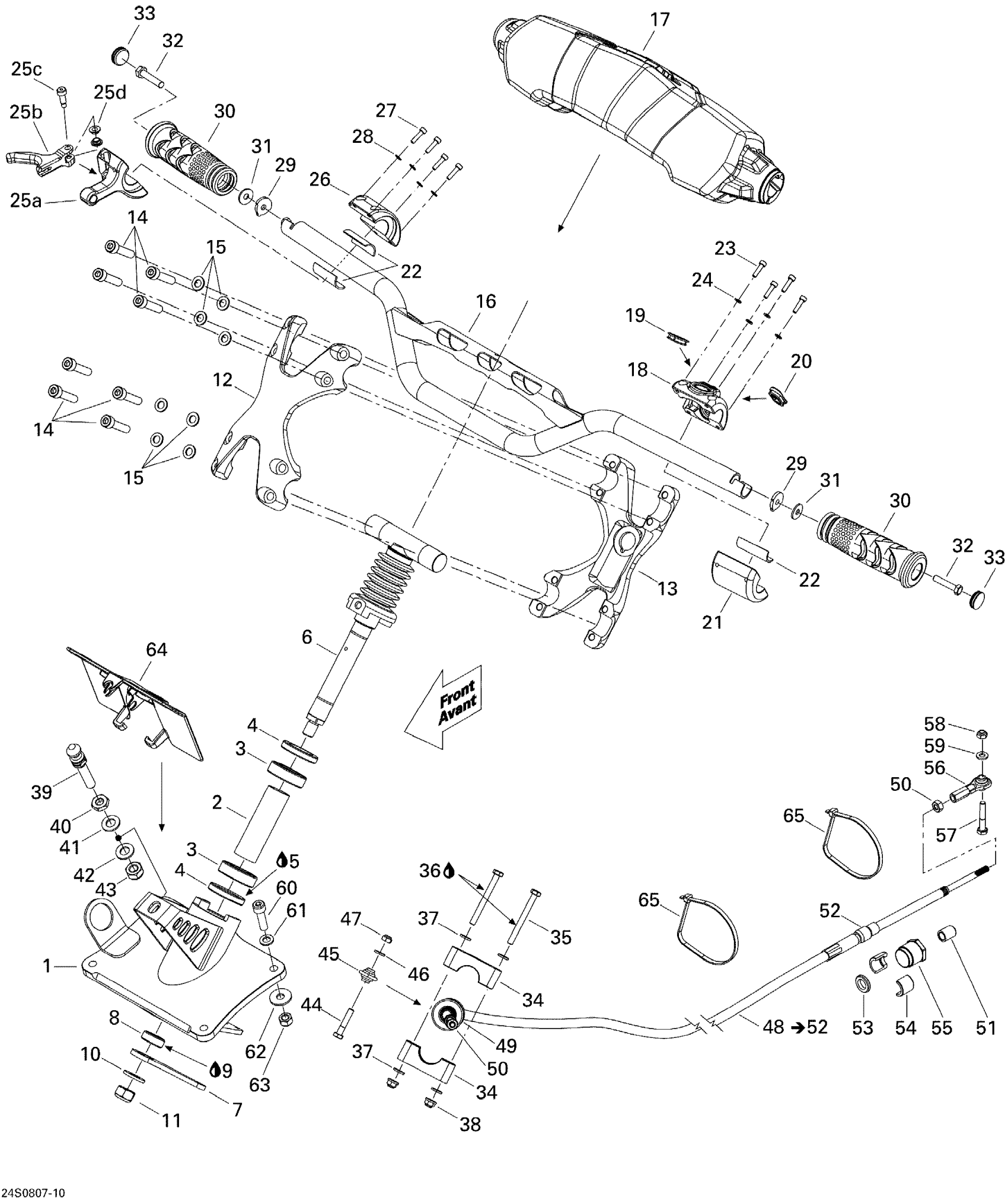

Sea-doo RXP X 255, 2008 Steering Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership

277001632

Unavailable

2

Spacer

277001572

Unavailable

3

Ball Bearing | Package-STD

503190396

$14.30

4

OIL SEAL - Call your local BRP dealership

293200115

Unavailable

5

Synthetic Grease, 400 G

293550010

Unavailable

6

STEERING SHAFT ASS'Y - Call your local BRP dealership

277001548

Unavailable

7

MOBILE ARM - Call your local BRP dealership

277001566

Unavailable

8

RING - Call your local BRP dealership

277001584

Unavailable

9

Synthetic Grease, 400 G

293550010

Unavailable

10

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

11

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

12

HANDLE BAR EXTENSION, UPPER - Call your local BRP dealership

277001552

Unavailable

13

Handlebar Extension, Lower

277001569

Unavailable

14

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

15

Flat Washer M8, Stainless

234080600

$1.48

16

HANDLE BAR - Call your local BRP dealership

277001610

Unavailable

17

HANDLE PAD - Call your local BRP dealership

277001557

Unavailable

18

SERVICE KIT TO REPLACE 27700156 - Call your local BRP dealership This part replaces 277001560.

295501112

Unavailable

19

Switch Knob

277000306

Unavailable

20

VTS KNOB - Call your local BRP dealership

278002066

Unavailable

21

SERVICE KIT TO REPLACE 27700156 - Call your local BRP dealership This part replaces 277001560.

295501112

Unavailable

22

PAD - Call your local BRP dealership

293250202

Unavailable

23

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.90

24

Flat Washer 4 mm

234040600

$0.55

25a

SERVICE KIT TO REPLACE 27700156 - Call your local BRP dealership This part replaces 277001560.

295501112

Unavailable

25b

THROTTLE HANDLE - Call your local BRP dealership

277001564

Unavailable

25c

SOCKET HEAD SHOULDER SCREW - Call your local BRP dealership

250000343

Unavailable

25d

BUSHING - Call your local BRP dealership

293900090

Unavailable

26

UPPER HOUSING - Call your local BRP dealership

277001563

Unavailable

27

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.90

28

Flat Washer 4 mm

234040600

$0.55

29

Insert Grip Handle

277001863

$8.83

30

Handle Grip, Slate Grey

277001336

$19.49

31

Flat Washer M6, Stainless

234062600

$0.77

32

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

33

Black, Cap

277000203

$9.39

34

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

35

Hex. Cap Screw

207166060

$4.50

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Stainless Flat Washer M6

234061600

$0.33

38

Elastic Stop Nut M6, Brass

232561200

$4.23

39

LATCH STUD - Call your local BRP dealership

291002717

Unavailable

40

Hex. Jam Nut M10

232100600

$2.22

41

Flat Washer 10 mm, Stainless

234001600

$1.15

42

Flat Washer 10 mm, Stainless

234001600

$1.15

43

Elastic Stop Nut M10, Brass

232501200

$2.64

44

Hex. Screw M6 X 30

207063060

$1.89

45

Ball Joint

277000775

$51.99

46

Stainless Flat Washer M6

234061600

$0.33

47

Elastic Stop Nut M6, Brass

232561200

$4.23

48

Steering Cable | Includes 38 to 42

277001580

$201.49

49

Ajustment Knob

277000782

$22.99

50

Hex. Nut 1/4"-28

211100056

$0.69

51

Wiper Rod

277001582

$11.11

52

End Piece

277001583

$14.49

53

Rubber Washer

293830063

$1.90

54

Half Ring

277001527

$10.37

55

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

56

Ball Joint

277000775

$51.99

57

Hex. Screw M6 X 35

207063560

$2.22

58

Elastic Stop Nut M6, Brass

232561200

$4.23

59

Stainless Flat Washer M6

234061600

$0.33

60

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

61

Stainless, Flat Washer 8 mm

234081600

$0.55

62

Flat Washer 8 mm, Stainless

234082600

$2.43

63

Hex. Elastic Nut M8 Brass

232581200

$2.22

64

CAP - Call your local BRP dealership

277001623

Unavailable

65

Tie Wrap 368 mm

293750008

$1.04
