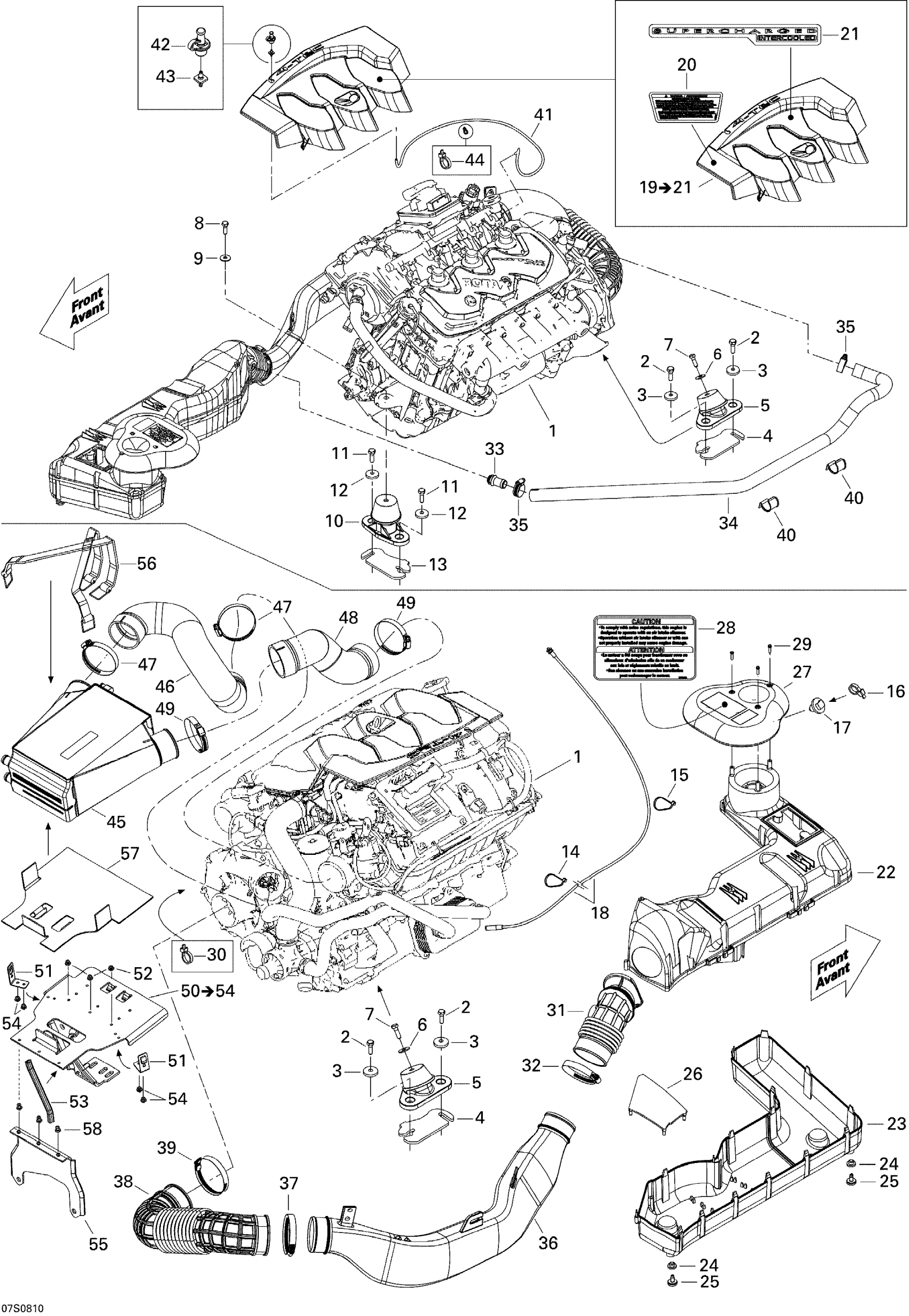

Sea-doo RXP X 255, 2008 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie-Rap 180 mm

414115200

$0.11

16

Tie Wrap 142 mm

293750002

$1.25

17

Mount Dart

293730040

$1.04

18

THROTTLE CABLE - Call your local BRP dealership

277001588

$91.99

19

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

20

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

21

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

22

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

23

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

24

GROMMET - Call your local BRP dealership

293720064

Unavailable

25

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

26

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

27

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

28

Caution Decal, Air Silencer

219902673

Unavailable

29

Hex. Flange Screw K40 X 16

241141660

$1.48

30

Tie Wrap 142 mm

293750002

$1.25

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

32

Tridon Clamp

293650179

$11.49

33

Breather Valve

273000234

$14.49

34

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

35

Tridon Gear Clamp

293650051

$4.19

36

CENTER HOSE INTAKE - Call your local BRP dealership

270000740

Unavailable

37

Tridon Clamp

293650179

$11.49

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$11.49

40

Retainer

275500664

$14.75

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$1.09

44

Tie Wrap 142 mm

293750002

$1.25

45

Intercooler

276000179

Unavailable

45

Intercooler This part replaces 276000332.

276000415

$476.49

45

INTERCOOLER UPDATE MOUNTING KIT - Call your local BRP dealership | Ref Service Bulletin 2016-9

295501163

Unavailable

46

Inlet Hose This part replaces 273000284.

273000402

$83.49

47

Tridon Clamp

293650179

$11.49

48

Outlet Hose | Starboard This part replaces 273000285.

273000403

$51.99

49

Tridon Clamp

293650179

$11.49

50

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

51

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

52

Pop Rivet 3/16"

293150039

$1.49

53

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

54

Pop Rivet 3/16"

204000081

$1.49

55

REAR COOLER SUPPORT - Call your local BRP dealership

270000760

Unavailable

56

Fuel Tank Strap

293850093

$21.99

57

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

58

Pop Rivet 3/16"

293150039

$1.49
