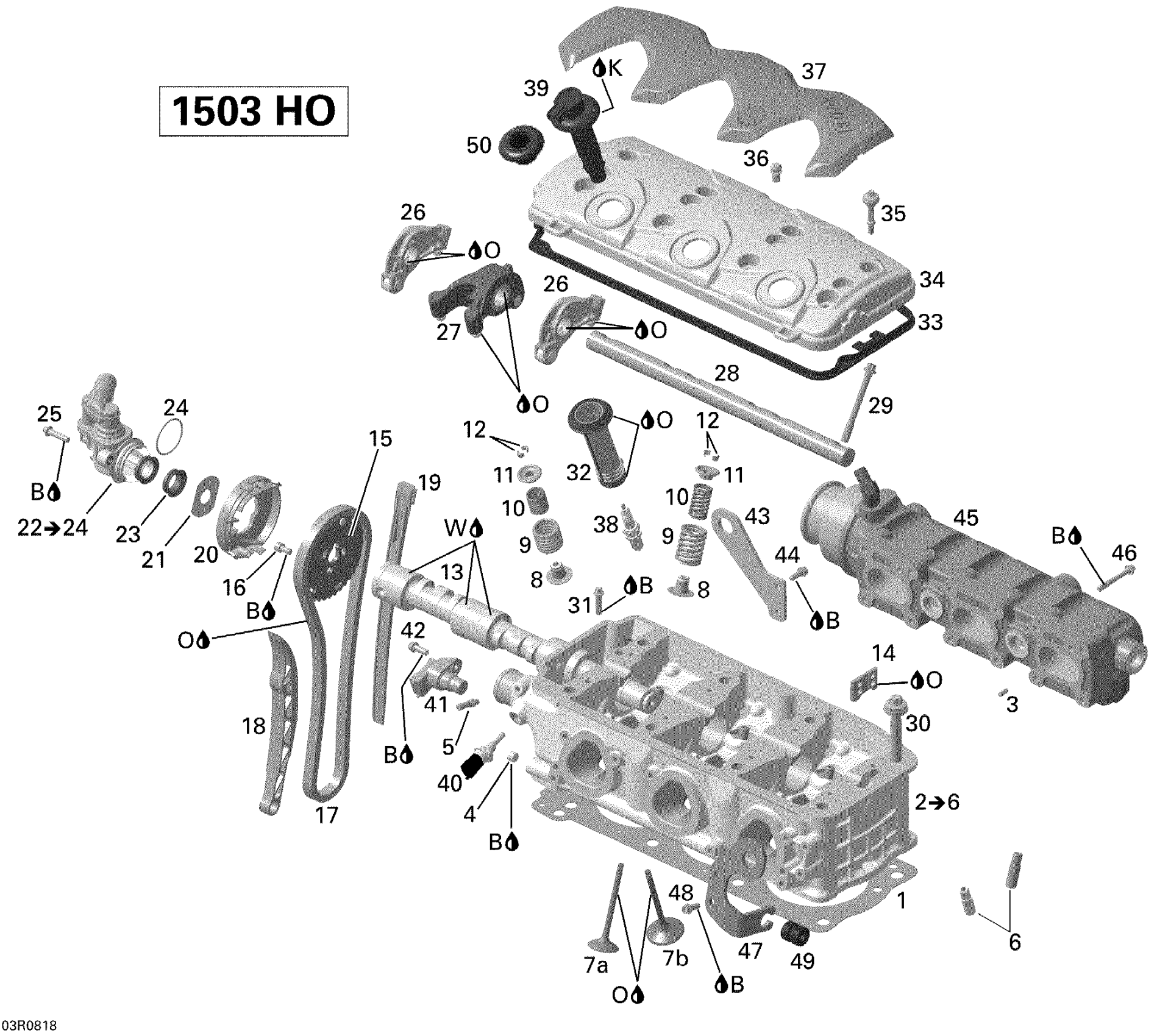

Sea-doo RXP X 255, 2008 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$121.99

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$776.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Plug Screw M10 X 1

420641323

$14.28

5

Hose Nipple

420924724

$14.83

6

Valve Guide | Inner diameter machined

420253929

$46.49

7a

Exhaust Valve, 31 mm

420254682

$104.99

7b

Intake Valve 38MM

420253163

$41.49

8

Valve Steam Seal

420630202

$7.90

9

Valve Spring

420238180

$15.89

10

Valve Spring Inside

420838280

$12.72

11

Valve Spring Retainer

420254283

$8.57

12

Valve Cotter

420253645

$7.41

13

Camshaft This part replaces 420837851.

420637780

Unavailable

14

Camshaft Guide

420851694

$31.99

15

Timing Gear, 38 Teeth

420254309

$69.99

16

Allen Screw M6 X 12

420840032

$4.44

17

Camshaft Chain

420898042

$97.49

18

Chain Tension Guide

420236541

$15.89

19

Chain Guide

420236501

$14.28

20

Cover

420660037

$23.49

21

Thrust Washer

420627494

$7.41

22

Vent Valve | Includes 22 to 24

420856500

$98.49

23

V-Ring 20S FPM Blow By Valve

420630125

$11.63

24

O-Ring

420950870

$5.39

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

Rocker Arm, Exhaust

420254329

$137.49

27

Rocker Arm, Inner

420254316

$179.99

28

Rocker Arm, Shaft

420854594

$201.49

29

Torx Screw M8 X 72

420641080

$5.29

30

Torx Flange Screw M11 X 147

420641110

$11.58

31

Torx Flange Screw M6 X 25

420641238

$3.27

32

Spark Plug Pipe

420851754

$27.49

33

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

34

VALVE COVER - Call your local BRP dealership

420811587

Unavailable

35

Allen Screw M6 x 30,5

420440561

$4.44

36

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

37

Valve Cover

420660167

$58.49

38

Spark Plug, NGK DCP-R8E

715900637

$6.35

39

Ignition Coil Kit This part replaces 420664020.

296000307

$104.99

40

Temperature Sensor

278002895

$39.99

41

Camshaft Position Sensor Ass'y

420664046

$88.99

42

Torx Flange Screw M6 X 16

420641048

$2.96

43

Transport Bracket PTO

420851618

$27.49

44

Torx Flange Screw M6 X 16

420641048

$2.96

45

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

46

Torx Flange Screw M6 X 45

420641198

$4.12

47

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

48

Torx Flange Screw M6 X 16

420641048

$2.96

49

Rubber Bracket

420660090

$4.12

50

Sealing Cup

420460830

$21.99

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

K

Dow Corning 111, 150 g

413707000

$59.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
