01- Engine And Air Intake Silencer

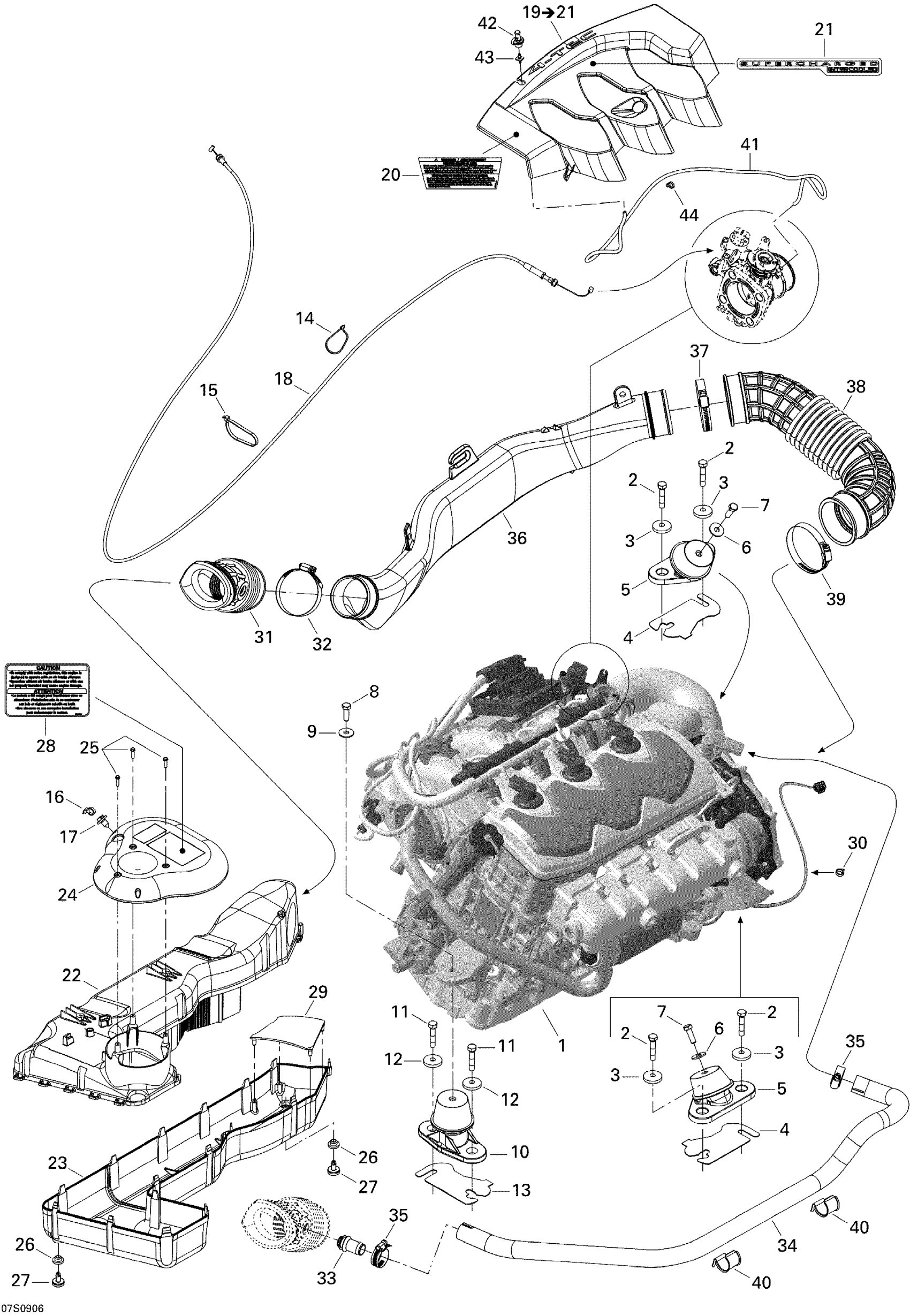

Sea-doo RXP 215, 2009 01- Engine And Air Intake Silencer Diagram
#
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
Hex. Screw M8 X 40, Scotch Grip
207284060
$2.24
3
Cone Washer
250200018
$5.61
4
Shim 1.3 mm
270000762
$12.99
5
Engine Support Ass'y
270001081
$109.99
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
8
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
9
Flat Washer 8 mm, Stainless
234082600
$2.43
10
Engine Support Ass'y
270001096
$97.99
11
Hex. Screw M8 X 40, Scotch Grip
207284060
$2.24
12
Cone Washer
250200018
$5.61
13
Shim 1.3 mm
270000762
$12.99
14
Tie-Rap 180 mm
414115200
$0.11
15
Tie-Rap 180 mm
414115200
$0.11
16
Tie Wrap 142 mm
293750002
$1.25
17
Mount Dart
293730040
$1.04
18
THROTTLE CABLE - Call your local BRP dealership
277001070
Unavailable
19
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
20
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
21
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
22
AIR SILENCER UPPER - Call your local BRP dealership
273000245
Unavailable
23
AIR SILENCER LOWER - Call your local BRP dealership
273000190
Unavailable
24
AIR SILENCER COVER - Call your local BRP dealership
273000266
Unavailable
25
Hex. Flange Screw K40 X 16
241141660
$1.48
26
GROMMET - Call your local BRP dealership
293720064
Unavailable
27
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
28
Caution Decal, Air Silencer
219902673
Unavailable
29
DEFLECTOR - Call your local BRP dealership
273000206
Unavailable
30
Tie Wrap 142 mm
293750002
$1.25
31
INTAKE HOSE - Call your local BRP dealership
273000186
Unavailable
32
Tridon Clamp
293650179
$11.49
33
Breather Valve
273000234
$14.49
34
FORMED HOSE - Call your local BRP dealership
270000808
Unavailable
35
Tridon Gear Clamp
293650051
$4.19
36
HOSE INTAKE - Call your local BRP dealership
270000771
Unavailable
37
Tridon Clamp
293650179
$11.49
38
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
39
Tridon Clamp
293650179
$11.49
40
Retainer
275500664
$14.75
41
HOSE 3 MM - Call your local BRP dealership
270000469
Unavailable
42
GROMMET CAP - Call your local BRP dealership
293830120
Unavailable
43
CONNECTOR - Call your local BRP dealership
293710107
$1.09
44
Tie Wrap 142 mm
293750002
$1.25
