Description

Price

1

Seat Ass'y | Includes 1 to 16

269001454

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

Rivet 1/4"

293150151

$8.04

8

Stainless Flat Washer M6

234061600

$0.33

9

Seat Strap

269001456

Unavailable

10

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

11

Grommet

293720067

$12.99

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

QUARTER-TURN NUT - Call your local BRP dealership

250100032

Unavailable

14

SEAT HOOK - Call your local BRP dealership

291002012

Unavailable

15

Rivet 1/4"

293150151

$8.04

16

Stainless Flat Washer M6

234061600

$0.33

17

U-CLAMP ROD - Call your local BRP dealership | Includes 14 to 15

291001937

Unavailable

18

Hex. Nut M6

232061600

$1.15

19

Flat Washer M6, Stainless

234062600

$0.77

20

Elastic Stop Nut M6, Brass

232561200

$4.23

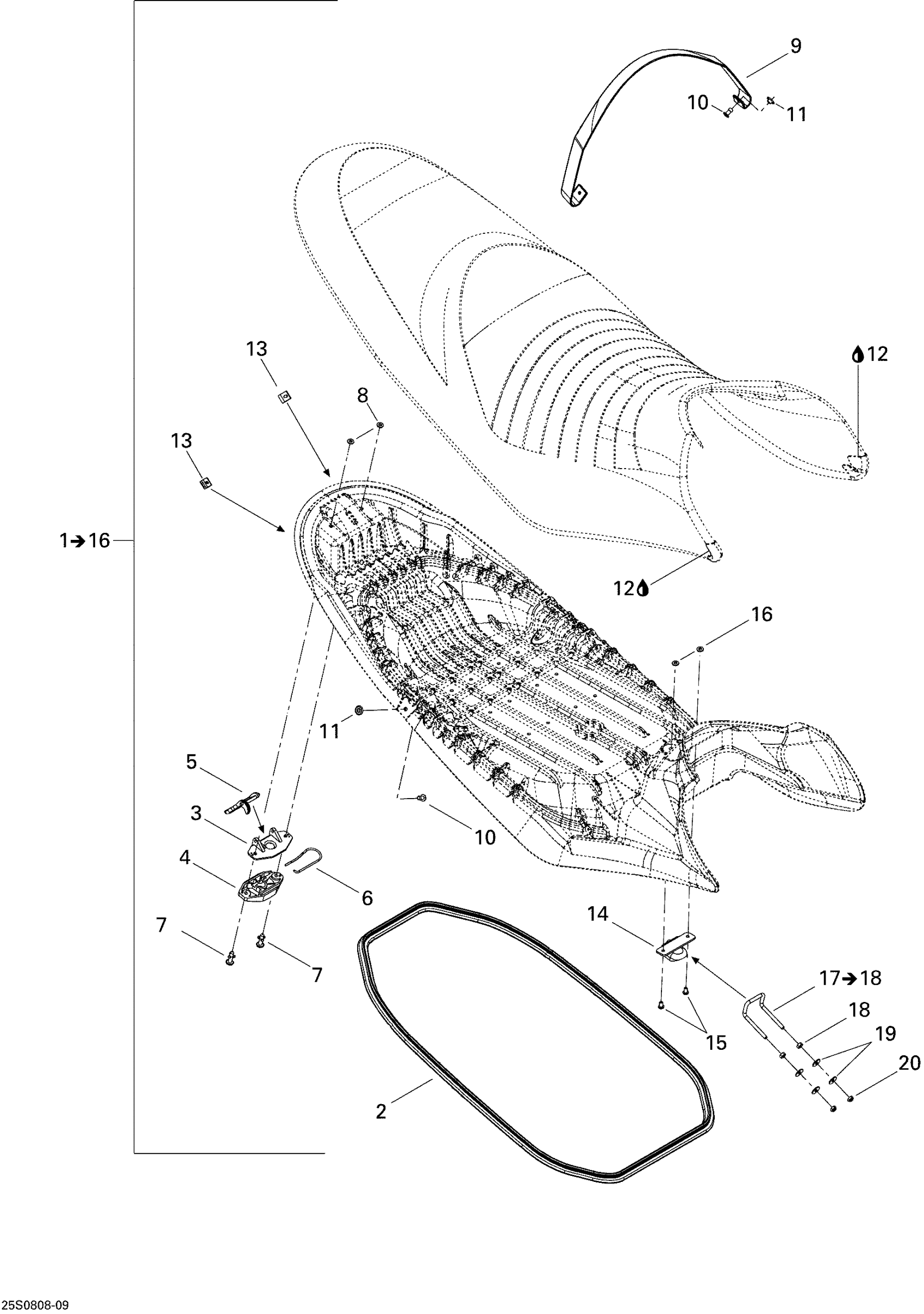

Sea-doo RXP 215, 2008 09- Seat Diagram

Seat Ass'y | Includes 1 to 16

Was 293200062 Seal

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

Rivet 1/4"

Stainless Flat Washer M6

Seat Strap

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

Grommet

Était Was 413705800 Loctite 414 , 29.5 c.c

QUARTER-TURN NUT - Call your local BRP dealership

SEAT HOOK - Call your local BRP dealership

Rivet 1/4"

Stainless Flat Washer M6

U-CLAMP ROD - Call your local BRP dealership | Includes 14 to 15

Hex. Nut M6

Flat Washer M6, Stainless

Elastic Stop Nut M6, Brass
