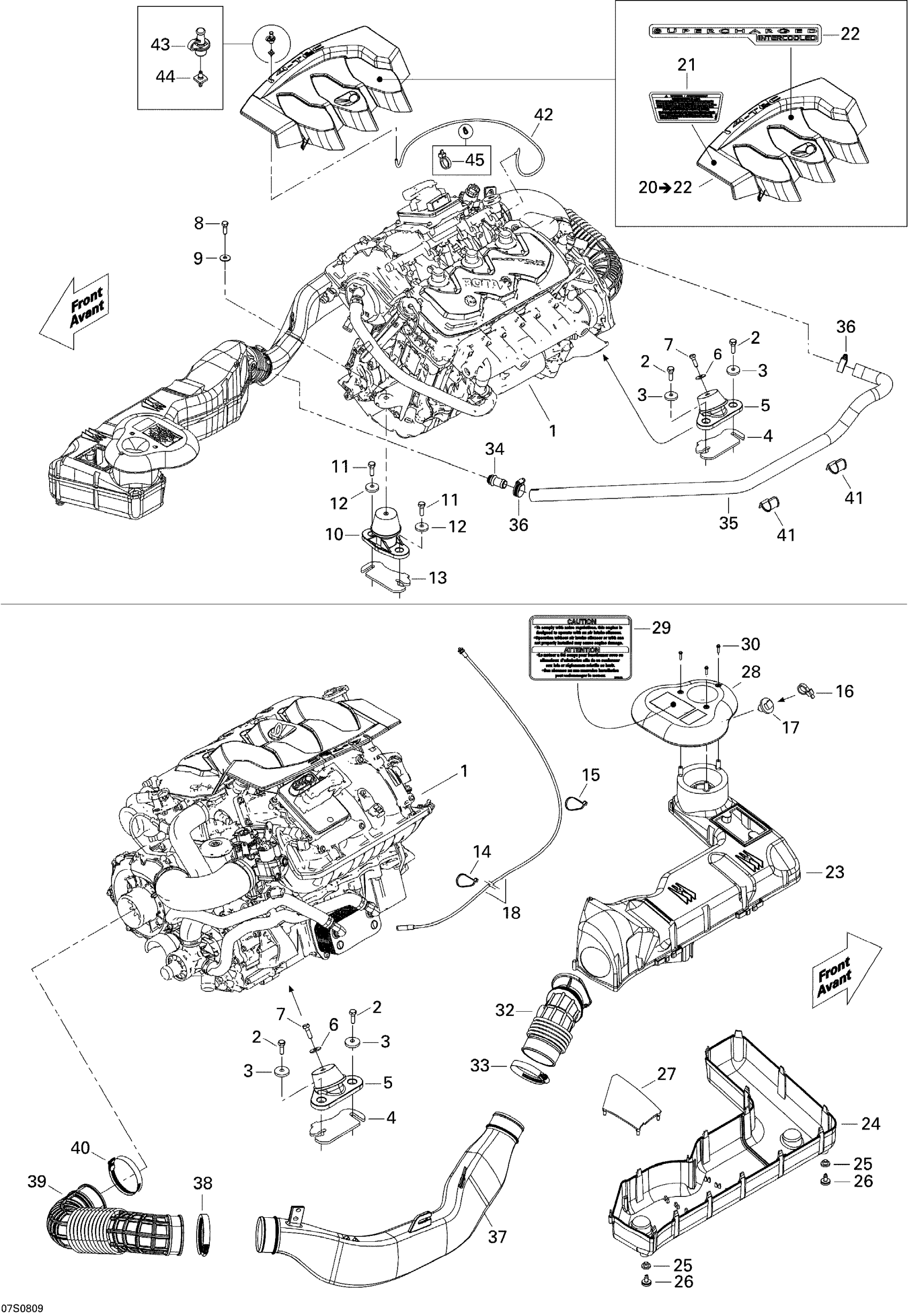

Sea-doo RXP 215, 2008 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie-Rap 180 mm

414115200

$0.11

16

Tie Wrap 142 mm

293750002

$1.25

17

Mount Dart

293730040

$1.04

18

THROTTLE CABLE - Call your local BRP dealership

277001070

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

23

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

24

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

25

GROMMET - Call your local BRP dealership

293720064

Unavailable

26

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

27

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

28

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

29

Caution Decal, Air Silencer

219902673

Unavailable

30

Hex. Flange Screw K40 X 16

241141660

$1.48

31

Tie Wrap 142 mm

293750002

$1.25

32

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

33

Tridon Clamp

293650179

$11.49

34

Breather Valve

273000234

$14.49

35

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

36

Tridon Gear Clamp

293650051

$4.19

37

CENTER HOSE INTAKE - Call your local BRP dealership

270000740

Unavailable

38

Tridon Clamp

293650179

$11.49

39

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

40

Tridon Clamp

293650179

$11.49

41

Retainer

275500664

$14.75

42

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

43

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

44

CONNECTOR - Call your local BRP dealership

293710107

$1.09

45

Tie Wrap 142 mm

293750002

$1.25
