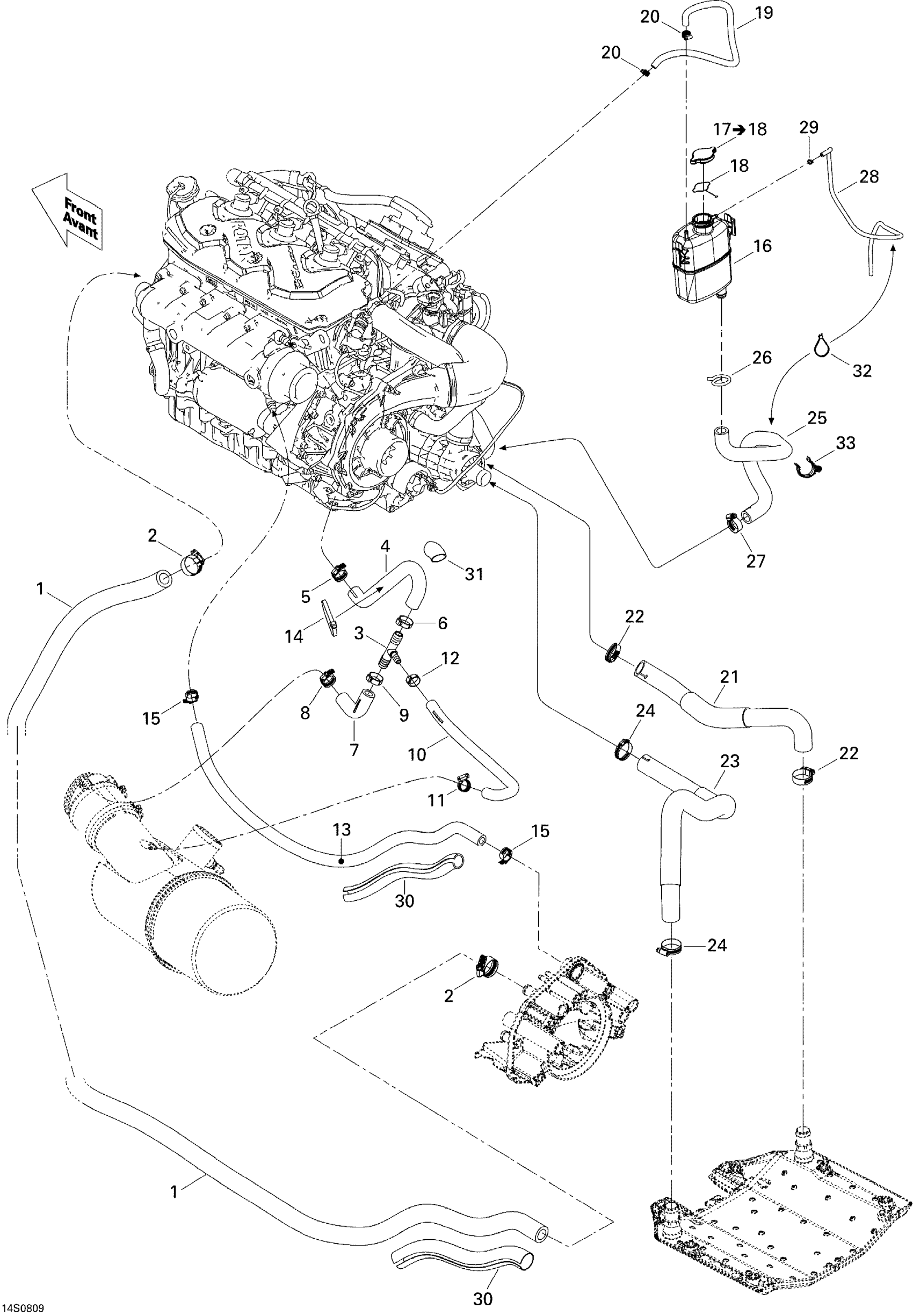

Sea-doo RXP 215, 2008 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

2

Tridon Gear Clamp

293650051

$3.61

3

T-Fitting

293710116

$14.27

4

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

5

Tridon Gear Clamp

293650172

$2.68

6

Oetiker Clamp

293650012

$4.94

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

8

Tridon Gear Clamp

293650172

$2.68

9

Oetiker Clamp

293650012

$4.94

10

Formed Hose | Without Catalyst

276000246

$14.92

11

Tridon Gear Clamp

293650171

$2.46

12

Oetiker Clamp | Europe

293650030

$4.32

13

Was 276000001 Hose 12.5 mm

219704394

$42.87

14

Tie-Rap 180 mm

414115200

$0.09

15

Tridon Gear Clamp

293650172

$2.68

16

Coolant Tank

276000086

$87.72

17

Pressure Cap | Includes 720 to 720a

276000100

$20.77

18

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

19

Was 275500549 Hose 1/4"

219704357

$178.33

20

Tridon Gear Clamp

293650170

$1.74

21

RH RADIATOR HOSE - Call your local BRP dealership

276000247

Unavailable

22

Tridon Gear Clamp

293650045

$4.51

23

Radiator Hose This part replaces 276000249.

276000492

$45.47

24

Tridon Gear Clamp

293650045

$4.51

25

FORMED RETURN HOSE - Call your local BRP dealership

276000122

Unavailable

26

Spring Clamp

293650115

$2.46

27

Tridon Gear Clamp

293650019

$4.81

28

Polyurethane Hose 10000Mm Long

219704410

$46.12

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

30

Tubing 25 MM 1000MM Long

219704402

$12.69

31

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

32

Tie-Rap 180 mm

414115200

$0.09

33

Retainer

275500526

$3.73
