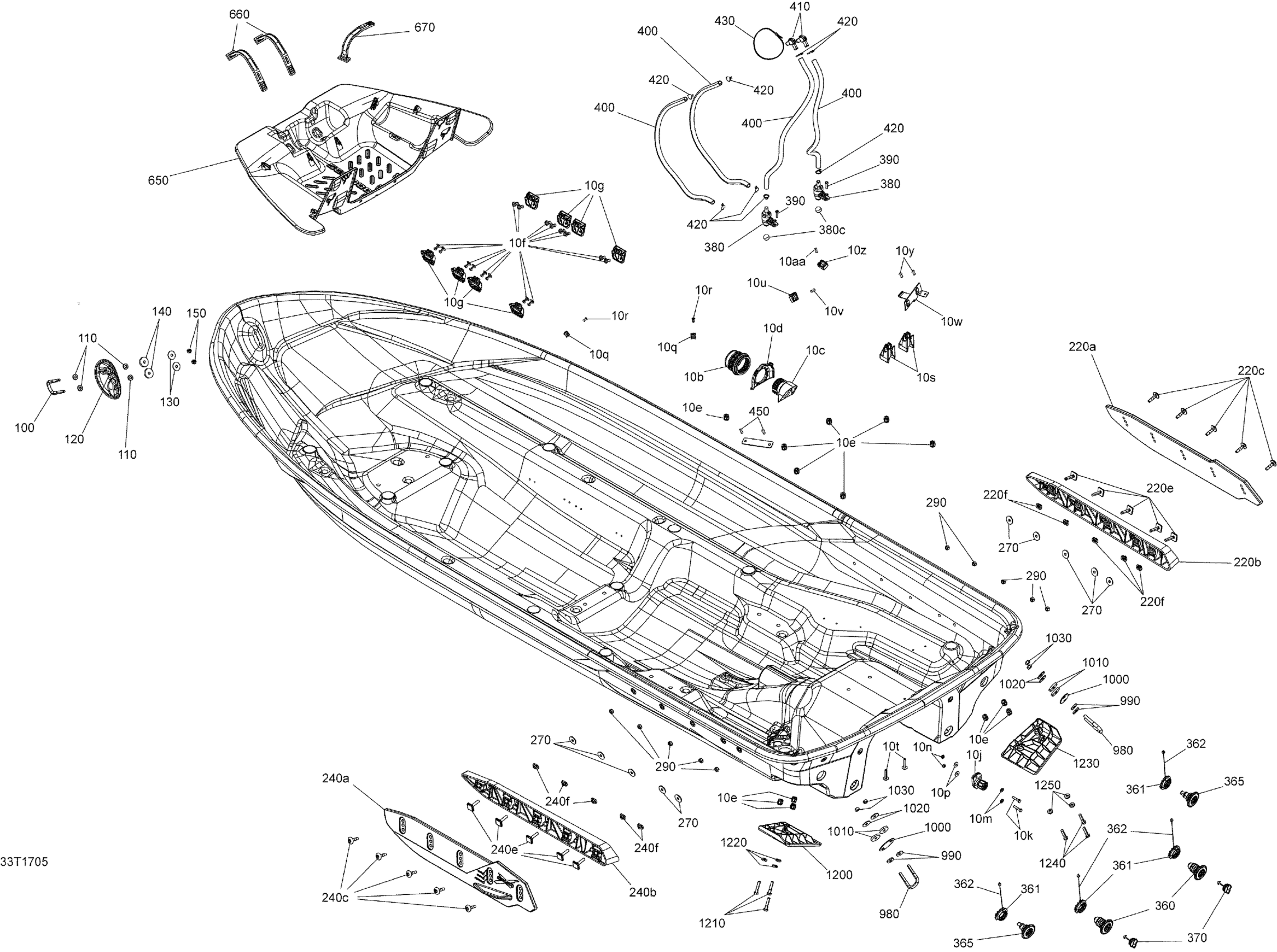

Sea-doo RXP, 2017 Hull - All Models Diagram

#

Description
Price

10b

Hull Insert

293450340

$27.99

10c

Hull Insert

293450335

$22.99

10d

Hull Insert

293450356

$10.99

10e

Not Available As Spare Part - Friction Washer

Unavailable

10f

Pop Rivet 3/16"

293150123

$4.29

10g

Strap Retaining

270000933

$6.99

10j

Cable Adaptor Ass'y

277001881

$19.99

10k

Hex. Screw M6 X 30

207063060

$1.89

10m

Sealing Washer

250200114

$4.44

10n

Elastic Stop Nut M6, Brass

232561200

$4.23

10p

Flat Washer M6, Stainless

234062600

$0.77

10q

Tie Rap Mount

293750026

$3.09

10r

Avdel Rivet 3/16"

293150037

$0.56

10s

Strap Anchor

270000988

$10.28

10t

Hexagonal Cap Screw M6 X35

250000399

$4.44

10u

Strap Anchor

270000854

$7.76

10v

Pop Rivet 3/16"

293150043

$2.09

10w

Strap Anchor

270000977

$16.33

10y

Pop Rivet 3/16"

293150043

$2.09

10z

Strap Anchor

270000854

$7.76

10aa

Pop Rivet 3/16"

293150043

$2.09

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

120

Black Shell

292001837

$20.99

130

Flat Washer 8 mm, Stainless

250200175

$3.06

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$2.22

220a

RH Sponson This part replaces 292001426.

292001871

$83.99

220b

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

220c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

220e

Square Head Stud

292001471

$15.99

220f

Push Nut

292001503

$1.15

240a

Sponson LH This part replaces 292001427.

292001872

$83.99

240b

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

240c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

240e

Square Head Stud

292001471

$15.99

240f

Push Nut

292001503

$1.15

270

Flat Washer 8 mm, Stainless

250200175

$3.06

290

Hex. Elastic Nut M8 Brass

232581200

$2.22

360

Drain Ass'y

292001580

$16.49

361

Plastic Nut

292001825

$9.79

365

Drain Neck Ass'y

292001317

$27.99

370

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

380>380c

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

380c

Floating Ball

293830080

$7.19

390

Hex. Screw 10-14 X 7/8”

211000023

$3.59

400

Was 275500008 Hose 12 mm

219704356

$20.49

410

Fitting Elbow 90°

293710152

$18.49

420

Tie Wrap 94 mm | 4X4

293750001

$1.03

430

Tie Wrap 368 mm

293750008

$1.04

450

Avdel Rivet 3/16"

293150037

$0.56

650

Trunk Shield

292001868

$43.99

660

Strap

269502417

$17.69

670

Strap

269502417

$17.69

980

U-Clamp

292000933

$59.49

990

Flat Washer

279000336

$11.57

1000

Black, Finition Plate

291001386

$10.99

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$3.06

1030

Hex. Elastic Nut M8 Brass

232581200

$2.22

1200

Trim Tab LH

292001430

$18.49

1210

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

1220

Flat Washer M8.5 x 18

293050001

$3.07

1230

TrimTab RH

292001431

$18.49

1240

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

1250

Flat Washer M8.5 x 18

293050001

$3.07
