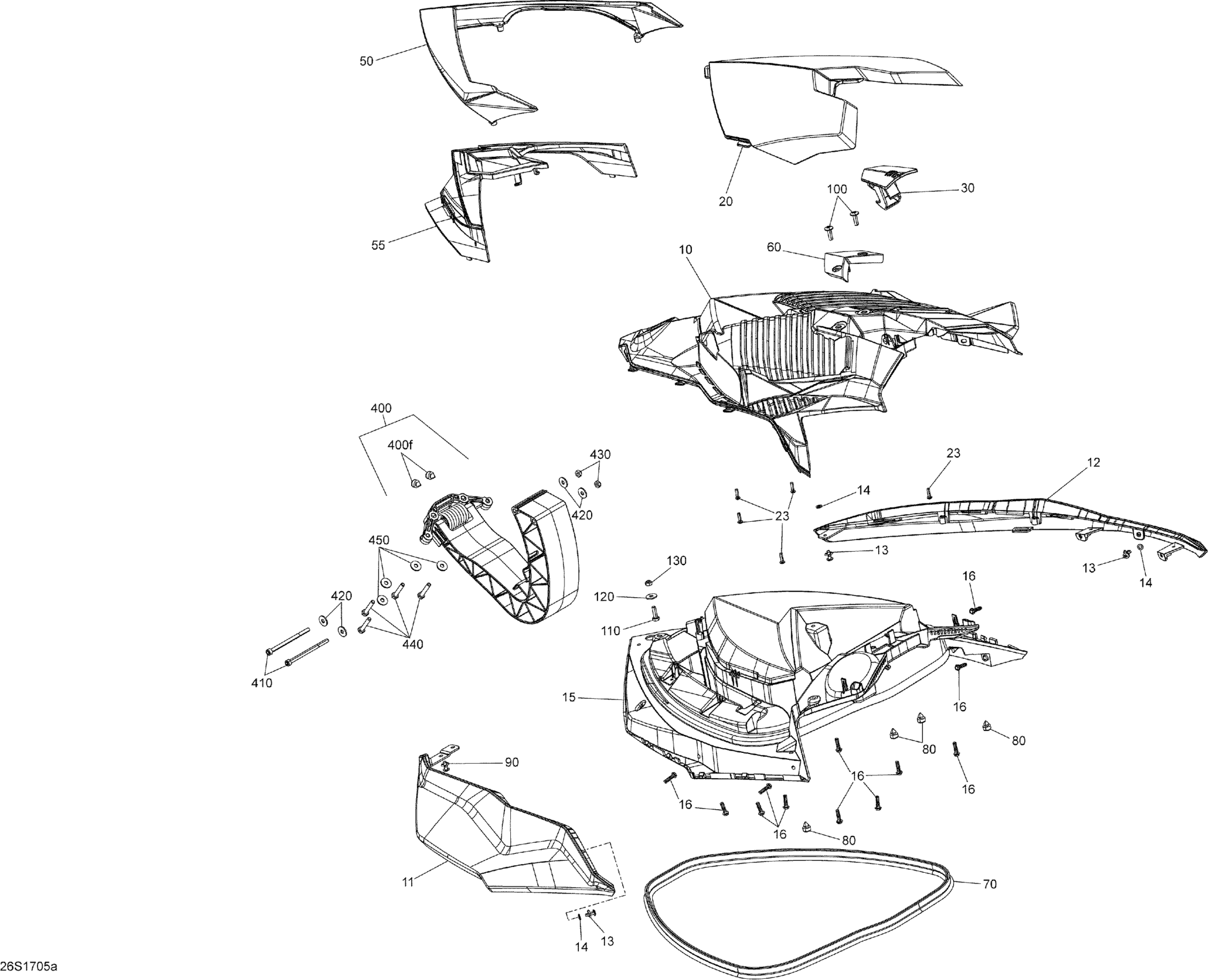

Sea-doo RXP, 2017 Front Cover - All Models Diagram

#

Description
Price

10

Black, Central Storage Cover

269502193

$264.99

11

BLACK STORAGE COVER LH - Call your local BRP dealership | Model Red

269502161

Unavailable

11

STORAGE COVER - Call your local BRP dealership | Model White

269502262

Unavailable

12

BLACK STORAGE COVER RH - Call your local BRP dealership | Model Red

269502162

Unavailable

12

STORAGE COVER - Call your local BRP dealership | Model White

269502263

Unavailable

13

Avdel Rivet

293150027

$2.49

14

Flat Washer 5 mm

234051500

$0.73

15

Deep Black, Storage Cover Lower

269502196

$109.99

16

Hex. Flange Screw K50 X 20

241152060

$1.99

20

Yellow, Deflector | Unit B-415 Neon Yellow

269501868

$61.99

20

Black Tinted 45%, Deflector | Model Dragon Red

269502220

$61.99

23

Flange Torx Screw K40 X 16

250000287

$2.11

30

Deep Black, Latch Lever

269700142

$30.99

50

Deep Black, Front Cosmetic

269501869

$86.99

50

FRONT COSMETIC - Call your local BRP dealership | Model White

269502251

Unavailable

55

SUPPORT - Call your local BRP dealership | Model Metal ICE

269502219

$78.99

55

SUPPORT - Call your local BRP dealership | Model White

269502252

Unavailable

60

Black, Clamp

269501941

$9.80

70

Neoprene Seal 3000Mm Long

219704371

$51.99

80

Rubber Bumper

293830005

$8.09

90

Avdel Rivet

293150027

$2.49

100

Torx-Truss M/S Stlss M6 X 20

250000829

$3.35

110

Hex. Forming Screw M6 X 20

207162060

$1.29

120

Flat Washer M6, Stainless

234062600

$0.77

130

Elastic Stop Nut M6, Brass

232561200

$4.23

400>400f

Kit Hinge | DR This part replaces 269501944.

295501248

$64.99

400f

Rubber Bumper

293830005

$8.09

400f

Rubber Bumper

293830005

$8.09

410

Socket Head Screw M6 X 90

205069060

$2.30

420

Flat Washer M6, Stainless

234062600

$0.77

430

Elastic Stop Nut M6, Brass

232561200

$4.23

440

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

450

Flat Washer M6, Stainless

234062600

$0.77
