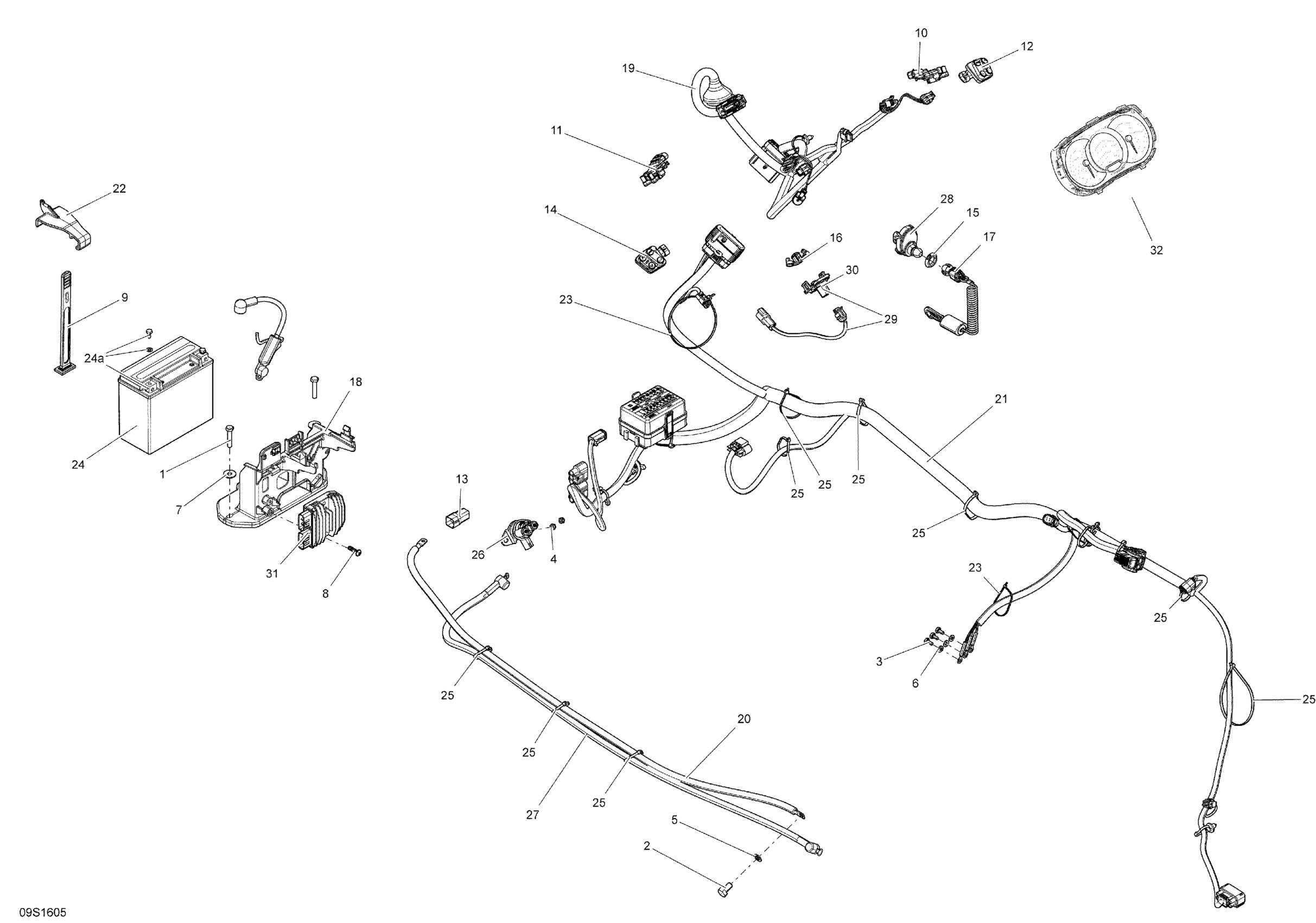

Description

Price

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Flat Washer 10 mm, Stainless

234000600

$1.22

6

Stainless Flat Washer M6

234061600

$0.28

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

Torx Screw Plastite M6

250000466

$6.45

9

Strap

269502417

$16.39

10

Throttle Position Sensor

278002283

$104.99

11

LH Throttle Sensor

278002284

$108.18

12

Switch RH Mode/Set

278002602

$115.64

13

Diagnostic Connector

278002704

$17.88

14

Switch LH VTS/Sport/Eco | Package STD

278002767

$116.39

15

Safety Nut (DESS Switch)

278002963

$3.12

16

O.T.A.S Actuator

278003537

$38.03

17

Safety Lanyard Ass'y, RFID

278003400

$67.13

17

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

18

Batt. Support | Except Engine 900HO ACE

278003136

$26.09

19

Steering Harness Ass'y

278003261

$282.06

20

Battery Ground Cable

278003270

$38.03

21

Main Harness

278003317

$1,044.00

22

Clip

278003521

$16.39

23

Tie Wrap 368 mm

293750008

$0.97

24

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

25

Tie-Rap 180 mm

414115200

$0.10

26

Starter Relay

278003012

$40.27

27

Cable-Starter

278003370

$35.79

28

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

29

O.T.A.S. Sensor Ass'y

278003009

$99.22

30

O.T.A.S. Sensor

278003008
