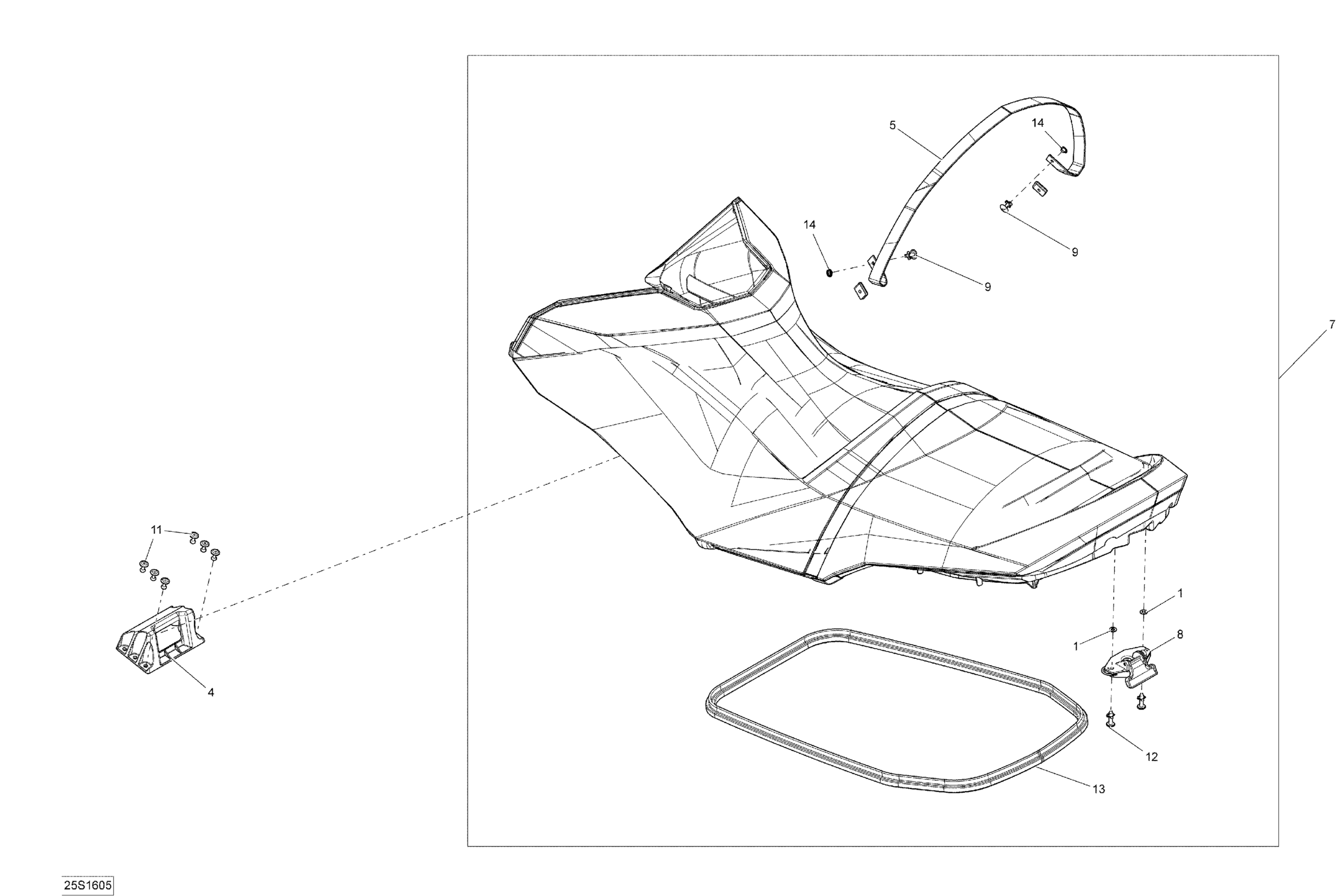

Sea-doo RXP, 2016 Seat Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.28

3

RH SEAT PROTECTOR - Call your local BRP dealership

269002350

Unavailable

4

Seat Receptacle

269002151

$13.81

5

Seat Strap | Package X

269002364

$20.99

5

SEAT STRAP - Call your local BRP dealership | Model White

269002787

Unavailable

7

Black / Red, Seat Ass'y | Model Red

269002901

$519.99

7

Seat Ass'y | Model White

269003018

$519.99

8

Latch Ass'y

269700109

$23.10

8

Latch Ass'y

269700109

$23.10

9

Rivet | Model-T3

293150067

$2.63

11

Pop Rivet 3/16"

293150123

$3.94

12

Rivet 1/4"

293150151

$7.42

13

Was 293200062 Seal

219704366

$70.87

14

Grommet

293720067

$10.55
