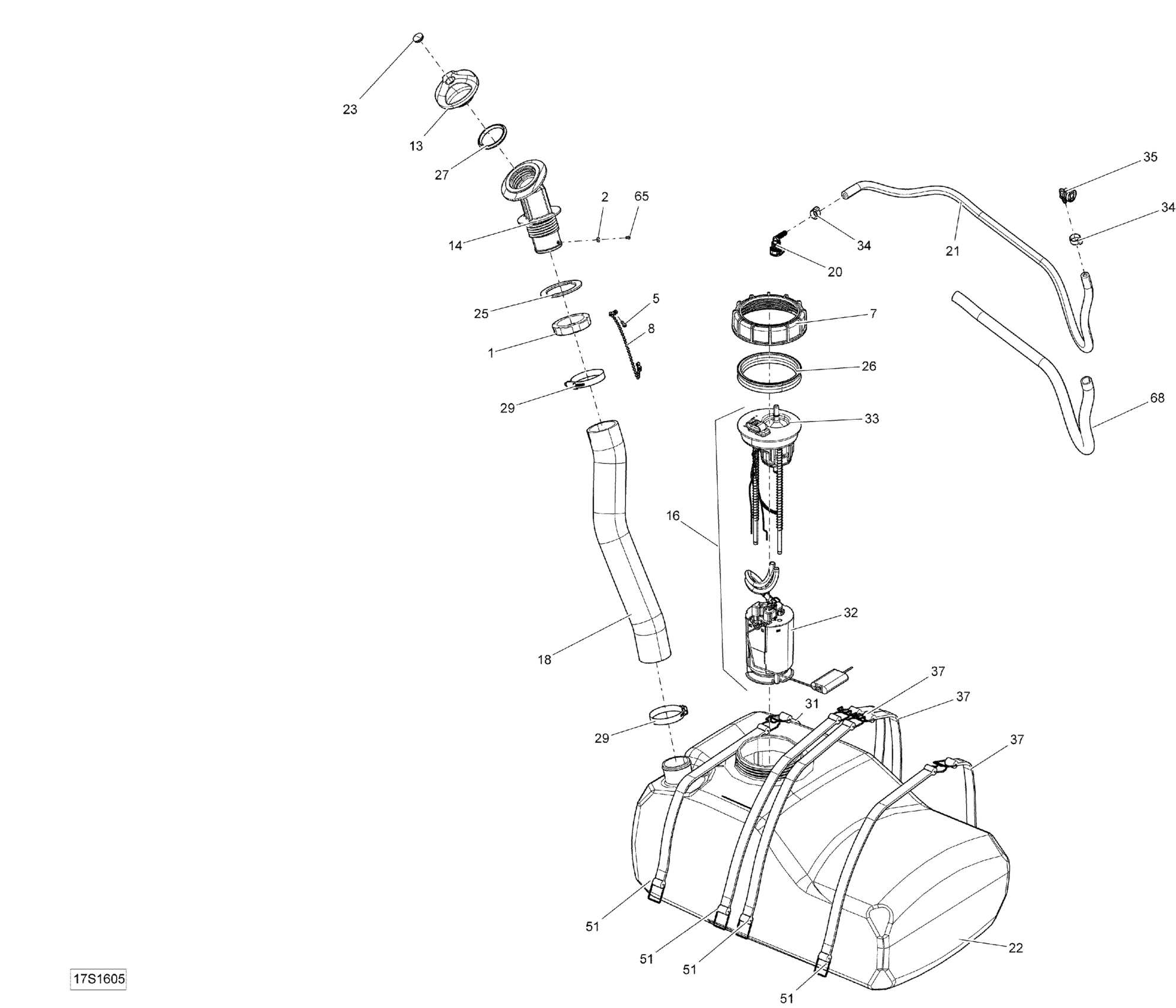

Sea-doo RXP, 2016 Fuel System Diagram

#

Description
Price

1

Filler Neck Nut, Fuel

211100012

$11.51

2

Flat Washer M3, Stainless

234032600

$0.52

5

Screw K40 X 10

241140060

$1.43

7

Special Nut M130

250100062

$20.12

8

Fuel Cap Chain

275500507

$15.64

13

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

14

Filler Neck

275500845

$36.54

16

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

18

Hose

275500918

$74.60

20

Quick Disconnect

275500921

$14.48

21

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

22

Fuel Tank

275500962

$320.87

23

Black, Snap Cap

293000034

$8.58

25

Gasket

293250029

$13.85

26

Gasket

293250173

$17.88

27

Gasket

293250417

$3.64

28

X-Ring

293300139

$22.36

29

Norma Clamp

293650081

$11.33

31

Fuel Tank Strap

293850087

$16.39

32

Sensor Lever

275500780

$202.21

33

Fuel Filter

270600113

$31.31

34

Crimp Clamp

293650053

$2.78

35

Elbow Fitting 90°

293710105

$12.15

37

Fuel Tank Strap

293850093

$19.37

51

Fuel Tank Strap

293850101

$15.64

65

Pop Rivet 1/8"

390407900

$1.34

68

Tubing 16 Mm 1000Mm Long

219704408

$7.15
