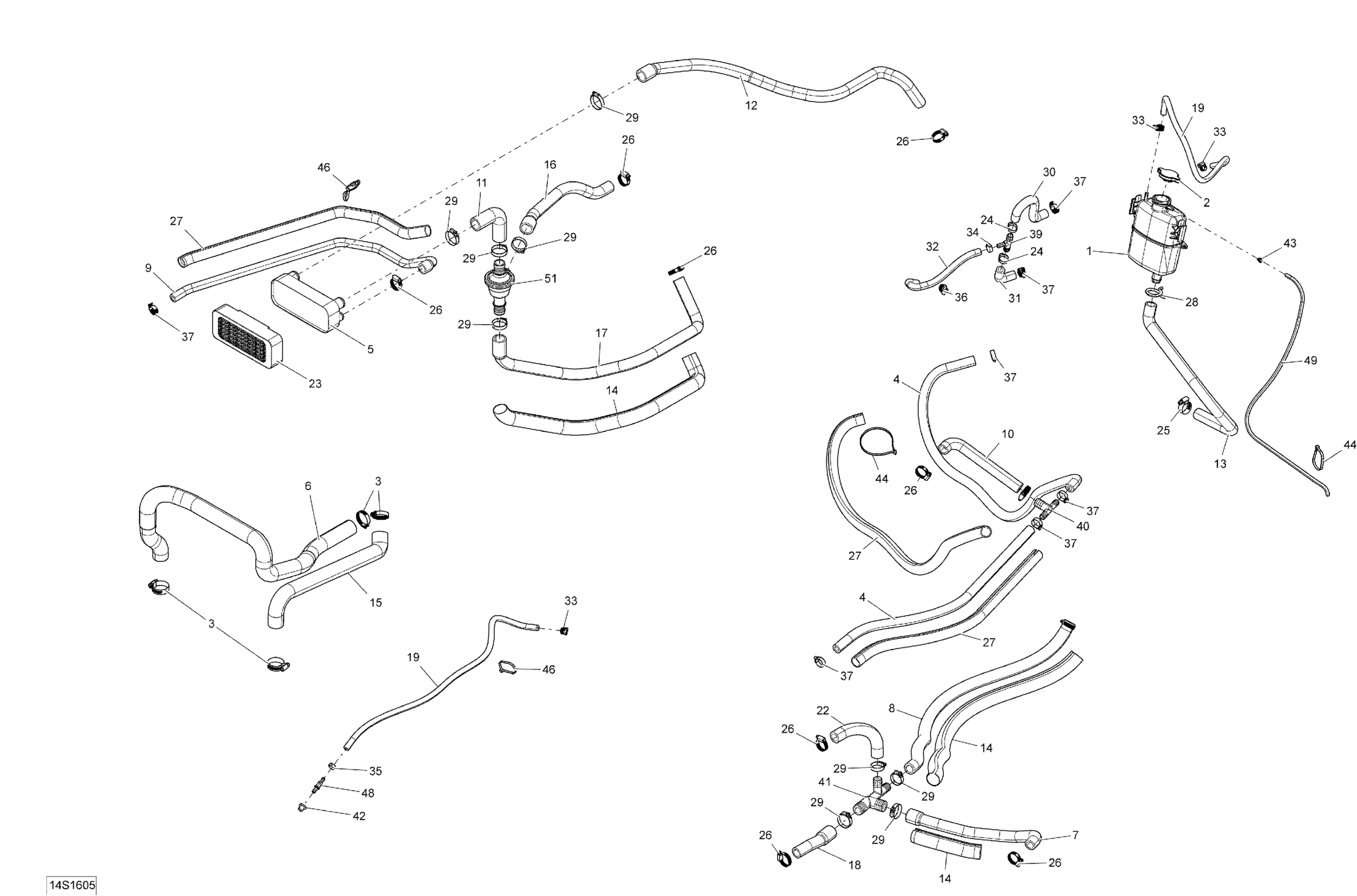

Sea-doo RXP, 2016 Cooling System Diagram

#

Description
Price

1

Coolant Tank

276000086

$100.72

2

Pressure Cap | Includes 720 to 720a

276000100

$23.85

3

Tridon Gear Clamp

293650185

$12.52

4

Was 276000001 Hose 12.5 mm

219704394

$49.22

5

COOLER - Call your local BRP dealership

276000336

Unavailable

6

Hose-Left

276000355

$61.16

7

Hose-Formed This part replaces 276000357.

276000495

$21.61

8

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

9

HOSE-FORMED - Call your local BRP dealership

276000360

Unavailable

10

HOSE-FORMED - Call your local BRP dealership

276000361

Unavailable

11

Hose

276000362

$26.84

12

Hose This part replaces 276000363.

276000499

$34.30

13

Hose, Coolant Tank Lower

276000486

$26.84

14

Tubing 25 MM 1000MM Long

219704402

$14.57

15

RH Radiator Hose

276000248

$52.21

16

Hose This part replaces 276000366.

276000500

$42.99

17

Hose

276000501

$26.84

18

Hose-Formed

276000376

Unavailable

19

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

19

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

22

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

23

Cooler Pad

278003329

$22.36

24

Oetiker Clamp

293650012

$5.67

25

Tridon Gear Clamp

293650019

$5.52

26

Tridon Gear Clamp

293650051

$4.15

27

Was 515175319 Tubing 22 mm

219704423

$13.60

28

Spring Clamp

293650115

$2.82

29

Hose Clamp

293650142

$3.85

30

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

31

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

32

Formed Hose | Without Catalyst

276000246

$17.13

33

Tridon Gear Clamp

293650170

$2.00

34

Oetiker Clamp | Europe

293650030

$4.96

35

Oetiker Gear Clamp

293650025

$2.82

36

Tridon Gear Clamp

293650171

$2.82

37

Tridon Gear Clamp

293650172

$3.07

39

T-Fitting

293710116

$16.39

40

T-Fitting

293710132

$10.88

41

Fitting-T

293710153

$14.06

42

Grommet

293720029

$1.30

43

Tie Wrap 94 mm | 4X4

293750001

$0.96

44

Tie Wrap 368 mm

293750008

$0.97

46

Tie-Rap 180 mm

414115200

$0.10

48

Male Connector

414518500

$4.01

49

Polyurethane Hose 10000Mm Long

219704410

$52.96

51

Thermostat

709200406

$88.78
