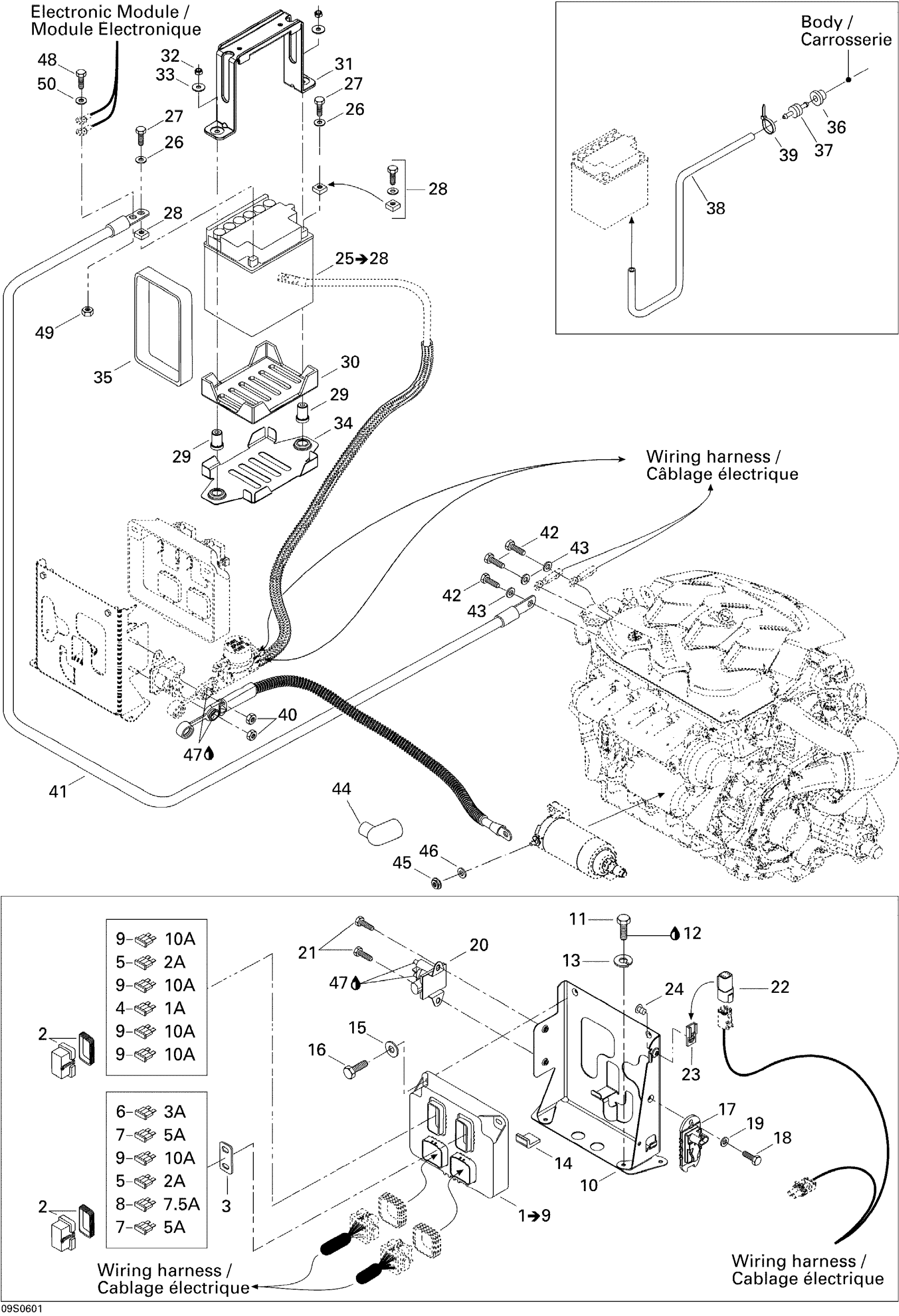

Sea-doo RXP, 2006 Electrical System Diagram

#

Description
Price

1

Multi Purpose Electronic Module, Mpem | Includes 1 to 9, GTI Rental

278002043

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

5

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.12

8

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

9

Fuse, 10 Amperes | North America

278001197

$2.06

10

Module Support

278002139

Unavailable

11

Hex. Screw 10-14 X 7/8”

211000023

$3.34

12

Loctite 271, 10 ml

293800005

$23.85

13

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

14

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

15

Flat Washer M6, Stainless

234062600

$0.73

16

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

17

Interrupter T.O.P.S.

278001992

$75.99

18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

19

Stainless Flat Washer M6

234061600

$0.28

20

Starter Relay

278003012

$40.27

21

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

22

Diagnostic Connector

278002704

$17.88

23

Clip

270000141

$9.57

24

Pop Rivet 3/16"

204000081

$1.31

25

Battery, 30 Amperes

278001882

$171.95

26

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

27

Hex. Screw M6 X 16

207161644

$0.70

28

Battery Bolt Kit

250000282

$3.39

29

BUSHING - Call your local BRP dealership

278001939

Unavailable

30

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

31

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

32

Hex. Elastic Nut M8 Brass

232581200

$1.48

33

Flat Washer 8 mm, Stainless

234082600

$2.27

34

BATTERY SUPPORT - Call your local BRP dealership

278001966

Unavailable

35

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

36

Grommet

293720029

$1.30

37

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

38

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

39

Tie Wrap 94 mm | 4X4

293750001

$0.96

40

Hex. Elastic Stop Nut M6

232561600

$1.06

41

BATTERY GROUND CABLE ASS'Y - Call your local BRP dealership

278001592

Unavailable

42

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

43

Stainless Flat Washer M6

234061600

$0.28

44

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

45

Elastic Stop Nut M6, Brass

232561200

$4.03

46

Stainless Flat Washer M6

234061600

$0.28

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Hex. Cap Screw M6 X 12

207161260

$1.21

49

Elastic Stop Nut M6, Brass

232561200

$4.03

50

Stainless Flat Washer M6

234061600

$0.28
