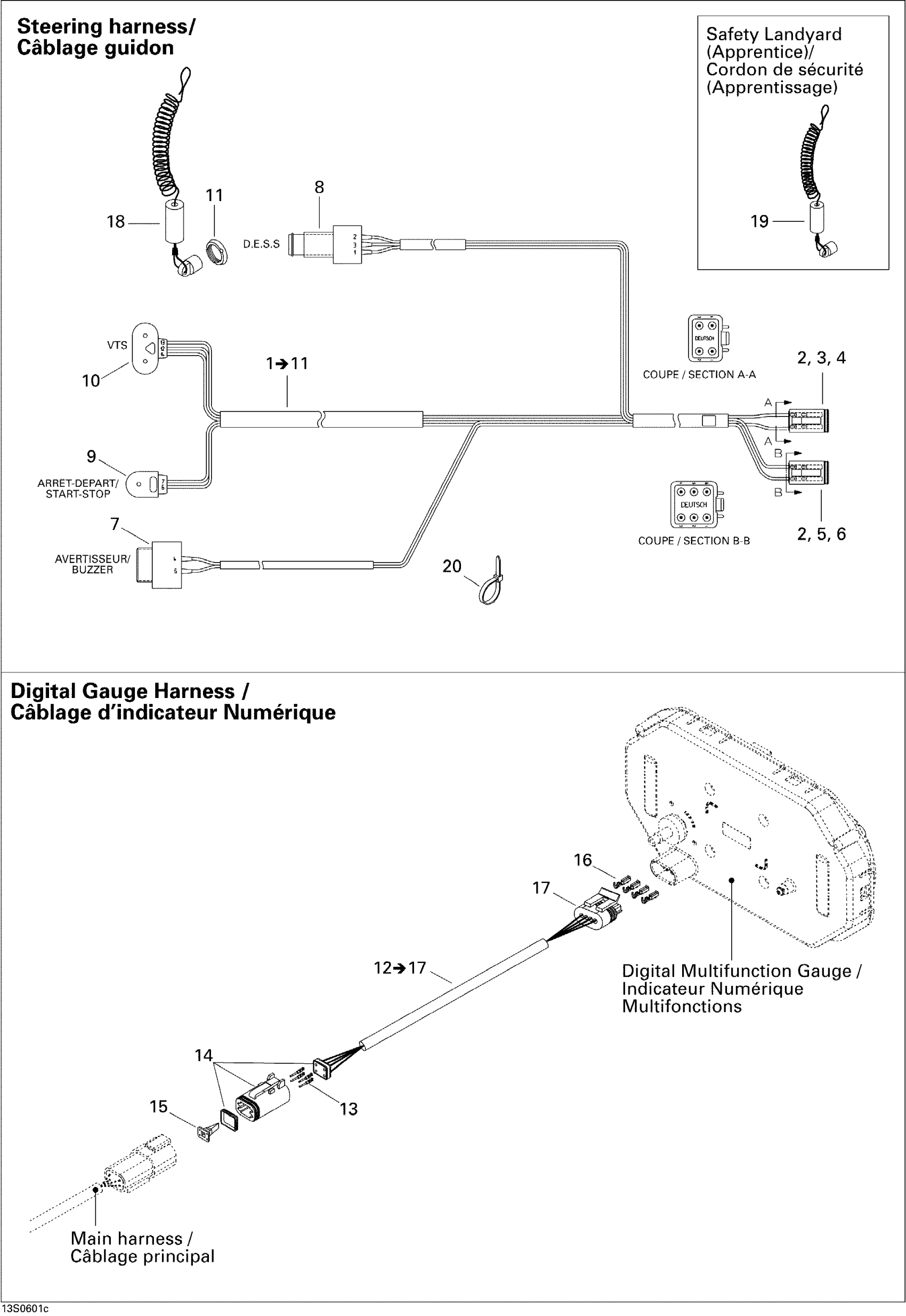

Sea-doo RXP, 2006 10- Electrical Harness 3 Diagram

#

Description
Price

1

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 11

278002110

Unavailable

2

Female Terminal

278000632

$2.09

3

Male Connector, 4 Circuits | CE

278000739

$19.49

4

Male Lock, 4 Circuits | CE

278000738

$3.09

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

6

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

7

BUZZER - Call your local BRP dealership

278001586

Unavailable

8

Safety Switch This part replaces 278002325.

278002773

$114.99

9

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

10

VTS SWITCH - Call your local BRP dealership | SERV

278002156

Unavailable

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

$49.99

13

Female Terminal

278000632

$2.09

14

Male Connector, 4 Circuits | CE

278000739

$19.49

15

Male Lock, 4 Circuits | CE

278000738

$3.09

16

Female Terminal

278001114

$3.19

17

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

18

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

19

Safety Lanyard, Learning Key

278002203

$56.99

20

Tie Wrap 142 mm

293750002

$1.25
