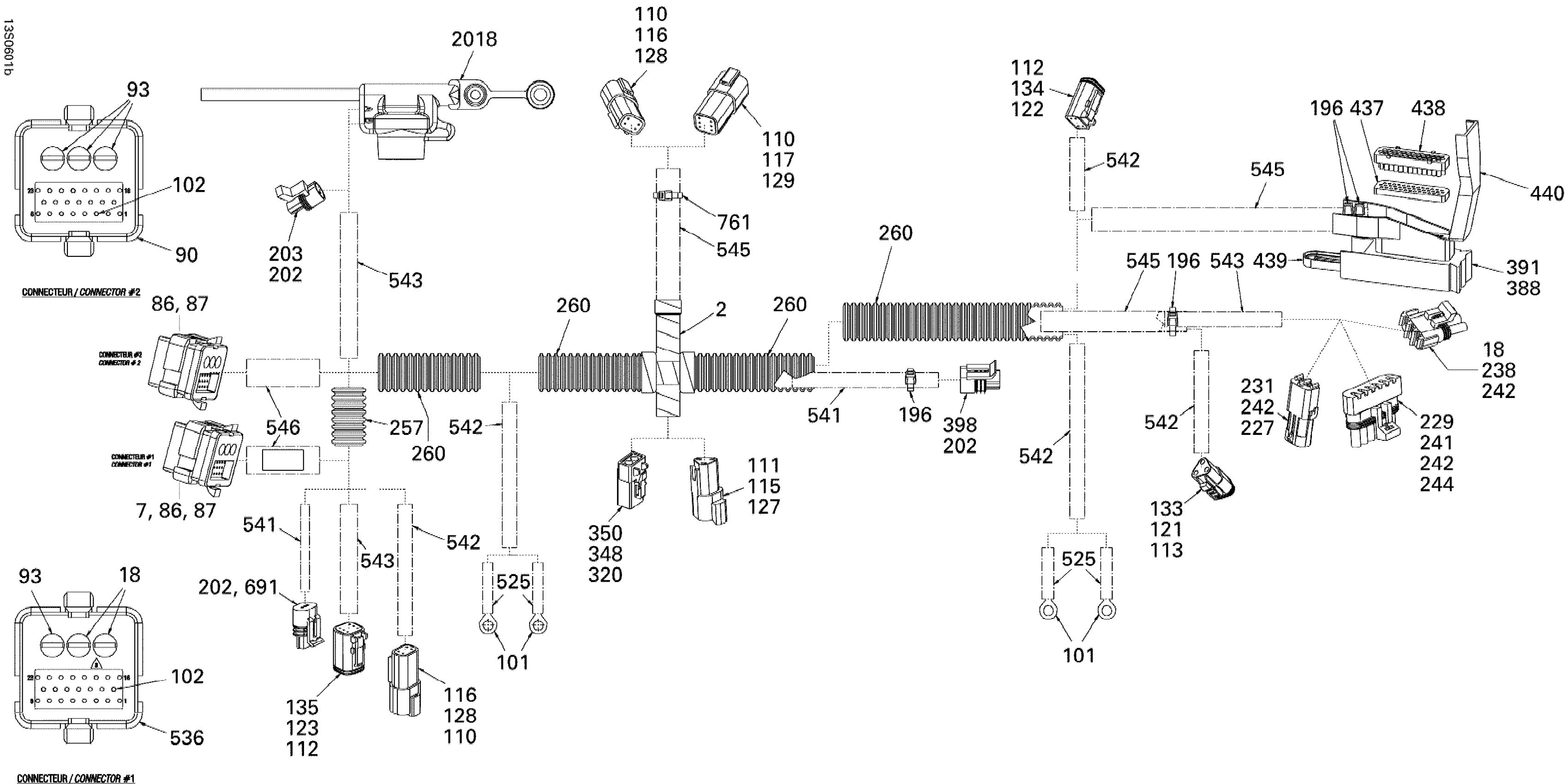

Sea-doo RXP, 2006 Electrical Harness 2 Diagram

#

Description
Price

1

HARNESS-REAR - Call your local BRP dealership | Includes 1 to 2018

278002120

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

7

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

18

Seal

278001223

Unavailable

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

87

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

93

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

101

Open Barrel Terminal

278001392

$4.00

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

110

Male Terminal

278000631

$4.00

111

Male Terminal

515175823

$4.28

112

Female Terminal

278000632

$1.94

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

114

Male Housing, 2 Circuits

409206900

$8.72

115

Male Housing

278002378

$12.52

116

Female Housing, 4 Circuits

278000635

$13.60

117

Male Terminal Housing, 6 Circuits

710001539

$17.88

120

Female Connector, 2 Circuits

409207300

$9.31

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

122

Male Connector, 4 Circuits | CE

278000739

$17.13

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

126

Male Lock, 2 Circuits

409207500

$2.93

127

Male Lock, 3 Circuits

409207600

$2.93

128

Female Wedge, 4 Circuits

278000636

$4.00

129

Female Lock, 6 Circuits

278000735

$2.93

133

Female Lock

409207200

$4.00

134

Male Lock, 4 Circuits | CE

278000738

$2.82

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

167

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

196

Tie Wrap 142 mm

293750002

$1.01

202

Female Terminal

278001114

$2.93

203

Male Connector, 2 Circuits

278001113

$14.52

227

Male Terminal

409004300

$5.30

229

Female Terminal

278000223

$2.93

231

Female Housing, 2 Circuits

278000217

$8.72

237

Male Connector, 2 Circuits

278000220

$12.66

238

Male Housing, 3 Circuits

278000273

$8.72

241

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

242

Wire Seal

278000218

$4.00

244

Wire Seal

278000216

$2.93

257

Was 409901600 Tubing 19mm

219704398

$87.28

260

Was 515175319 Tubing 22 mm

219704423

$13.60

348

Female Terminal Housing, 2 Circuits

278001673

$22.36

350

Female Lock, 2 Circuits

278001671

$3.12

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.25

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

619

BUS CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278001892

Unavailable

696

Connector, 3 Circuits

278002064

$24.60

761

Tie-Rap 173 mm

293750009

$0.97

2018

BATTERY CABLE - Call your local BRP dealership

278002137

Unavailable
