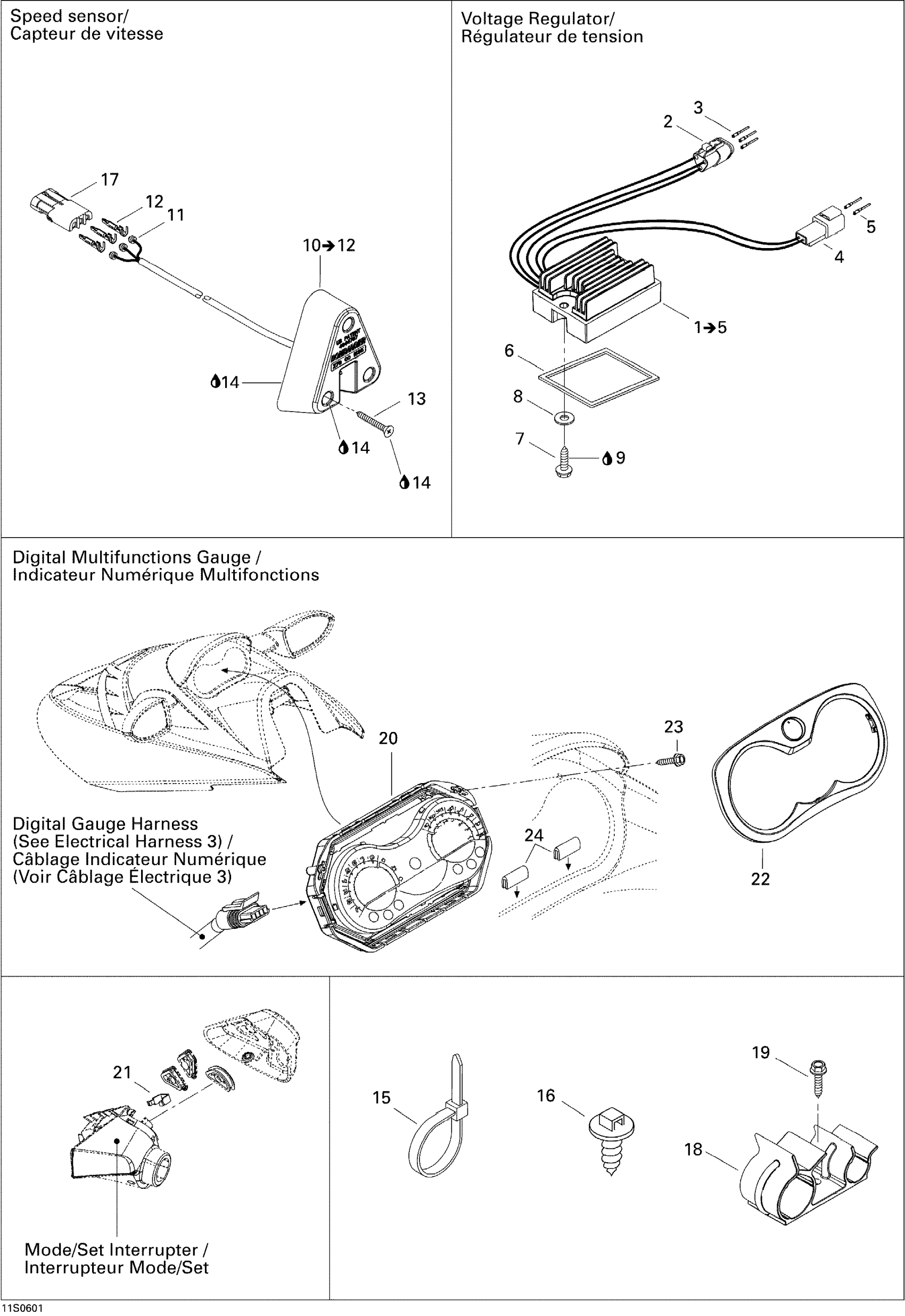

Sea-doo RXP, 2006 10- Electrical Accessories Diagram
#
Description
Price
1
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
$174.99
2
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
3
Male Terminal
278000631
$4.39
4
Male Housing, 2 Circuits
409206900
$9.59
5
Male Terminal
515175568
$9.12
6
SEAL - Call your local BRP dealership
293250123
Unavailable
7
Hex. Screw 10-14 X 7/8”
211000023
$3.59
8
Stainless Flat Washer M6
234061600
$0.33
9
Loctite 271, 10 ml
293800005
$26.99
10
Speed Sensor
278001993
$169.99
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
$36.99
15
Tie-Rap 180 mm
414115200
$0.11
15
Tie Wrap 368 mm
293750008
$1.04
15
Tie-Rap 206 mm
293750027
$2.89
16
Mount Dart
293730040
$1.04
17
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
18
RETAINER - Call your local BRP dealership
275500553
Unavailable
19
Hex. Flange Screw K40 X 16
241141660
$1.48
20
Digital Multifunction Gauge | SERV
278002270
$1.00
21
U Bracket
277001069
Unavailable
22
Gauge Bezel, Chrome
278002144
$38.99
23
Hex. Flange Screw K40 X 25
241142560
$2.64
24
TRIM - Call your local BRP dealership
293830113
Unavailable
