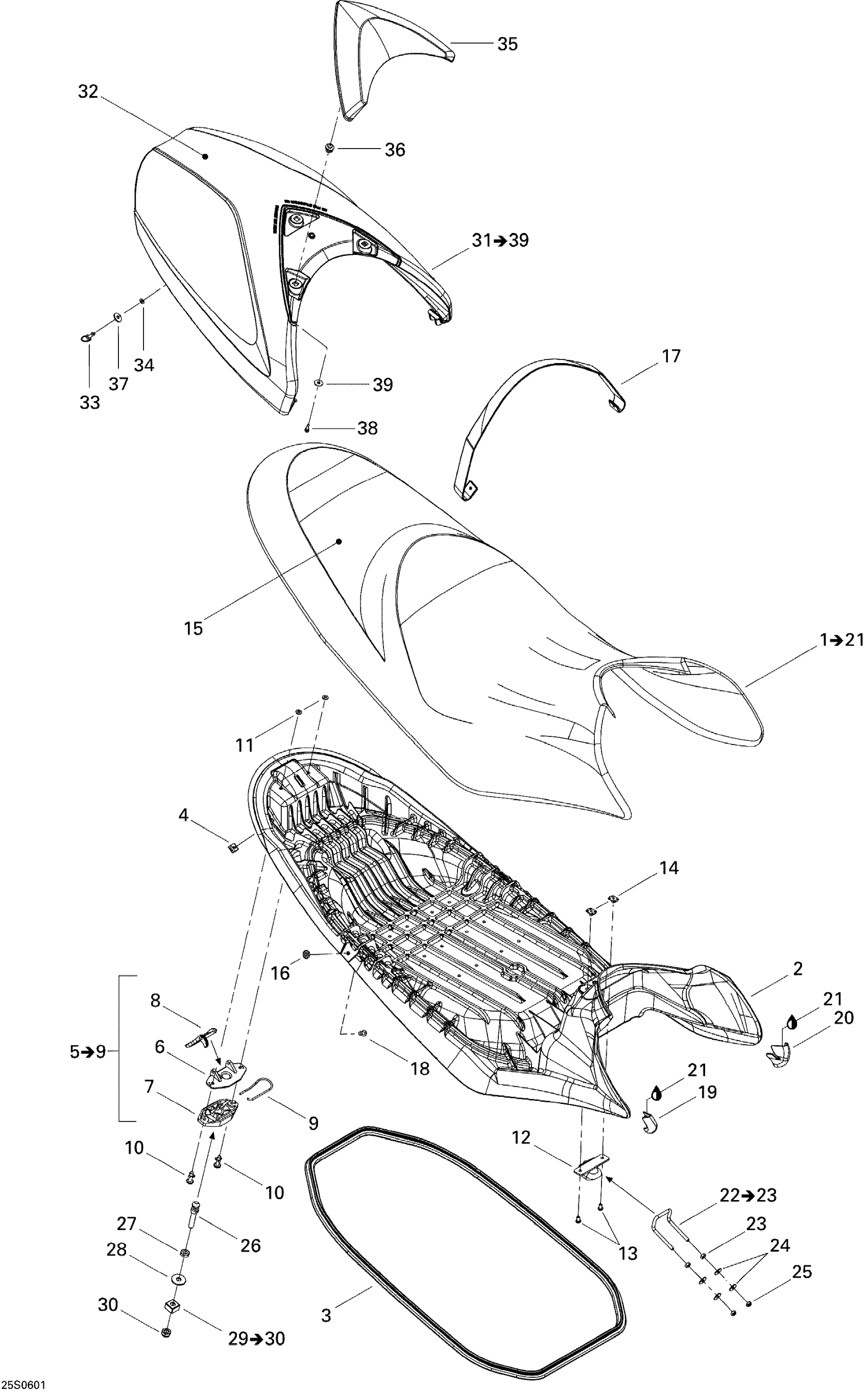

Sea-doo RXP, 2006 09- Seat Diagram
#
1
Seat Ass'y | Includes 1 to 21, Viper Red, B-267
269001198
Unavailable
1
Seat Ass'y | Includes 1 to 21, Maya Gold, B-270
269001362
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Was 293200062 Seal
219704366
$76.49
4
QUARTER-TURN NUT - Call your local BRP dealership
250100032
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Latch Ass'y
269700109
$24.99
7
Latch Ass'y
269700109
$24.99
8
Latch Ass'y
269700109
$24.99
9
Latch Spring
269700017
$9.19
10
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
11
Stainless Flat Washer M6
234061600
$0.33
12
SEAT HOOK - Call your local BRP dealership
291002012
Unavailable
13
Socket Head Screw M6 X 10, Scotch Grip
205961060
$1.48
14
Nut Welded, M6
293100003
$9.12
15
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Grommet
293720067
$12.99
17
Seat Strap | Viper Red, B-267
269001200
Unavailable
17
Seat Strap | Maya Gold, B-270
269001364
Unavailable
18
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
19
RH Seat Corner | Viper Red, B-267
269001201
Unavailable
19
RH Seat Corner | Maya Gold, B-270
269001365
Unavailable
20
LH Seat Corner | Viper Red, B-267
269001202
Unavailable
20
LH Seat Corner | Maya Gold, B-270
269001366
Unavailable
21
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
22
U-CLAMP ROD - Call your local BRP dealership | Includes 14 to 15
291001937
Unavailable
23
Hex. Nut M6
232061600
$1.15
24
Flat Washer M6, Stainless
234062600
$0.77
25
Elastic Stop Nut M6, Brass
232561200
$4.23
26
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
27
Hex. Jam Nut M10
232100600
$2.22
28
Flat Washer 10 mm, Stainless
234002600
$2.22
29
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
30
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
Seat Cover, Black & White
269000945
Unavailable
33
Screw
250100033
Unavailable
34
NYLON WASHER - Call your local BRP dealership
250200023
Unavailable
35
SEAT COVER, BLACK - Call your local BRP dealership
269001304
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Washer
517302265
Unavailable
38
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
