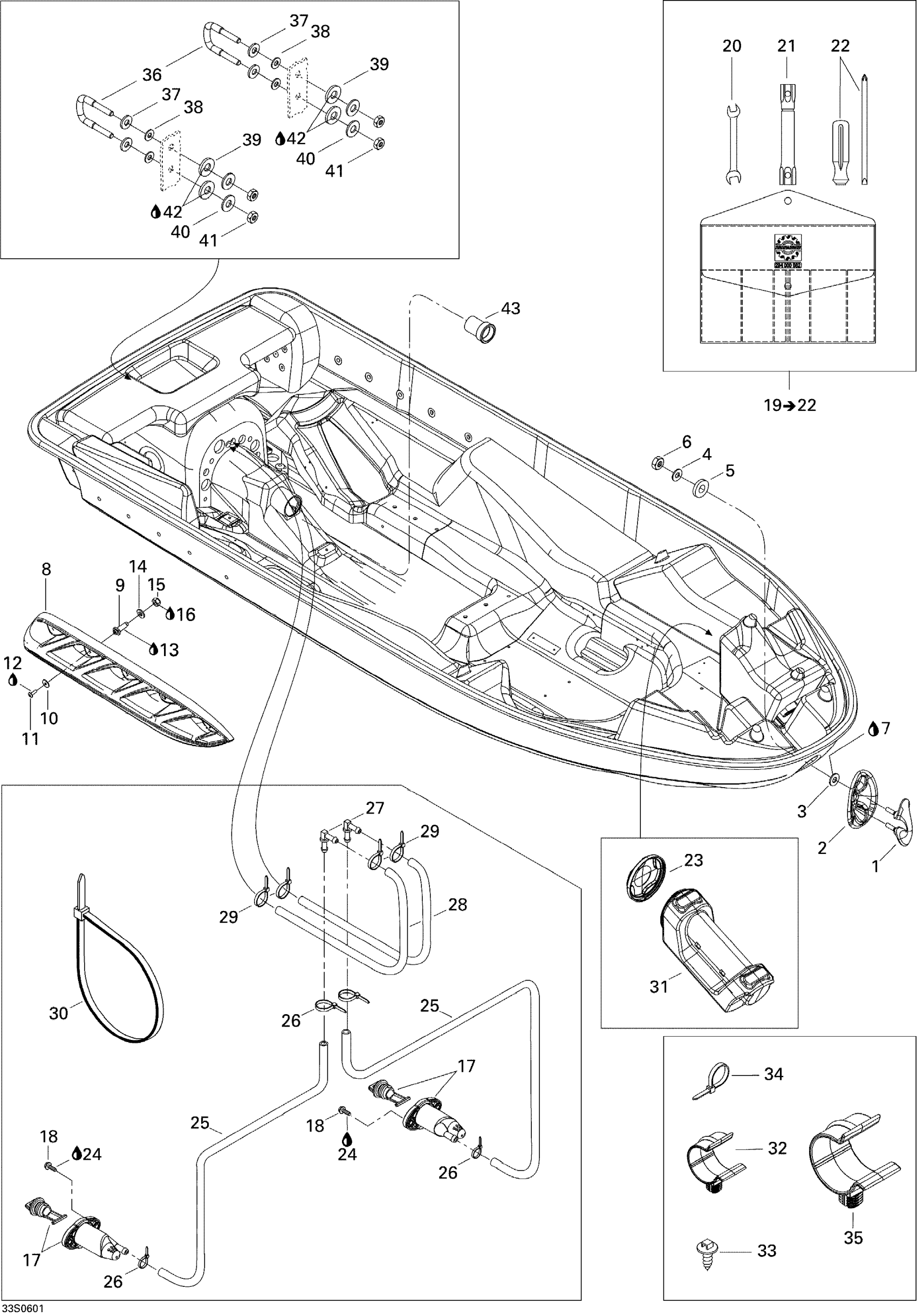

Sea-doo RXP, 2006 09- Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Sponson
292001878
$93.99
8
LH Sponson
292001877
$93.99
9
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
10
Flat Washer M6.6 X 22
250200022
$2.72
11
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
12
Loctite 243, 10 ml
293800060
$21.49
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
15
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
16
Loctite 243, 10 ml
293800060
$21.49
17
Drain Plug
292001252
$36.99
18
Hex. Screw 10-14 X 7/8”
211000023
$3.59
19
TOOL KIT - Call your local BRP dealership | Includes 43 to 46
294000744
Unavailable
20
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
21
Socket Wrench
529035731
Unavailable
22
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
23
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
24
Silicone Sealant 51388, 300 ml
296000309
$36.99
25
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
26
Tie Wrap 94 mm | 4X4
293750001
$1.03
27
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
28
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
29
Tie Wrap 94 mm | 4X4
293750001
$1.03
30
Tie Wrap 368 mm
293750008
$1.04
31
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
32
Cable Retainer
275500527
$2.68
33
Mount Dart
293730040
$1.04
34
Tie-Rap 180 mm
414115200
$0.11
35
Retainer
275500590
$9.69
36
U-Clamp
292000933
$59.49
37
Flat Washer M8.5 x 18
293050001
$3.07
38
Flat Washer 8 mm, Nylon
234081100
$1.39
39
Rubber Washer
293830037
$2.68
40
Flat Washer 8 mm, Stainless
250200175
$3.06
41
Hex. Elastic Nut M8 Brass
232581200
$2.22
42
Silicone Sealant 51388, 300 ml
296000309
$36.99
43
HULL INSERT, 50 MM - Call your local BRP dealership
292000974
Unavailable
