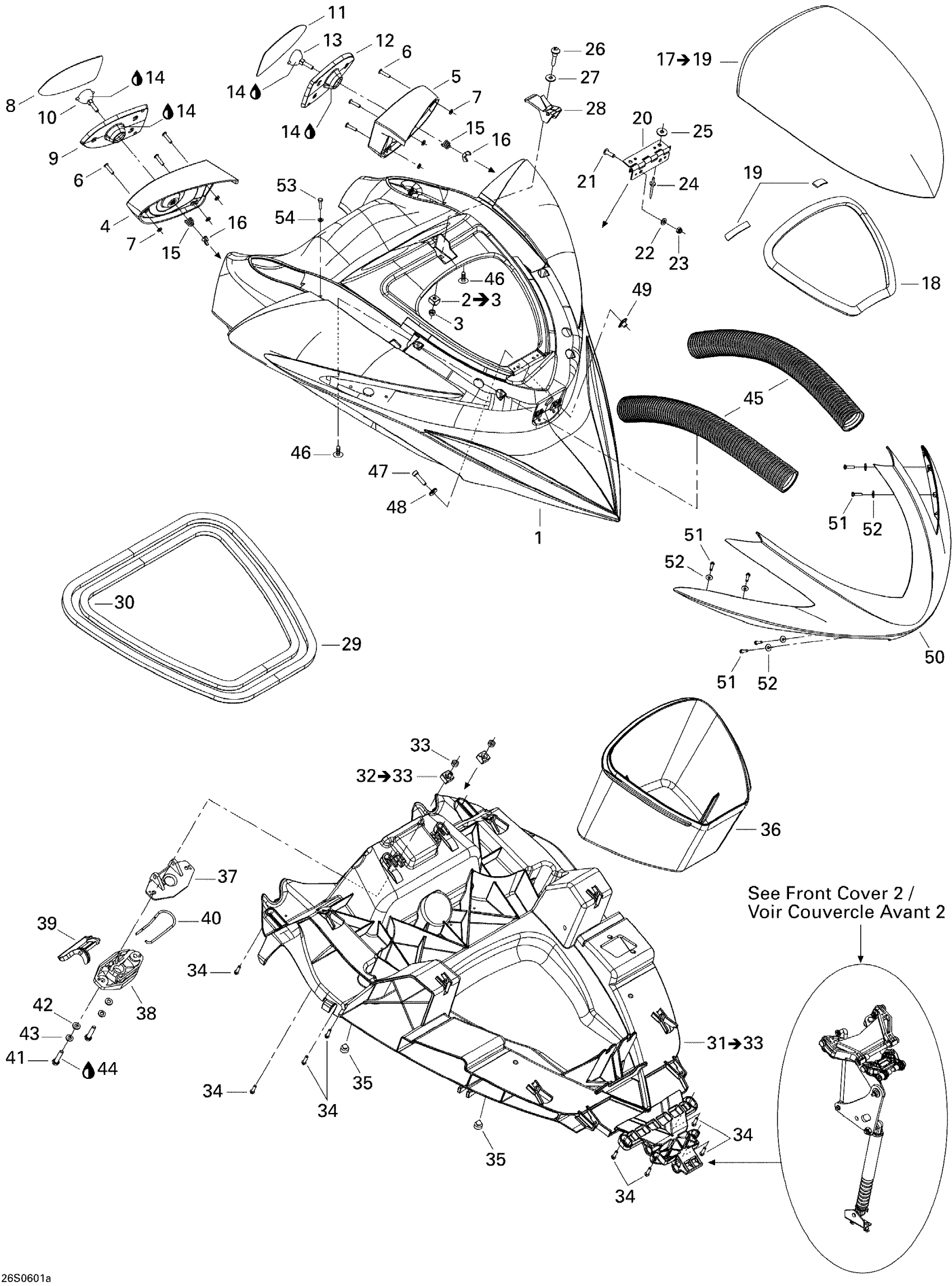

Sea-doo RXP, 2006 09- Front Cover 1 Diagram
#
1
Upper Storage Cover, Gold Maya | Maya Gold, B-270
269501448
Unavailable
1
Upper Storage Cover, Viper Red | Viper Red, B-270
269501474
Unavailable
2
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
3
Elastic Stop Nut M6, Brass
232561200
$4.23
4
Maya Gold, RH Mirror Housing | Maya Gold, B-270
269501449
Unavailable
4
RH Mirror Housing, Viper Red | Viper Red, B-270
269501368
Unavailable
5
Maya Gold, LH Mirror Housing | Maya Gold, B-270
269501450
Unavailable
5
LH MIRROR HOUSING, VIPER RED - Call your local BRP dealership | Viper Red, B-270
269501369
Unavailable
6
Pop Rivet 3/16"
293150005
$0.52
7
Flat Washer, Emhart
213200016
$0.72
8
RH Mirror
269500687
Unavailable
9
Frame Mirror
269500697
Unavailable
10
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
11
LH MIRROR - Call your local BRP dealership
269500788
Unavailable
12
Frame Mirror
269500697
Unavailable
13
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
14
Synthetic Grease, 400 G
293550010
Unavailable
15
Mirror Spring
269500453
$10.49
16
WING NUT M6 - Call your local BRP dealership
232661600
Unavailable
17
Access Cover Ass'y
269501513
Unavailable
18
Gasket, Neoprene 2000Mm Long
219704476
$15.36
19
Seal Tray 1000Mm Long
219704368
$13.99
20
HINGE - Call your local BRP dealership
269500338
Unavailable
21
Socket Head Screw M5 X 16
205451660
$1.15
22
Flat Washer | XT
211200035
$0.55
23
Elastic Stop Nut 5 mm
232551200
$1.47
24
Pop Rivet 3/16"
204000081
$1.49
25
Flat Washer 5 mm, Stainless
234052600
$0.77
26
ANCHORING STUD - Call your local BRP dealership
291001242
Unavailable
27
Flat Washer M6, Stainless
234062600
$0.77
28
Latch
269501487
$16.99
29
Was 293200017 Neoprene Seal
219704365
$149.99
30
Was 293200017 Neoprene Seal
219704365
$149.99
31
LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30
269501379
Unavailable
32
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
33
Hex. Nut M6
232061600
$1.15
34
Hex. Flange Screw K40 X 13
241141360
$0.67
35
Rubber Bumper
293830005
$8.09
36
STORAGE BOX - Call your local BRP dealership
269501133
Unavailable
37
Latch Ass'y
269700109
$24.99
38
Latch Ass'y
269700109
$24.99
39
Latch Ass'y
269700109
$24.99
40
Latch Spring
269700017
$9.19
41
Hex. Screw M6 X 30
207063060
$1.89
42
Stainless Flat Washer M6
234061600
$0.33
43
Lock Washer Helical M6
234161601
$1.15
44
Loctite 243, 10 ml
293800060
$21.49
45
VENTILALTION HOSE (BLACK) - Call your local BRP dealership
291002489
Unavailable
46
Black, Dart
293730011
$0.99
47
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
48
Flat Washer M6, Stainless
234062600
$0.77
49
Nut Welded, M6
293100003
$9.12
50
Front Grille
269501238
$154.99
51
Hex. Flange Screw K40 X 16
241141660
$1.48
52
Flat Washer 4 mm, Stainless
234042600
$1.15
53
Plastite Hex. Screw M6.8 X 35
243163560
$4.44
54
Flat Washer M6, Stainless
234062600
$0.77
