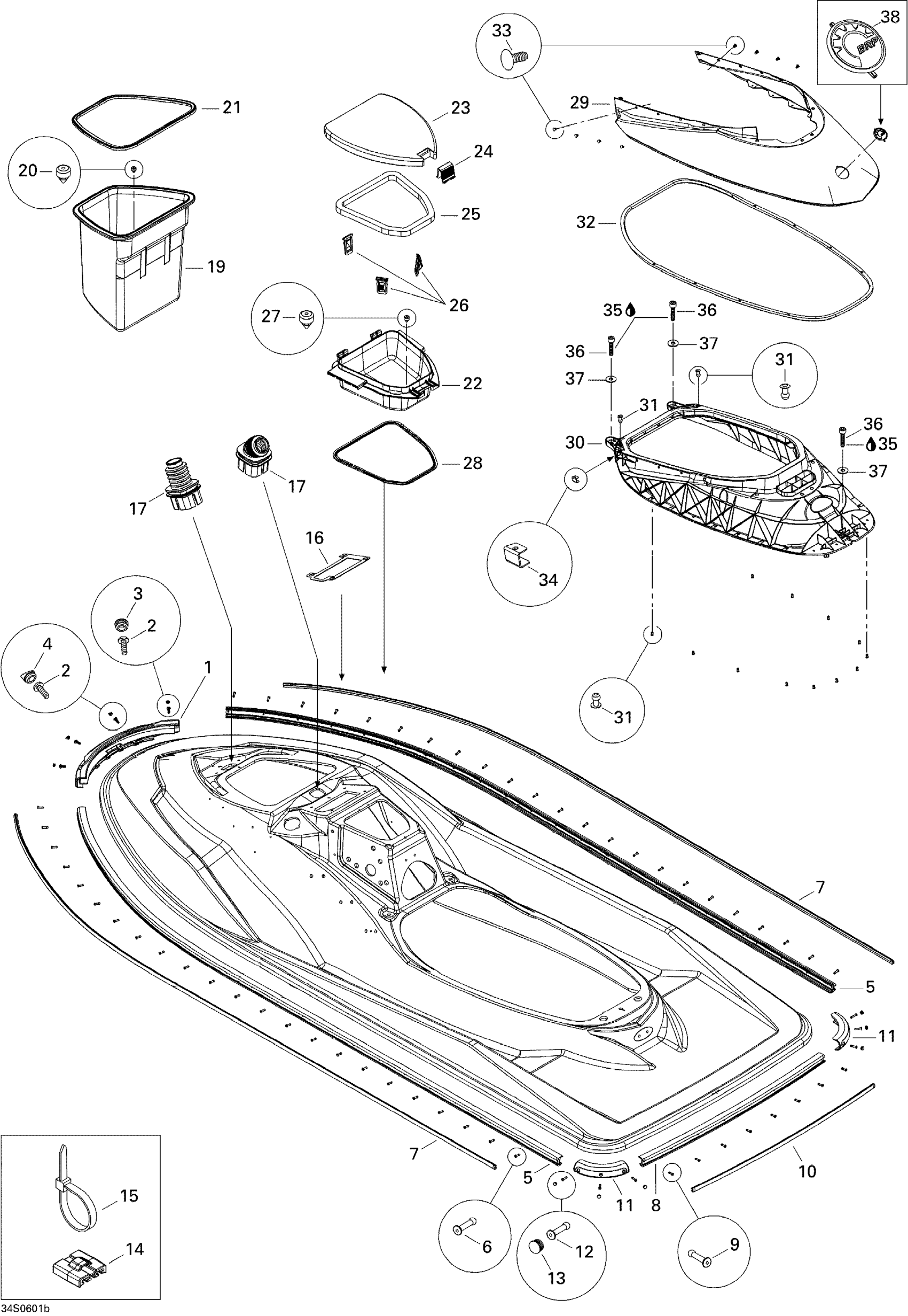

Sea-doo RXP, 2006 09- Body 2 Diagram
#
Description
Price
1
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
2
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
3
Bumper Plug, Black
291001519
$5.49
4
Bumper Plug, Black
291001040
$7.39
5
Black, Side Bumper
204050270
$179.99
6
Pop Rivet 3/16"
293150005
$0.52
7
SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership | Viper Red
291002110
Unavailable
7
Side Bumber Trim, Maya Gold | Maya Gold
291002330
Unavailable
8
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
9
Pop Rivet 3/16"
293150005
$0.52
10
Rear Bumper Trim, Viper Red | Viper Red
291002111
Unavailable
10
REAR BUMPER TRIM, MAYA GOLD - Call your local BRP dealership | Maya Gold
291002331
Unavailable
11
Bumper Corner
291002244
$48.99
12
Pop Rivet 3/16"
293150013
$1.37
13
Bumper Plug, Black
291000339
$2.99
14
Tie-Rap Mount
293750025
$1.25
15
Tie-Rap 180 mm
414115200
$0.11
16
GASKET - Call your local BRP dealership
293250171
Unavailable
17
GROMMET - Call your local BRP dealership
293720042
Unavailable
19
STORAGE TRAY - Call your local BRP dealership
269500691
Unavailable
20
Rubber Bumper
293830005
$8.09
21
Seal Tray 1000Mm Long
219704368
$13.99
22
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
23
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
24
LATCH - Call your local BRP dealership
269500719
Unavailable
25
GASKET - Call your local BRP dealership
293250100
Unavailable
26
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
27
Rubber Bumper
293830005
$8.09
28
Was 293250099 Gasket
219704377
$7.20
29
UPPER ENGINE COVER - Call your local BRP dealership
291002618
Unavailable
30
LOWER ENGINE COVER - Call your local BRP dealership
291002542
Unavailable
31
Pop Rivet 3/16"
293150088
$0.99
32
Seal Tray 1000Mm Long
219704368
$13.99
33
Black, Dart
293730016
$9.97
34
INSERT - Call your local BRP dealership
293450259
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
37
Flat Washer 8 mm, Stainless
234082600
$2.43
38
BUMPER PLUG - Call your local BRP dealership
291002226
Unavailable
