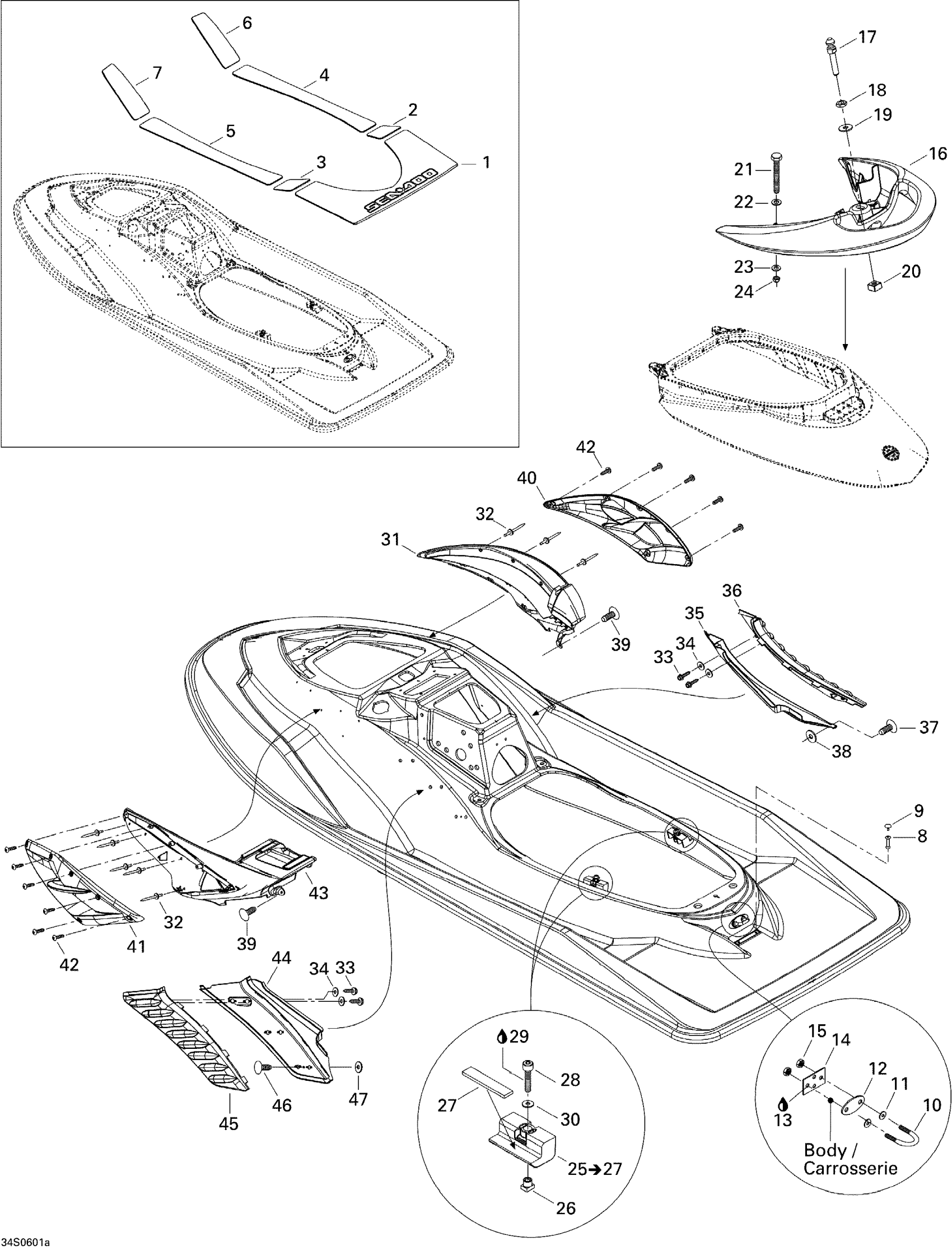

Sea-doo RXP, 2006 09- Body 1 Diagram
#
1
ANTI SLIP MAT_DECK - Call your local BRP dealership
291002333
Unavailable
2
RH Rear Carpet
291002388
Unavailable
3
LH Rear Carpet
291002389
Unavailable
4
RH Center Carpet
291002390
Unavailable
5
LH Center Carpet
291002391
Unavailable
6
RH Front Carpet
291002392
Unavailable
7
LH Front Carpet
291002393
Unavailable
8
Rivet 1/8"
293150016
$0.40
9
Black, Snap Cap
293000014
$1.09
10
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
11
Flat Washer M8.5 x 18
293050001
$3.07
12
Black, Finition Plate
291001386
$10.99
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
15
Hex. Elastic Nut M8 Brass
232581200
$2.22
16
GRAB HANDLE, VIPER RED - Call your local BRP dealership | Viper Red
269001193
Unavailable
16
GRAB HANDLE, MAYA GOLD - Call your local BRP dealership | Maya Gold
269001367
Unavailable
17
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
18
Hex. Jam Nut M10
232100600
$2.22
19
Flat Washer 10 mm, Stainless
234002600
$2.22
20
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
21
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
22
Stainless, Flat Washer 8 mm
234081600
$0.55
23
Flat Washer 8 mm, Stainless
234082600
$2.43
24
Hex. Elastic Nut M8 Brass
232581200
$2.22
25
Link Bridge Ass'y
291001931
$26.99
26
Square Nut M8
211100033
$17.99
27
Pad
291001932
$10.99
28
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
29
Loctite 243, 10 ml
293800060
$21.49
30
Flat Washer 8 mm, Stainless
234082600
$2.43
31
RH Upper Moulding, Viper Red | Viper Red
291002104
Unavailable
31
RH UPPER MOULDING, MAYA GOLD - Call your local BRP dealership | Maya Gold
291002336
Unavailable
32
Pop Rivet 3/16"
293150123
$4.29
33
Hex. Screw 10-14 X 7/8”
211000023
$3.59
34
Flat Washer, Stainless/Neoprene
211200055
$0.73
35
RH Moulding, Viper Red | Viper Red
291002107
Unavailable
35
RH Moulding, Maya Gold | Maya Gold
291002338
Unavailable
36
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
37
Black, Dart
293730006
$0.99
38
Rubber Washer 5 mm
250200024
$2.19
39
Black, Dart
293730006
$0.99
40
RH GRILL - Call your local BRP dealership
273000218
Unavailable
41
LH GRILL - Call your local BRP dealership
273000219
Unavailable
42
Allen Plastite Screw #12
250000099
$2.19
43
LH Upper Moulding, Viper Red | Viper Red
291002105
Unavailable
43
LH Upper Moulding, Maya Gold | Maya Gold
291002339
Unavailable
44
LH Moulding, Viper Red | Viper Red
291002109
Unavailable
44
LH Moulding, Maya Gold | Maya Gold
291002341
Unavailable
45
LH KNEE PAD, SILVER - Call your local BRP dealership
269001292
Unavailable
46
Black, Dart
293730006
$0.99
47
Rubber Washer 5 mm
250200024
$2.19
