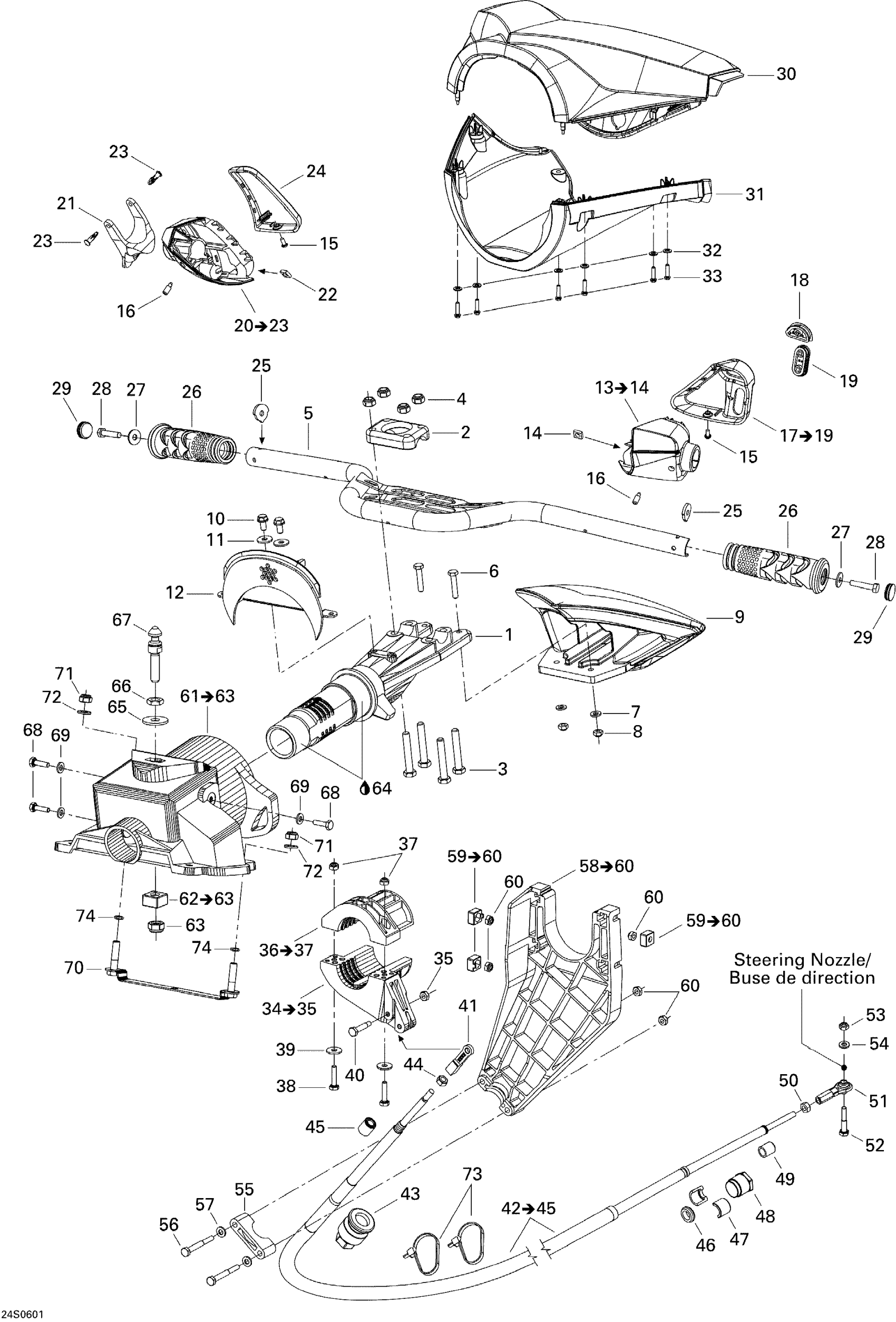

Sea-doo RXP, 2006 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8 Brass
232581200
$2.22
5
Handlebar
277001460
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Elastic Stop Nut M6, Brass
232561200
$4.23
9
Handle Pad | Viper Red, B-267
277001345
Unavailable
9
HANDLE PAD - Call your local BRP dealership | Maya Gold, B-270
277001429
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
$9.00
17
HOUSING COVER ASS'Y LH - Call your local BRP dealership | Includes 17 to 19
277001442
Unavailable
18
Stop Knob
278001713
$18.49
19
VTS KNOB - Call your local BRP dealership
278002066
Unavailable
20
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
21
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
22
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
23
PIN - Call your local BRP dealership
277000381
Unavailable
24
HOUSING COVER - Call your local BRP dealership
277001355
Unavailable
25
Insert Grip Handle
277001863
$8.83
26
Handle Grip, Slate Grey
277001336
$19.49
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
29
Black, Cap
277000203
$9.39
30
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
31
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
32
Flat Washer M5, Stainless
234051600
$0.77
33
Hex. Flange Screw K40 X 16
241141660
$1.48
34
STEERING STEM ARM - Call your local BRP dealership | Includes 33 to 34
277001472
Unavailable
35
Hex. Elastic Stop Nut M6
232561600
$1.15
36
Arm Thrust
277001473
Unavailable
37
Hex. Elastic Stop Nut M6
232561600
$1.15
38
Hex. Screw M6 X 25
207162560
$1.47
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Screw M6 X 30
211000081
$3.59
41
Ball Joint
277001180
$35.99
42
Steering Cable | Includes 42 to 45
277001431
Unavailable
43
Ajustment Knob
277000782
$22.99
44
Hex. Nut 1/4"-28
211100056
$0.69
45
Terminal Wiper
277000441
$11.99
46
Rubber Washer
293830063
$1.90
47
Half Ring
277001527
$10.37
48
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
49
Terminal Wiper
277000441
$11.99
50
Hex. Nut 1/4"-28
211100056
$0.69
51
Ball Joint
277000775
$51.99
52
Hex. Screw M6 X 35
207063560
$2.22
53
Elastic Stop Nut M6, Brass
232561200
$4.23
54
Stainless Flat Washer M6
234061600
$0.33
55
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
56
Hex. Screw M6 X 50
207065060
$2.22
57
Stainless Flat Washer M6
234061600
$0.33
58
CABLE SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001470
Unavailable
59
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
60
Hex. Elastic Stop Nut M6
232561600
$1.15
61
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
62
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
63
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
64
Synthetic Grease, 400 G
293550010
Unavailable
65
Flat Washer 10 mm, Stainless
234002600
$2.22
66
Hex. Jam Nut M10
232100600
$2.22
67
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
68
Hex. Forming Screw M6 X 20
207162060
$1.29
69
Stainless Flat Washer M6
234061600
$0.33
70
Steering Support
277001000
Unavailable
71
Hex. Elastic Nut M8 Brass
232581200
$2.22
72
Stainless, Flat Washer 8 mm
234081600
$0.55
73
Tie Wrap 368 mm
293750008
$1.04
74
O-Ring
293300123
$1.03
