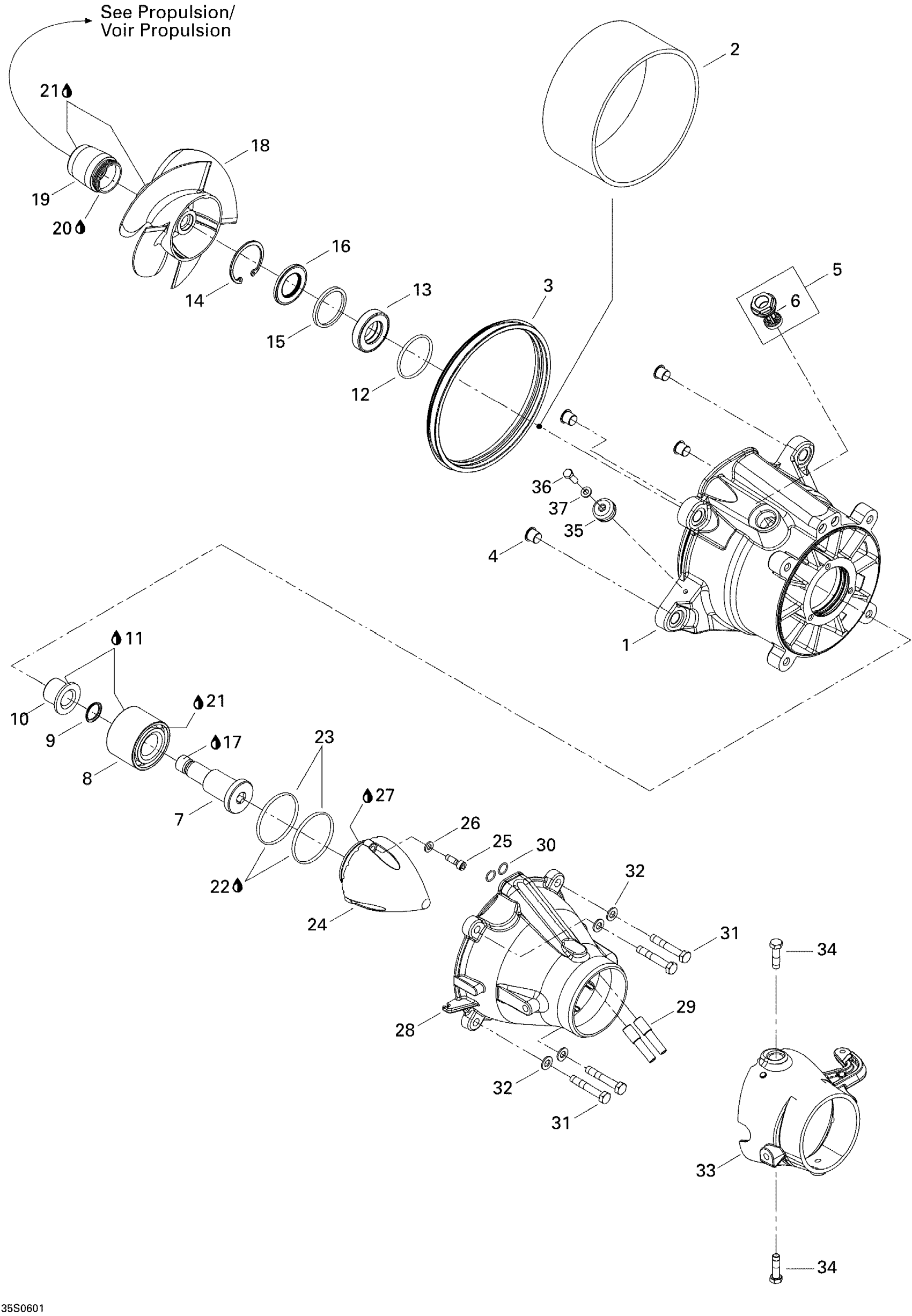

Sea-doo RXP, 2006 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000372

$84.99

3

Neoprene Seal

293200087

$12.63

4

Bushing

267000093

$9.59

5

Plug | Includes 370z to 370z1

267000282

$19.49

6

Plug | Includes 370z to 370z1

267000282

$19.49

7

Impeller Shaft

267000054

$116.49

8

Angled Bearing This part replaces 267000030.

267000900

$80.99

9

O-Ring

505070315

$2.85

10

Shaft Sleeve

267000318

$134.99

11

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

12

O-Ring

293300090

$7.20

13

Seal

271002071

$33.99

14

Circlip

293370038

$8.79

15

Spacer

271001393

$8.59

16

Oil Seal

293200089

$19.99

17

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

18

Impeller Ass'y This part replaces 267000249.

267000697

$391.99

19

Guard

271002228

$12.99

20

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

21

Synthetic Grease, 400 G

293550010

Unavailable

22

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

23

O-Ring

293300086

$3.59

24

Impeller Cover

267000262

$21.99

25

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

26

Stainless Flat Washer M6

234061600

$0.33

27

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

28

VENTURI - Call your local BRP dealership

267000216

Unavailable

29

Siphon Tube

271001133

$10.99

30

O-Ring

293300013

$8.18

31

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207384060

Unavailable

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

STEERING NOZZLE, BLACK - Call your local BRP dealership | RXP

267000550

Unavailable

34

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

35

Anode Zinc

271001813

$18.99

36

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

37

Stainless Flat Washer M6

234061600

$0.33
