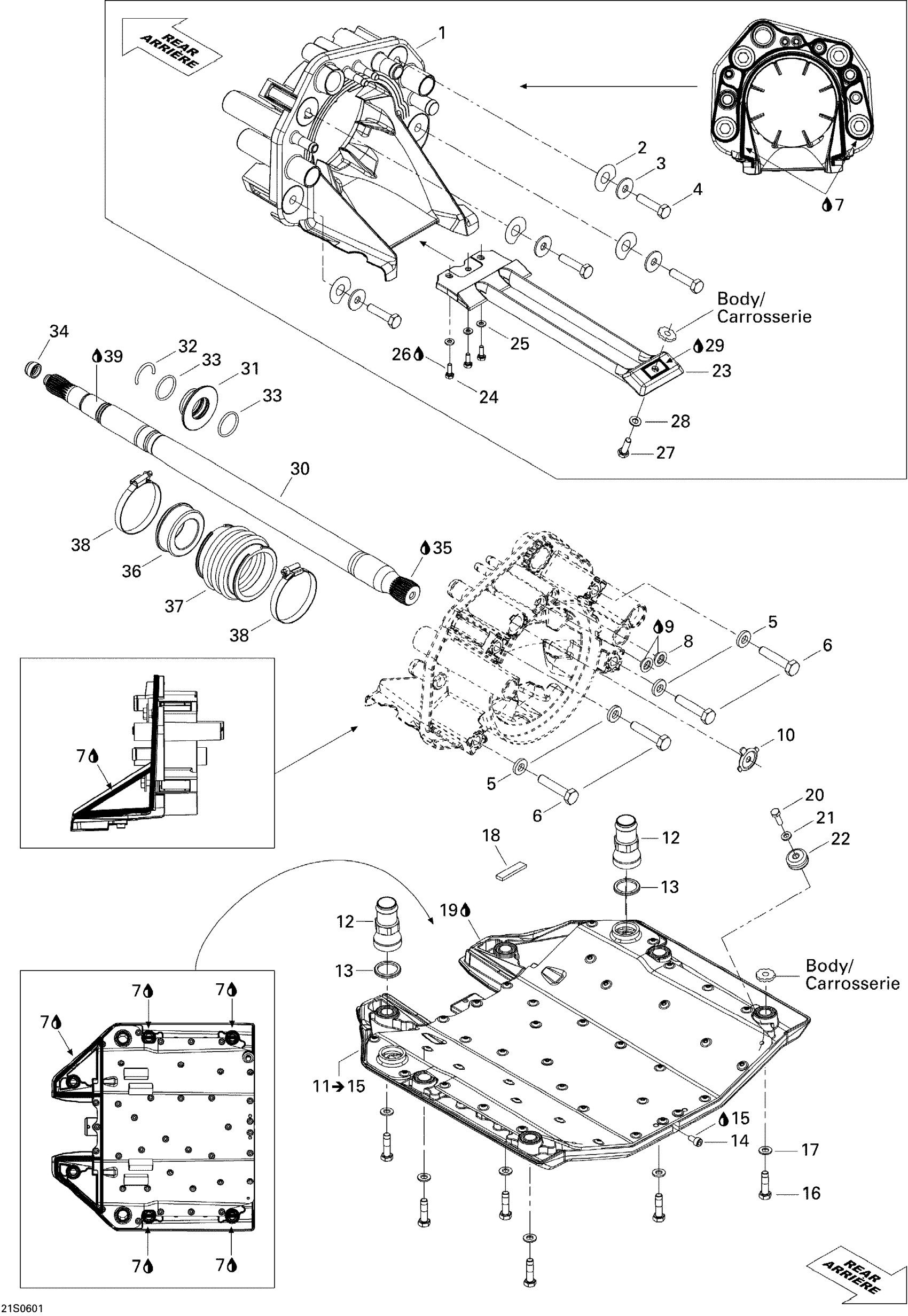

Sea-doo RXP, 2006 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT ASS'Y - Call your local BRP dealership

271001546

Unavailable

2

Shim 0.3 mm

272000053

$9.21

3

Flat Washer 10 mm, Stainless

234002600

$2.12

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.54

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

8

Watertight Seal

293250084

$6.67

9

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

10

Reducer This part replaces 291001887.

291004649

$14.43

11

Riding Plate Ass'y | Includes 14 à 18

271001535

Unavailable

12

Straight Plastic Fitting

293710111

$7.90

13

O-Ring

293300121

$7.09

14

Socket Drain Plug M6 X 12

250500005

$13.48

15

Was 293800013 Loctite 56765

219704454

$63.40

16

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.36

17

Stainless, Flat Washer 8 mm

234081600

$0.52

18

Gasket, Neoprene 2000Mm Long

219704476

$14.51

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

21

Stainless Flat Washer M6

234061600

$0.28

22

Anode Zinc

271001813

$15.64

23

Pump Grate

271001476

Unavailable

24

Hex. Screw M6 X 16

207161660

$1.40

25

Stainless Flat Washer M6

234061600

$0.28

26

Loctite 271, 10 ml

293800005

$23.85

27

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

28

Stainless, Flat Washer 8 mm

234081600

$0.52

29

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

30

Drive Shaft

271001601

$305.19

31

Carbon Ring Kit | Includes 280b to 280b4

295501204

$76.09

32

C-Clip

271001577

$3.07

33

O-Ring

293300107

$0.96

34

Drive Shaft Plug

272000173

$8.06

35

Synthetic Grease, 400 G

293550010

Unavailable

36

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

37

Bellow This part replaces 271001422.

271001933

$21.61

38

Norma Clamp

293650079

$10.21

39

Not Available As Spare Part - Friction Washer

Unavailable
