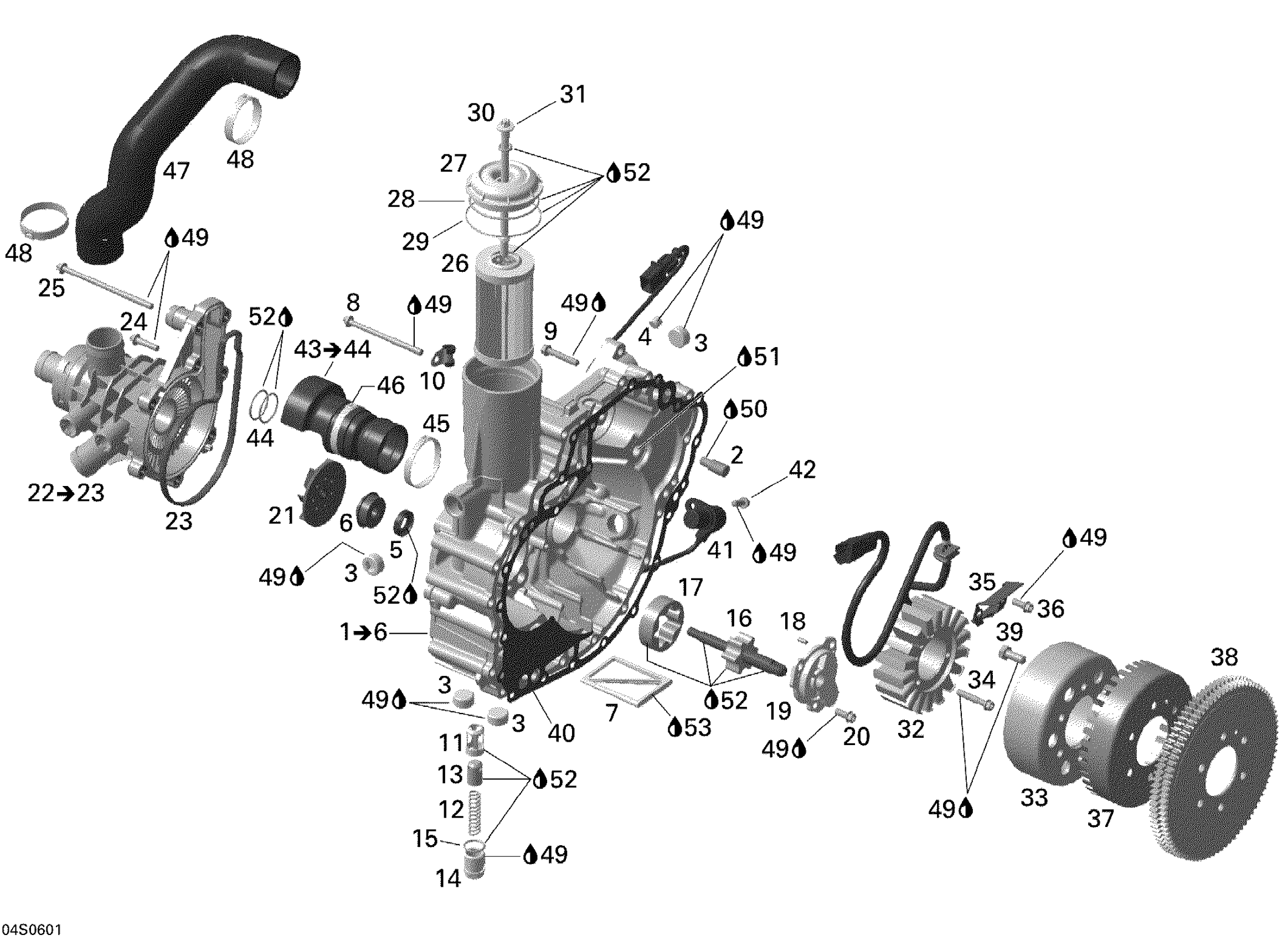

Sea-doo RXP, 2006 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/drive Cover Ass'y | Includes 1 to 6

420812622

Unavailable

2

SPRAY NOZZLE - Call your local BRP dealership

420856012

Unavailable

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Oil Seal

420650315

$11.65

6

Rotary Seal

420650371

$43.49

7

Oil Sieve

420956950

$16.86

8

Torx Flange Screw M6 X 85

420641228

$7.41

9

Torx Flange Screw M6 X 35

420440274

$1.01

10

Clamp

420853414

$18.49

11

Valve Seat Sleeve

420256606

$29.49

12

Compression Spring

420939410

Unavailable

13

Piston Valve

420256638

$22.99

14

Plug Screw M20 X 1.5

420641052

$37.99

15

O-Ring

420230890

$5.39

16

Pump Shaft Ass'y

420837472

$56.99

17

Oil Pump Rotor 16 mm

420956675

$36.99

18

Needle Pin

420929070

$1.90

19

Oil Pump Cover

420811591

$37.99

20

Torx Flange Screw M6 X 16

420641048

$2.96

21

Impeller

420922801

$17.53

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

24

Torx Flange Screw M6 X 25

420641238

$3.27

25

Torx Flange Screw M6 X 105

420641338

$7.41

26

Oil Filter

420956741

$13.77

27

Oil Filter Cover

420610329

$33.99

28

O-Ring

420850500

$3.17

29

O-Ring

420230923

$3.17

30

Oil Filter Screw Kit

295501207

$39.99

31

O-Ring

420950860

$3.91

32

Stator Plate This part replaces 420889721.

420889726

$319.49

33

Magneto Flywheel

420296900

$461.99

34

Torx Flange Screw M6 X 35

420440274

$1.01

35

Retaining Plate

420926300

$16.37

36

Torx Flange Screw M6 X 16

420641048

$2.96

37

Trigger Wheel

420966851

$18.49

38

Starter Double Gear 87/86T

420834871

$319.99

39

Hex Screw

295501162

$15.28

40

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

41

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

42

Torx Flange Screw M6 X 16

420641048

$2.96

43

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

44

O-Ring

420631612

$4.33

45

Gear Clamp

420851653

$7.41

46

Gear Clamp 46.8-50.0MM

420853023

$7.41

47

Formed Hose

420922822

$66.49

48

Oetiker Clamp

420851687

$11.65

49

Loctite 243, 10 ml

293800060

$21.49

50

Sealant Loctite 648

219703000

$45.99

51

Dow Corning 111, 150 g

413707000

$59.99

52

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

53

Loctite 5910, 300 ml

293800081

$57.99
