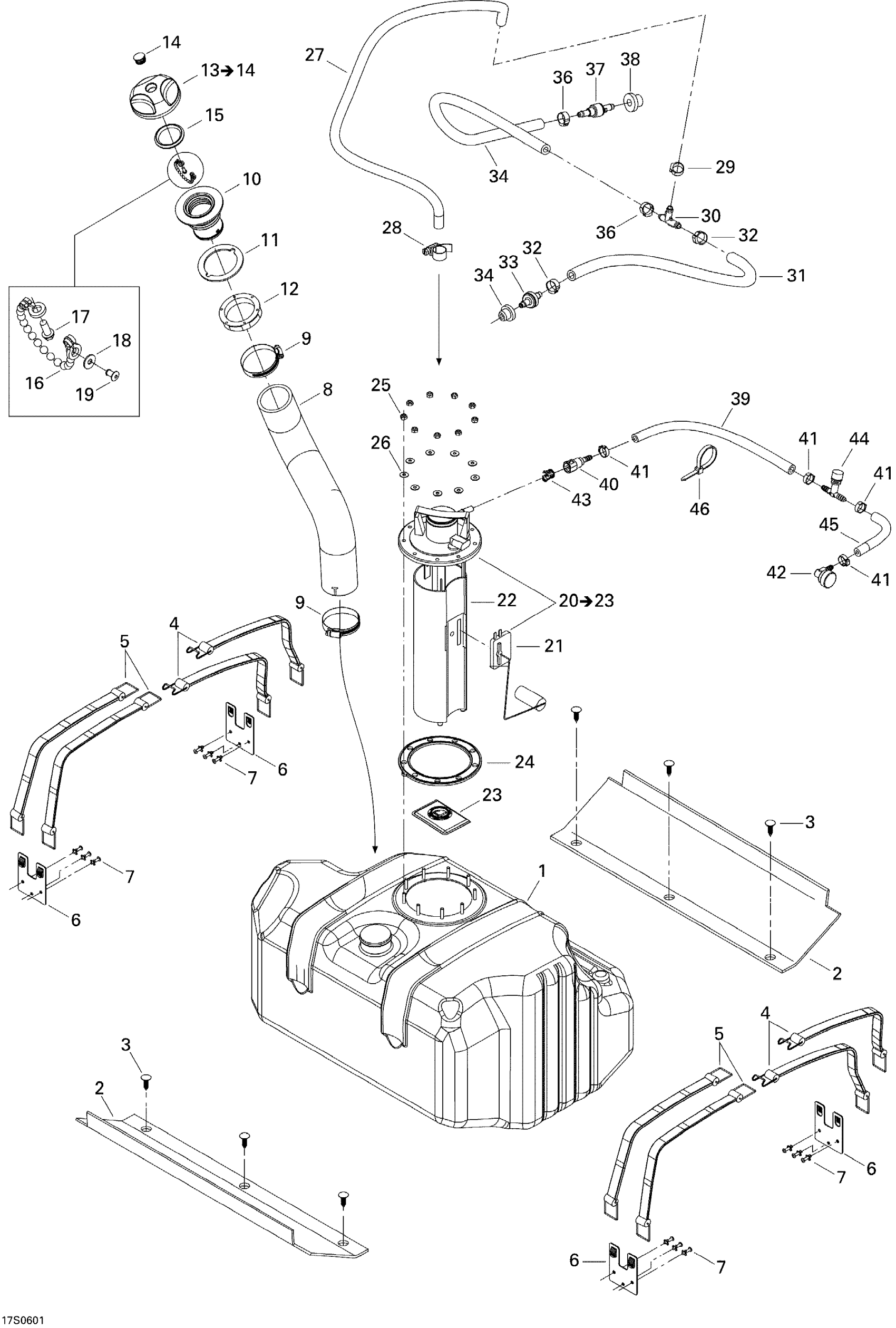

Sea-doo RXP, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500675

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730011

$0.99

4

Fuel Tank Strap

293850093

$21.99

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

7

Pop Rivet 3/16"

293150043

$2.09

8

FUEL FILLER NECK HOSE - Call your local BRP dealership

275500785

Unavailable

9

Tridon Clamp

293650023

$13.49

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$14.82

12

Filler Neck Nut, Fuel

211100012

$14.22

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

14

Black, Snap Cap

293000034

$9.39

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Flat Washer M3, Stainless

234032600

$0.55

18

Pop Rivet 1/8"

390407900

$1.49

19

Screw K40 X 10

241140060

$1.48

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600056

Unavailable

21

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Fuel Filter, Bosch

219700368

$39.99

24

Gasket

293250088

$14.99

25

Elastic Stop Nut 5 mm

232551200

$1.47

26

Flat Washer 5 mm, Stainless

234052600

$0.77

27

Was 275500549 Hose 1/4"

219704357

$194.99

28

Tridon Gear Clamp

293650170

$1.99

29

Oetiker Gear Clamp

293650025

$3.09

30

Y-Fitting

293710059

$9.69

31

Was 275500549 Hose 1/4"

219704357

$194.99

32

Oetiker Gear Clamp

293650025

$3.09

33

Check Valve

275500398

$10.99

34

Grommet

293720029

$1.59

35

Was 275500549 Hose 1/4"

219704357

$194.99

36

Oetiker Gear Clamp

293650025

$3.09

37

Check Valve

275500505

$31.99

38

Grommet

293720029

$1.59

39

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

40

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

41

Oetiker Clamp

293650011

$3.09

42

Elbow Fitting 90°

293710105

$14.22

43

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

44

Bleed Valve

293710112

Unavailable

45

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

46

Tie-Rap 180 mm

414115200

$0.11
