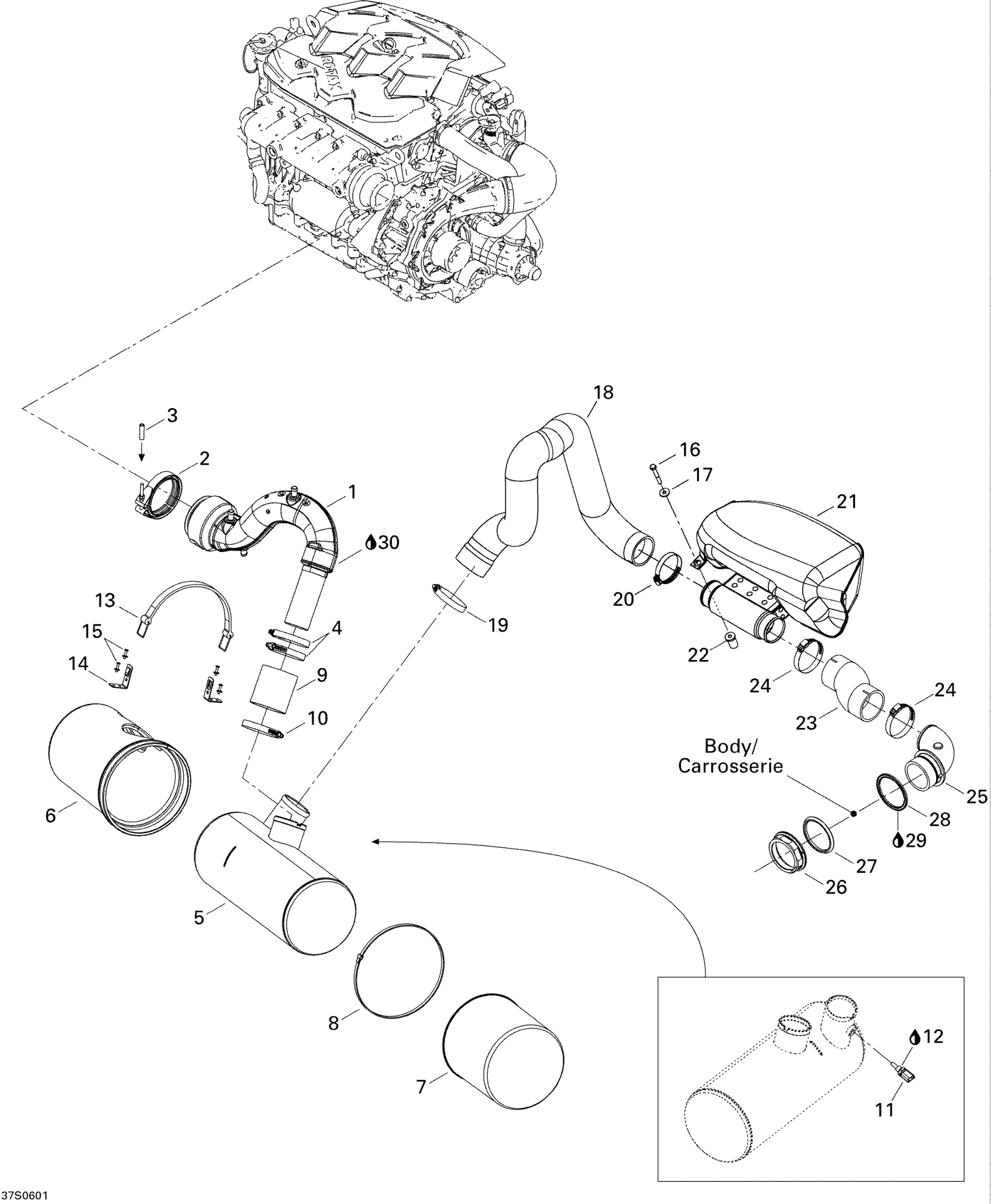

Sea-doo RXP, 2006 01- Exhaust System Diagram
#
Description
Price
1
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
2
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
3
Polyurethane Hose 10000Mm Long
219704410
$56.99
4
Tridon Clamp
293650179
$11.49
5
MUFFLER_EXHAUST - Call your local BRP dealership
274001095
Unavailable
6
Front Muffler Cover
274001008
Unavailable
7
REAR MUFFLER COVER - Call your local BRP dealership
274000984
Unavailable
8
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
9
Exhaust Hose
274001302
$35.99
10
Tridon Clamp
293650179
$11.49
11
Temperature Sensor
278002895
$39.99
12
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
13
Fuel Tank Strap
293850036
$18.99
14
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
15
Pop Rivet 3/16"
293150043
$2.09
16
Hex. Screw M8 X 40, Scotch Grip
207284060
$2.24
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
FRONT EXHAUST HOSE - Call your local BRP dealership
274000987
Unavailable
19
Tridon Clamp
293650179
$11.49
20
Tridon Clamp
293650179
$11.49
21
RH Resonator
274001045
$217.49
22
BUSHING - Call your local BRP dealership
278001940
Unavailable
23
Rear Exhaust Hose This part replaces 274001427.
274001710
$47.49
24
Tridon Clamp
293650064
$8.29
25
EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC
274000542
Unavailable
26
Nut 72 mm
274000224
$16.34
27
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
28
GASKET - Call your local BRP dealership
293250041
Unavailable
29
Silicone Sealant 51388, 300 ml
296000309
$36.99
30
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
