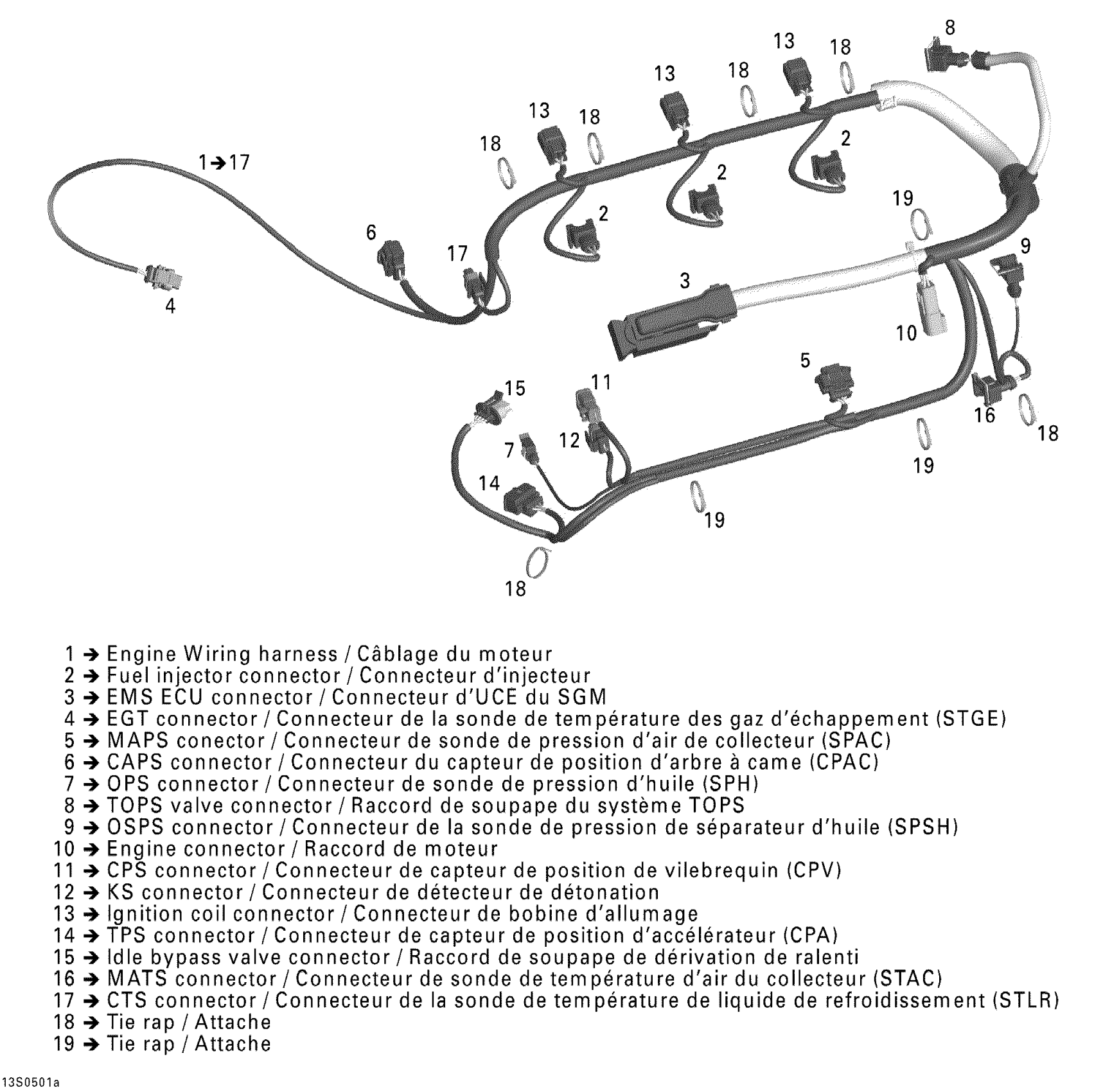

Sea-doo RXP, 2005 Engine Harness Diagram

#

Description
Price

1

Engine Wiring Harness Ass'y | Includes 1 to 17

420664951

$709.20

2

Male Connector, 2 Circuits

278001003

$44.58

3

ECM Connector

420664450

$26.89

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Housing Connector, 3 Circuits

278001829

$17.52

6

Housing Connector, 3 Circuits

278001830

$34.58

7

Male Housing, 1 Circuit

278001012

$12.65

8

Female Terminal Housing, 2 Circuits

415128500

$6.31

9

Female Terminal Housing, 2 Circuits

415128500

$6.31

10

Female Housing, 4 Circuits

278000635

$14.02

11

Connector, Magneto

278001831

Unavailable

12

Male Housing, 2 Circuits

278001005

$15.57

13

CONNECTOR 3 POSITIONS - Call your local BRP dealership

420964100

$10.80

14

Male Housing, 3 Circuits

278000997

$15.57

15

Connector, Idle Bypass Valve

278001833

Unavailable

16

Female Terminal Housing, 2 Circuits

415128500

$6.31

17

Male Housing, 2 Circuits

278001005

$15.57

18

Tie Rap

420866714

$1.56

19

Tie-Rap

420866716

$1.56
