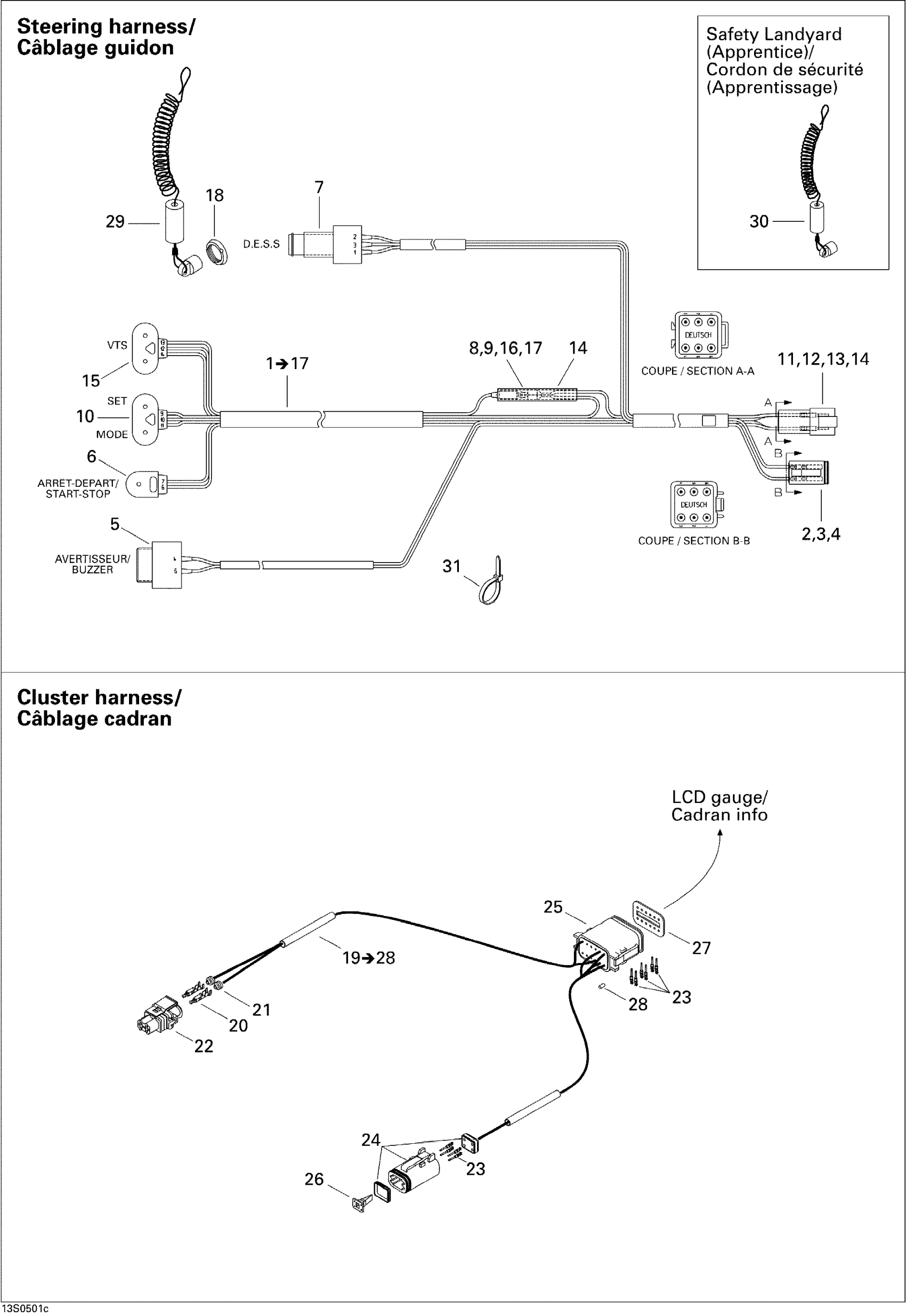

Sea-doo RXP, 2005 10- Electrical Harness 3 Diagram
#
Description
Price
1
STEERING HARNESS - Call your local BRP dealership | Includes 1 to 17
278001700
Unavailable
2
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
3
Female Terminal
278000632
$2.09
4
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
5
BUZZER - Call your local BRP dealership
278001586
Unavailable
6
START/STOP SWITCH - Call your local BRP dealership
278001733
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Terminal
278000230
$4.39
9
Insulated Sheath
278001008
$3.28
10
Mode/Set Switch
278001739
Unavailable
11
Male Terminal Housing, 6 Circuits
710001539
$19.99
12
Male Terminal
278000631
$4.39
13
Female Lock, 6 Circuits
278000735
$3.19
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
VTS SWITCH - Call your local BRP dealership | SERV
278002156
Unavailable
16
Female Terminal | DS 650 X
278001009
$3.19
17
Insulated Sheath
278000770
$7.90
18
Safety Nut (DESS Switch)
278002963
$3.28
19
Cluster Harness Ass'y | Includes 19 to 28
278001600
Unavailable
20
Female Terminal
278000998
$4.39
21
Wire Seal
278000999
$3.19
22
Male Housing, 2 Circuits
278001005
$19.49
23
Female Terminal
278000632
$2.09
24
Male Connector, 4 Circuits | CE
278000739
$19.49
25
Female Terminal Housing, 12 Circuits
278002377
$49.99
26
Male Lock, 4 Circuits | CE
278000738
$3.09
27
Female Lock, 12 Circuits
409015700
$4.55
28
Sealing Cap
293000052
$3.19
29
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
30
Safety Lanyard, Learning Key
278002203
$56.99
31
Tie Wrap 142 mm
293750002
$1.25
