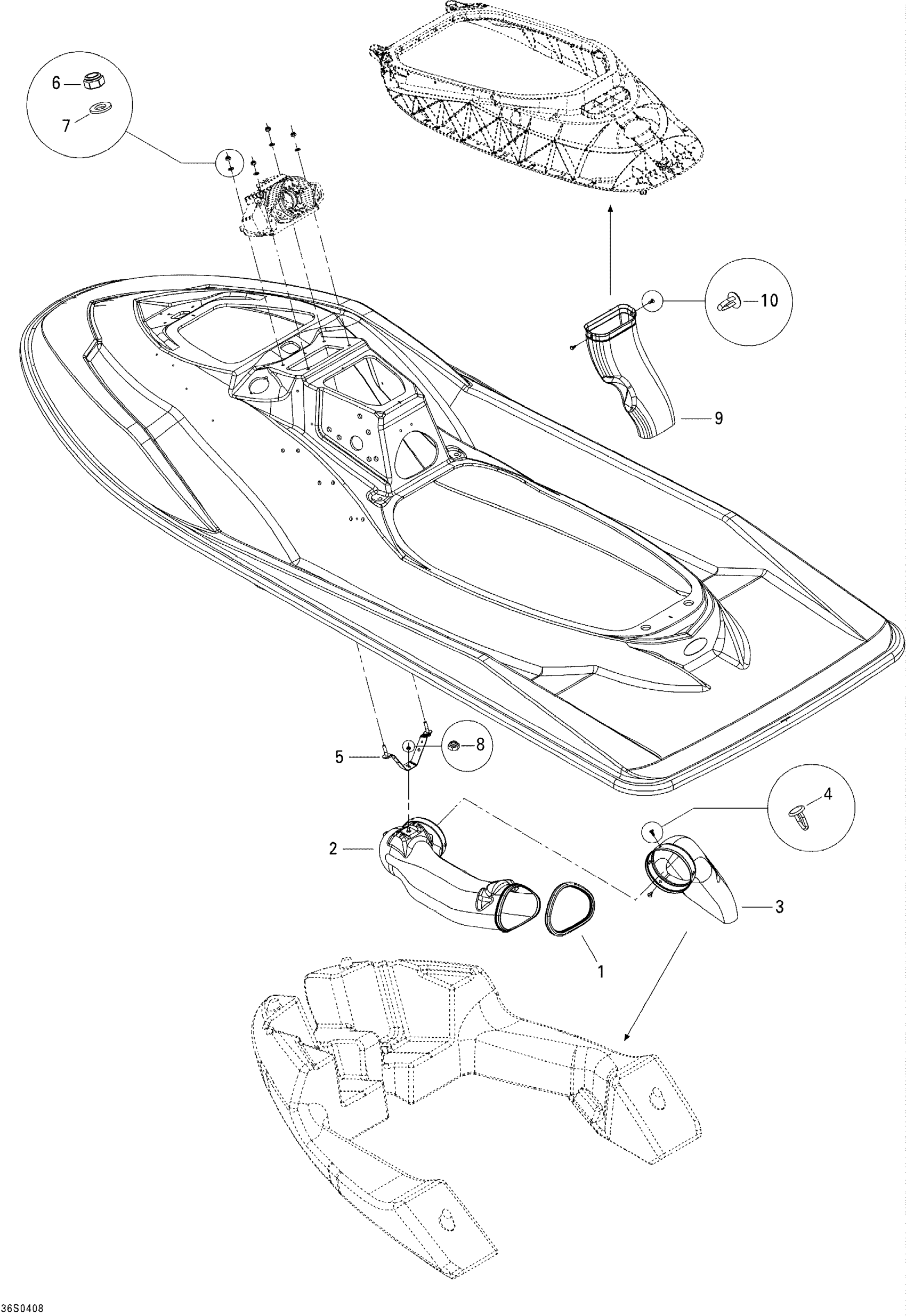

Sea-doo RXP, 2005 Ventilation Diagram

#

Description

Price

1

FRONT COLLECTOR JOINT - Call your local BRP dealership

291001933

Unavailable

2

FRONT COLLECTOR - Call your local BRP dealership

291001934

Unavailable

3

Vent Hose

291001935

Unavailable

4

Dart, Fastex

293730024

$1.49

5

Collector Support

291001614

Unavailable

6

Hex. Elastic Nut M8

232581600

$1.49

7

Stainless, Flat Washer 8 mm

234081600

$1.49

8

Hex. Elastic Stop Nut M6

232561600

$1.49

9

VENTILATION DUCT - Call your local BRP dealership

291001936

Unavailable

10

Dart, Fastex

293730024

$1.49
