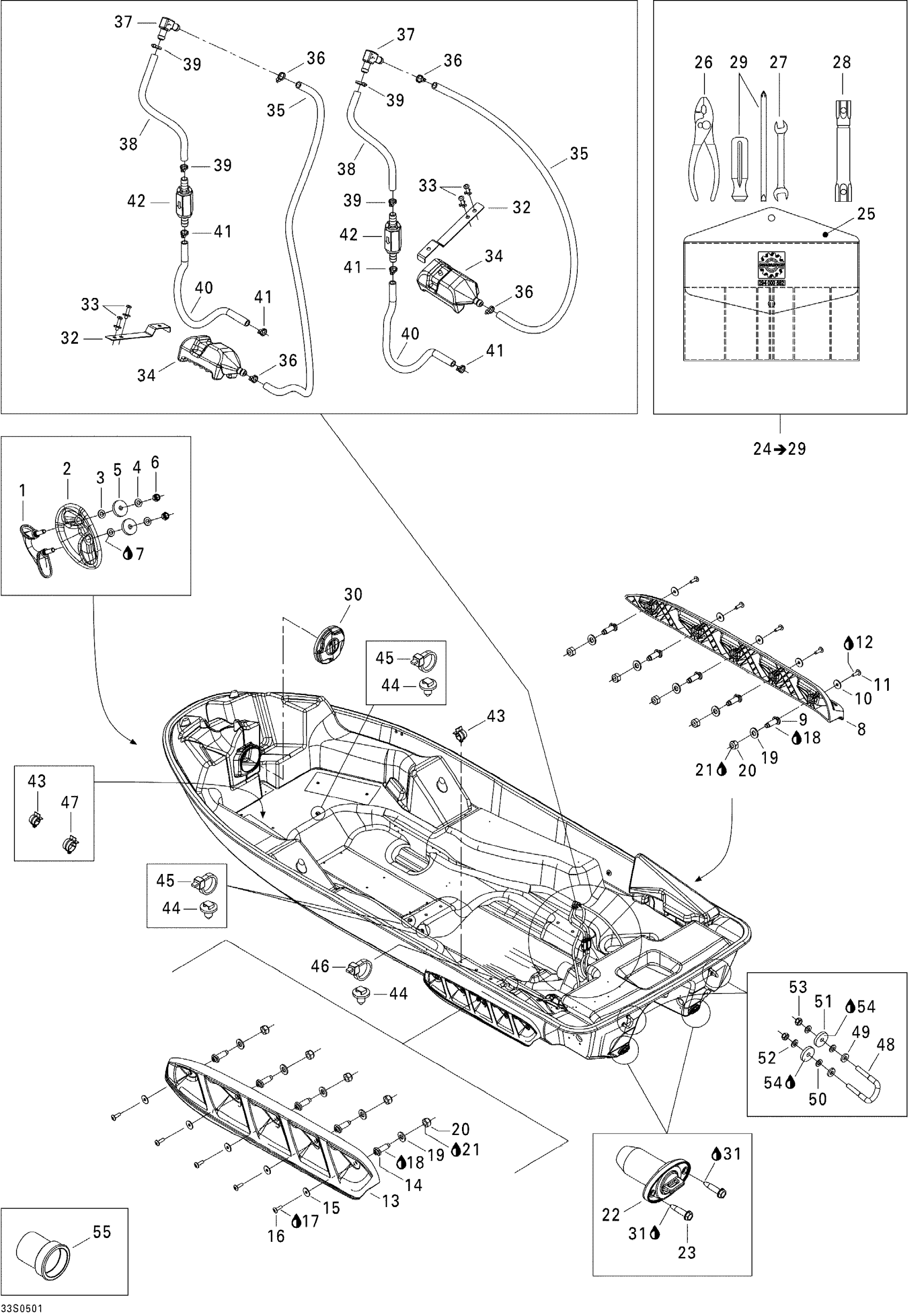

Sea-doo RXP, 2005 09- Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
2
Black Shell
292001837
$20.99
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8
232581600
$1.48
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Sponson
292001878
$93.99
9
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
10
Flat Washer M6.6 X 22
250200022
$2.72
11
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
12
Loctite 243, 10 ml
293800060
$21.49
13
LH Sponson
292001877
$93.99
14
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
15
Flat Washer M6.6 X 22
250200022
$2.72
16
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
17
Loctite 243, 10 ml
293800060
$21.49
18
Silicone Sealant 51388, 300 ml
296000309
$36.99
19
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
20
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Drain Plug
292001252
$36.99
23
Hex. Screw 10-14 X 7/8”
211000023
$3.59
24
Tool Kit | Includes 52 to 57
294000682
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
28
Socket Wrench
529035731
Unavailable
29
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
30
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
31
Silicone Sealant 51388, 300 ml
296000309
$36.99
32
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
33
Avdel Rivet 3/16"
293150037
$0.56
34
Bailer Screen
292000688
Unavailable
35
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
36
Tie Wrap 94 mm | 4X4
293750001
$1.03
37
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
38
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
39
Tie Wrap 94 mm | 4X4
293750001
$1.03
40
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Check Valve
276000093
Unavailable
43
Cable Retainer
275500527
$2.68
44
Mount Dart
293730040
$1.04
45
Tie-Rap 180 mm
414115200
$0.11
46
Tie Wrap 368 mm
293750008
$1.04
47
Retainer
275500590
$9.69
48
U-Clamp
292000933
$59.49
49
Flat Washer M8.5 x 18
293050001
$3.07
50
Flat Washer 8 mm, Nylon
234081100
$1.39
51
Rubber Washer
293830037
$2.68
52
Flat Washer 8 mm, Stainless
250200175
$3.06
53
Hex. Elastic Nut M8
232581600
$1.48
54
Silicone Sealant 51388, 300 ml
296000309
$36.99
55
HULL INSERT, 50 MM - Call your local BRP dealership
292000974
Unavailable
