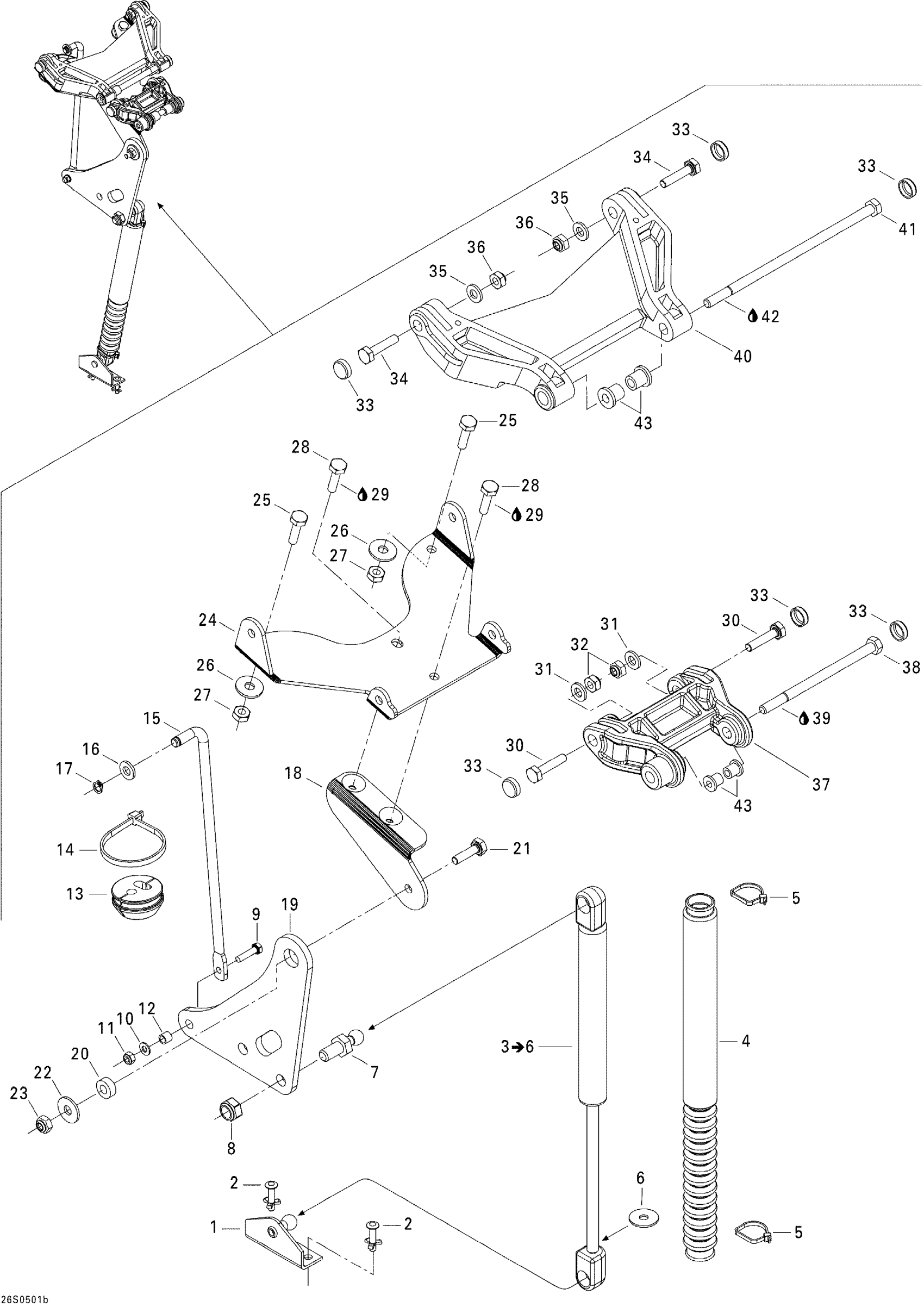

Sea-doo RXP, 2005 09- Front Cover 2 Diagram
#
1
SHOCK SUPPORT - Call your local BRP dealership
291002124
Unavailable
2
Avdel Rivet 3/16"
293150037
$0.56
3
Gas Shock Ass'y | Includes 3 to 6
269501167
$79.99
4
BELLOW - Call your local BRP dealership
269501168
Unavailable
5
Tie Wrap 94 mm | 4X4
293750001
$1.03
6
Flat Washer, Aluminum
250200033
Unavailable
7
Ball Head Stud
250300016
$14.81
8
Hex. Elastic Nut M8
232581600
$1.48
9
Hex. Screw M4 X 16 | Europe
207141660
$1.47
10
Flat Washer 4 mm, Stainless
234041600
$1.15
11
Elastic Stop Nut M4
232541600
$1.15
12
SPACER - Call your local BRP dealership
269501130
Unavailable
13
CABLE GROMMET - Call your local BRP dealership | North America
293720070
Unavailable
14
Tie-Rap 180 mm
414115200
$0.11
15
ROD - Call your local BRP dealership
269500842
Unavailable
16
Stainless Flat Washer M6
234061600
$0.33
17
CIRCLIP 6 MM - Call your local BRP dealership | North America
293370005
Unavailable
18
SUPPORT LEVER - Call your local BRP dealership
269501742
Unavailable
19
LEVER - Call your local BRP dealership
269501576
Unavailable
20
SPACER - Call your local BRP dealership
269501172
Unavailable
21
Hex. Forming Screw M6 X 20
207162060
$1.29
22
Flat Washer M6, Stainless
234062600
$0.77
23
Hex. Elastic Stop Nut M6
232561600
$1.15
24
PIVOT SUPPORT - Call your local BRP dealership
269500703
Unavailable
25
Hex. Forming Screw M6 X 20
207162060
$1.29
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Elastic Stop Nut M6
232561600
$1.15
28
Hex. Forming Screw M6 X 20
207162060
$1.29
29
Loctite 243, 10 ml
293800060
$21.49
30
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
Hex. Elastic Stop Nut M6
232561600
$1.15
33
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
34
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
35
Stainless Flat Washer M6
234061600
$0.33
36
Hex. Elastic Stop Nut M6
232561600
$1.15
37
FRONT ARM - Call your local BRP dealership
269500704
Unavailable
38
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
39
Loctite 243, 10 ml
293800060
$21.49
40
REAR ARM - Call your local BRP dealership
269500705
Unavailable
41
Hex. Screw M6 X 100
230060060
$7.41
42
Loctite 243, 10 ml
293800060
$21.49
43
Sleeve
269500706
$4.65
