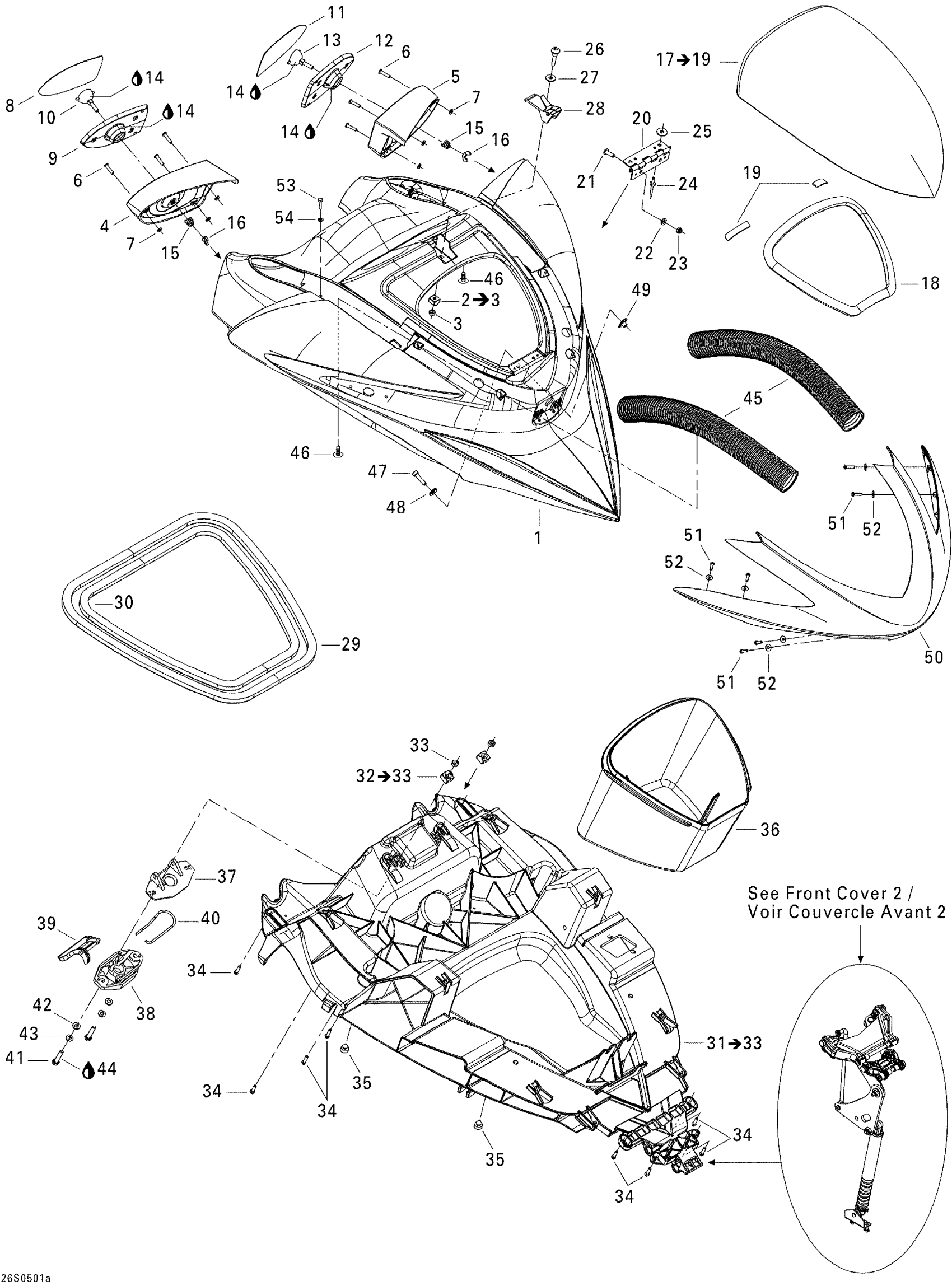

Sea-doo RXP, 2005 Front Cover 1 Diagram

#

Description
Price

1

Upper Storage Cover, Viper Red | Viper Red

269501367

Unavailable

1

Upper Storage Cover, Apple Green | Apple Green

269501382

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

3

Elastic Stop Nut M6, Brass

232561200

$4.23

4

RH Mirror Housing, Viper Red | Viper Red, B-270

269501368

Unavailable

4

RH Mirror Housing, Apple Green | Apple Green

269501204

Unavailable

5

LH MIRROR HOUSING, VIPER RED - Call your local BRP dealership | Viper Red, B-270

269501369

Unavailable

5

LH MIRROR HOUSING, APPLE GREEN - Call your local BRP dealership | Apple Green

269501205

Unavailable

6

Pop Rivet 3/16"

293150005

$0.52

7

Flat Washer, Emhart

213200016

$0.72

8

RH Mirror

269500687

Unavailable

9

Frame Mirror

269500697

Unavailable

10

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

11

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

12

Frame Mirror

269500697

Unavailable

13

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Mirror Spring

269500453

$10.49

16

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

17

Access Cover Ass'y | Includes 17 to 19, Viper Red

269501370

Unavailable

17

Access Cover Ass'y | Includes 17 to 19, Apple Green

269501006

Unavailable

18

Gasket, Neoprene 2000Mm Long

219704476

$15.36

19

Seal Tray 1000Mm Long

219704368

$13.99

20

HINGE - Call your local BRP dealership

269500338

Unavailable

21

Socket Head Screw M5 X 16

205451660

$1.15

22

Flat Washer | XT

211200035

$0.55

23

Elastic Stop Nut 5 mm

232551200

$1.47

24

Pop Rivet 3/16"

204000081

$1.49

25

Flat Washer 5 mm, Stainless

234052600

$0.77

26

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.77

28

Latch

269501487

$16.99

29

Was 293200017 Neoprene Seal

219704365

$149.99

30

Was 293200017 Neoprene Seal

219704365

$149.99

31

LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30

269501379

Unavailable

32

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

33

Hex. Nut M6

232061600

$1.15

34

Hex. Flange Screw K40 X 16

241141660

$1.48

35

Rubber Bumper

293830005

$8.09

36

STORAGE BOX - Call your local BRP dealership

269501133

Unavailable

37

Latch Ass'y

269700109

$24.99

38

Latch Ass'y

269700109

$24.99

39

Latch Ass'y

269700109

$24.99

40

Latch Spring

269700017

$9.19

41

Hex. Screw M6 X 30

207063060

$1.89

42

Stainless Flat Washer M6

234061600

$0.33

43

Lock Washer Helical M6

234161601

$1.15

44

Loctite 243, 10 ml

293800060

$21.49

45

VENTILALTION HOSE (BLACK) - Call your local BRP dealership

291002489

Unavailable

46

Black, Dart

293730011

$0.99

47

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

48

Flat Washer M6, Stainless

234062600

$0.77

49

Nut Welded, M6

293100003

$9.12

50

Front Grille

269501238

$154.99

51

Hex. Flange Screw K40 X 16

241141660

$1.48

52

Flat Washer 4 mm, Stainless

234042600

$1.15

53

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

54

Flat Washer M6, Stainless

234062600

$0.77
