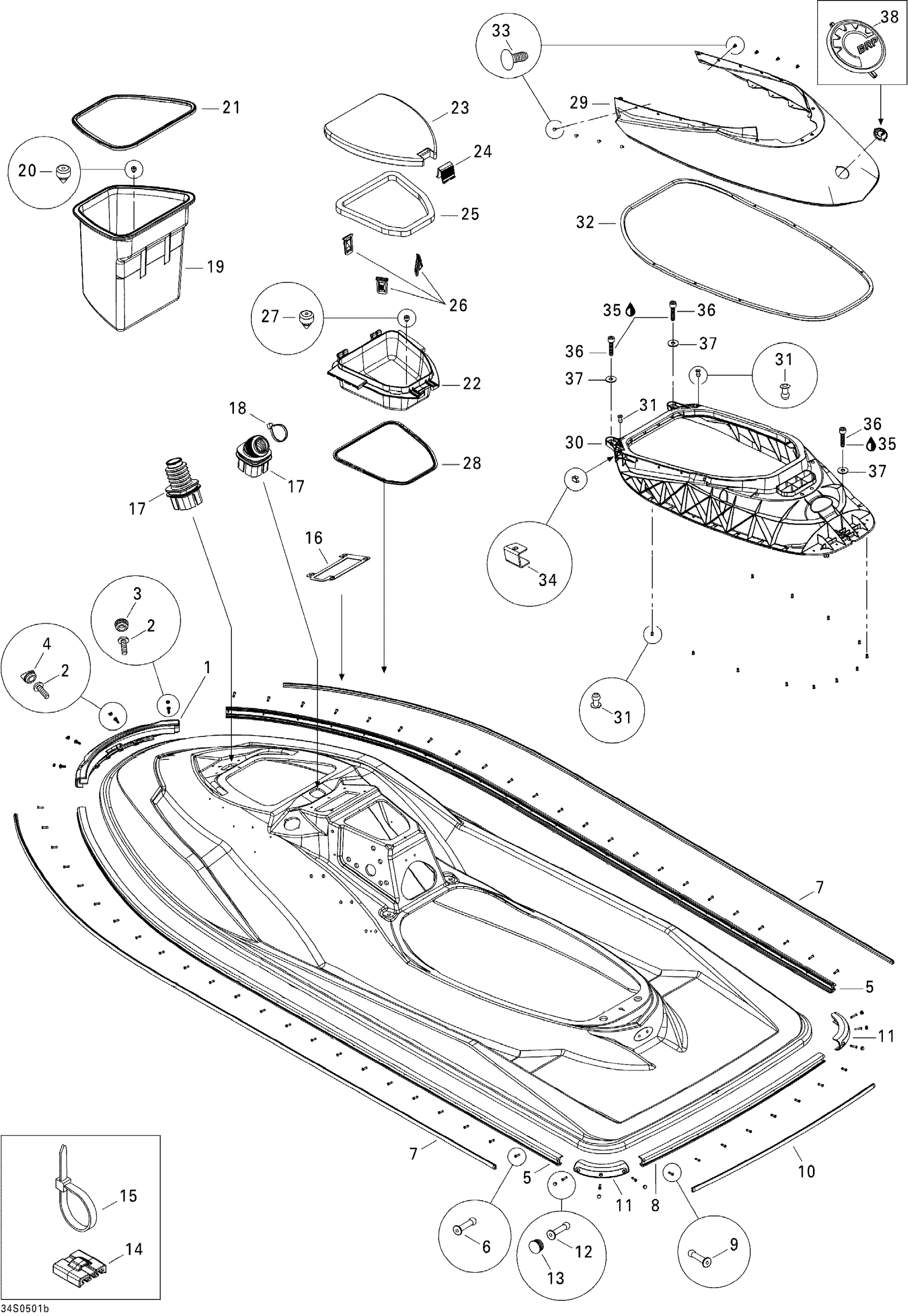

Sea-doo RXP, 2005 Body 2 Diagram

#

Description
Price

1

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

2

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

$3.91

3

Bumper Plug, Black

291001519

$4.28

4

Bumper Plug, Black

291001040

Unavailable

5

Black, Side Bumper

204050270

$175.35

6

Pop Rivet 3/16"

293150005

$0.40

7

Side Bumper Trim, Apple Green

291001849

Unavailable

7

SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership | Viper Red

291002110

Unavailable

8

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

9

Pop Rivet 3/16"

293150005

$0.40

10

Rear Bumper Trim, Apple Green

291001850

Unavailable

10

Rear Bumper Trim, Viper Red | Viper Red

291002111

Unavailable

11

Bumper Corner

291002244

$38.32

12

Pop Rivet 3/16"

293150013

$1.11

13

Bumper Plug, Black

291000339

$2.34

14

Tie-Rap Mount

293750025

$1.15

15

Tie-Rap 180 mm

414115200

$0.09

16

GASKET - Call your local BRP dealership

293250171

$13.83

17

GROMMET - Call your local BRP dealership

293720042

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

20

Rubber Bumper

293830005

$5.33

21

Seal Tray 1000Mm Long

219704368

$12.91

22

GLOVE BOX - Call your local BRP dealership

269500717

Unavailable

23

GLOVE BOX DOOR - Call your local BRP dealership

269500928

$72.28

24

LATCH - Call your local BRP dealership

269500719

Unavailable

25

GASKET - Call your local BRP dealership

293250100

$14.75

26

RETAINER LATCH - Call your local BRP dealership

269500820

$13.37

27

Rubber Bumper

293830005

$5.33

28

Was 293250099 Gasket

219704377

$7.37

29

UPPER ENGINE COVER - Call your local BRP dealership

291002618

Unavailable

30

LOWER ENGINE COVER - Call your local BRP dealership

291002542

Unavailable

31

Pop Rivet 3/16"

293150088

$0.91

32

Seal Tray 1000Mm Long

219704368

$12.91

33

Black, Dart

293730016

$6.94

34

INSERT - Call your local BRP dealership

293450259

$10.00

35

Loctite 243, 10 ml

293800060

$20.77

36

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

$2.92

37

Flat Washer 8 mm, Stainless

234082600

$1.98

38

BUMPER PLUG - Call your local BRP dealership

291002226

Unavailable
