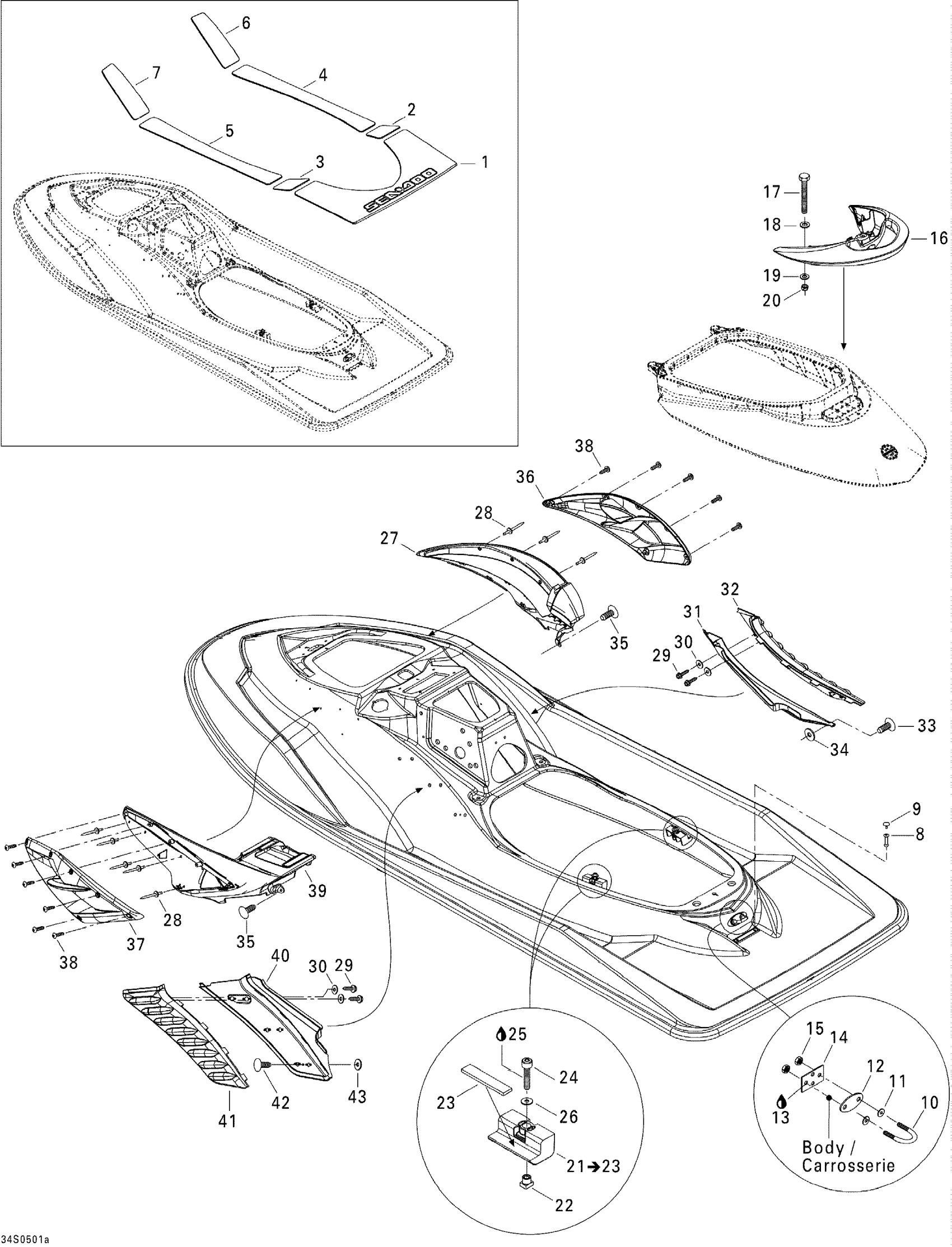

Sea-doo RXP, 2005 09- Body 1 Diagram
#
1
Rear Platform Carpet, Black
291002103
Unavailable
2
RH Rear Carpet, black
291002185
Unavailable
3
LH Rear Carpet, black
291002186
Unavailable
4
RH Center Carpet, black
291002187
Unavailable
5
LH Center Carpet, black
291002188
Unavailable
6
RH FRONT CARPET, BLACK - Call your local BRP dealership
291002189
Unavailable
7
LH Front Carpet, black
291002190
Unavailable
8
Rivet 1/8"
293150016
$0.40
9
Black, Snap Cap
293000014
$1.09
10
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
11
Flat Washer M8.5 x 18
293050001
$3.07
12
Black, Finition Plate
291001386
$10.99
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
15
Hex. Elastic Nut M8
232581600
$1.48
16
GRAB HANDLE, VIPER RED - Call your local BRP dealership | Viper Red
269001193
Unavailable
16
Grab Handle, Apple Green
269000740
Unavailable
17
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
18
Stainless, Flat Washer 8 mm
234081600
$0.55
19
Flat Washer 8 mm, Stainless
234082600
$2.43
20
Hex. Elastic Nut M8
232581600
$1.48
21
Link Bridge Ass'y
291001931
$26.99
22
Square Nut M8
211100033
$17.99
23
Pad
291001932
$10.99
24
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
RH Upper Moulding, Viper Red | Viper Red
291002104
Unavailable
27
RH Upper Moulding, Apple Green
291002117
Unavailable
28
Pop Rivet 3/16"
293150123
$4.29
29
Hex. Screw 10-14 X 7/8”
211000023
$3.59
30
Flat Washer, Stainless/Neoprene
211200055
$0.73
31
RH Moulding, Viper Red | Viper Red
291002107
Unavailable
31
RH Moulding, Apple Green
291001635
Unavailable
32
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
33
Black, Dart
293730006
$0.99
34
Rubber Washer 5 mm
250200024
$2.19
35
Black, Dart
293730006
$0.99
36
RH GRILL - Call your local BRP dealership
273000218
Unavailable
37
LH GRILL - Call your local BRP dealership
273000219
Unavailable
38
Allen Plastite Screw #12
250000099
$2.19
39
LH Upper Moulding, Viper Red | Viper Red
291002105
Unavailable
39
LH Upper Moulding, Apple Green
291002118
Unavailable
40
LH Moulding, Viper Red | Viper Red
291002109
Unavailable
40
LH Moulding, Apple Green
291001634
Unavailable
41
LH KNEE PAD, SILVER - Call your local BRP dealership
269001292
Unavailable
42
Black, Dart
293730006
$0.99
43
Rubber Washer 5 mm
250200024
$2.19
