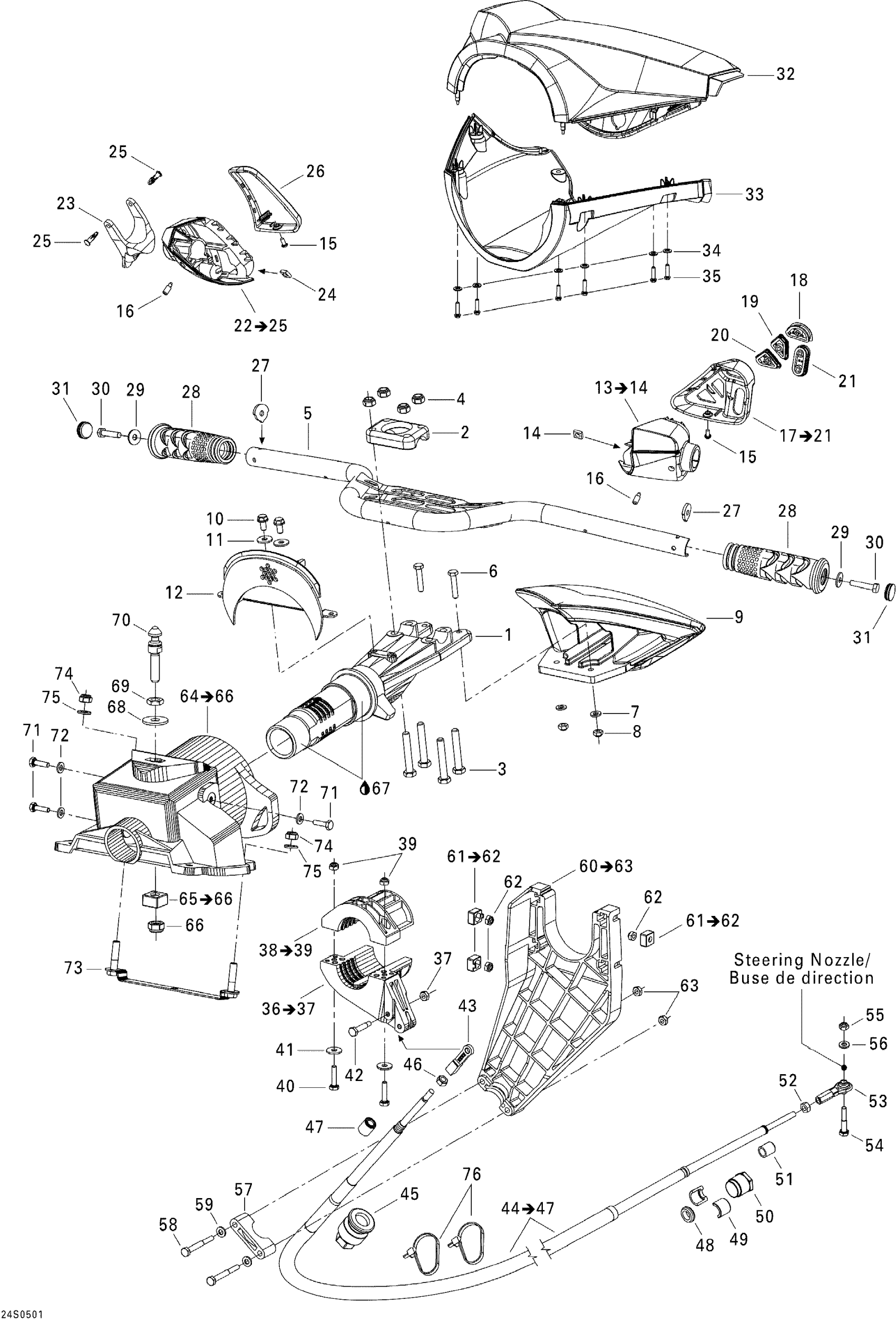

Sea-doo RXP, 2005 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
Handlebar
277001454
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
HANDLE PAD - Call your local BRP dealership | Apple Green, B-230
277001111
Unavailable
9
Handle Pad | Viper Red, B-267
277001345
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
$9.00
17
COVER HOUSING ASS'Y - Call your local BRP dealership | Includes 17 to 21
277001363
Unavailable
18
Stop Knob
278001713
$18.49
19
MODE KNOB - Call your local BRP dealership
278001714
Unavailable
20
SET KNOB - Call your local BRP dealership
278001715
Unavailable
21
VTS KNOB - Call your local BRP dealership
278002066
Unavailable
22
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
23
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
24
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
25
PIN - Call your local BRP dealership
277000381
Unavailable
26
HOUSING COVER - Call your local BRP dealership
277001355
Unavailable
27
Insert Grip Handle
277001863
$8.83
28
HANDLE GRIP - Call your local BRP dealership | Apple Green, B-230
277001161
Unavailable
28
Handle Grip | Viper Red, B-267
277001347
Unavailable
29
Flat Washer M6, Stainless
234062600
$0.77
30
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
31
Black, Cap
277000203
$9.39
32
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
33
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
34
Flat Washer M5, Stainless
234051600
$0.77
35
Hex. Flange Screw K40 X 16
241141660
$1.48
36
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
37
Hex. Elastic Stop Nut M6
232561600
$1.15
38
Arm Thrust | Includes 43 to 44
277000519
Unavailable
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Hex. Screw M6 X 25
207162560
$1.47
41
Flat Washer M6, Stainless
234062600
$0.77
42
Hex. Screw M6 X 30
211000081
$3.59
43
Ball Joint
277001180
$35.99
44
Steering Cable | Includes 44 to 47
277001327
Unavailable
45
Ajustment Knob
277000782
$22.99
46
Hex. Nut 1/4"-28
211100056
$0.69
47
Terminal Wiper
277000441
$11.99
48
Rubber Washer
293830063
$1.90
49
Half Ring
277001527
$10.37
50
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
51
Terminal Wiper
277000441
$11.99
52
Hex. Nut 1/4"-28
211100056
$0.69
53
Ball Joint
277000775
$51.99
54
Hex. Screw M6 X 35
207063560
$2.22
55
Hex. Elastic Stop Nut M6
232561600
$1.15
56
Stainless Flat Washer M6
234061600
$0.33
57
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
58
Hex. Screw M6 X 50
207065060
$2.22
59
Stainless Flat Washer M6
234061600
$0.33
60
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
61
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
62
Hex. Nut M6
232061600
$1.15
63
Hex. Elastic Stop Nut M6
232561600
$1.15
64
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
65
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
66
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
67
Synthetic Grease, 400 G
293550010
Unavailable
68
Flat Washer 10 mm, Stainless
234002600
$2.22
69
Hex. Jam Nut M10
232100600
$2.22
70
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
71
Hex. Forming Screw M6 X 20
207162060
$1.29
72
Stainless Flat Washer M6
234061600
$0.33
73
Steering Support
277001000
Unavailable
74
Hex. Elastic Nut M8
232581600
$1.48
75
Stainless, Flat Washer 8 mm
234081600
$0.55
76
Tie Wrap 368 mm
293750008
$1.04
